Manufacturer-published data
Core dimensions and capacities are taken directly from the new bilingual brochure.
All products
18-ton pure-electric cleaning vehicle
SLG5180GQXEVY
Published pure-electric municipal configuration
20
Overview
Published pure-electric municipal configuration
SLG5180GQXEVY is the published 18-ton pure-electric cleaning vehicle configuration in Shaolin Bus's 2026 bilingual brochure. Dimensions, capacity and powertrain data shown here are transcribed from the manufacturer table; final configuration and appearance are subject to the delivered vehicle.
01
Overall dimensions
9700 × 2550 × 3280 mm
02
Wheelbase
4500 mm
03
Chassis model
BYD1180C2BEVC2
04
Maximum gross weight
18000 kg
05
Rated load capacity
8370 kg
06
Maximum speed
89 km/h
07
Battery capacity
203 kWh
Highlights
Municipal operation
The body type, payload and energy storage define the published municipal-duty configuration.
Order-specific confirmation
Final equipment, homologation and appearance are confirmed for the destination market and purchase order.

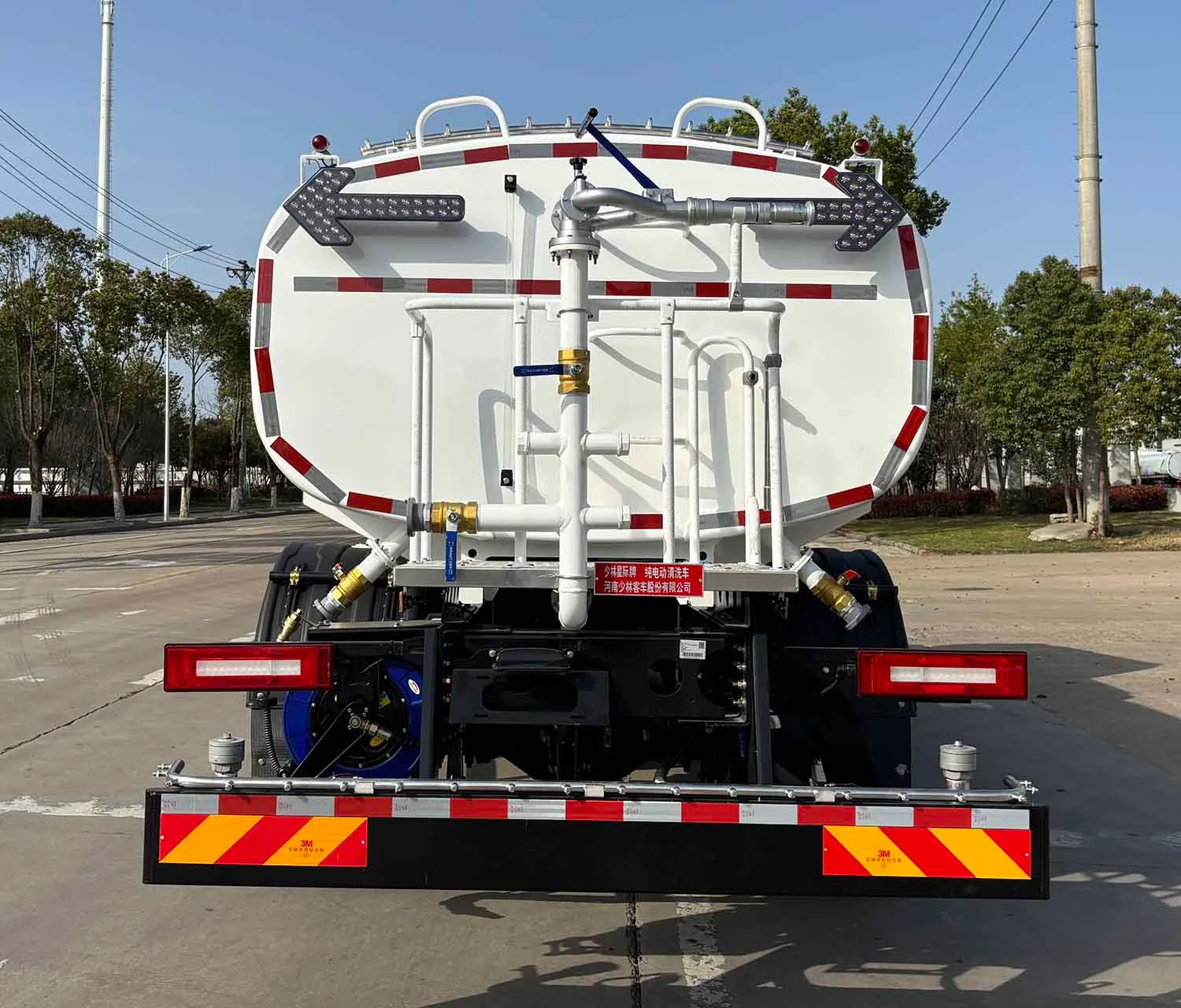

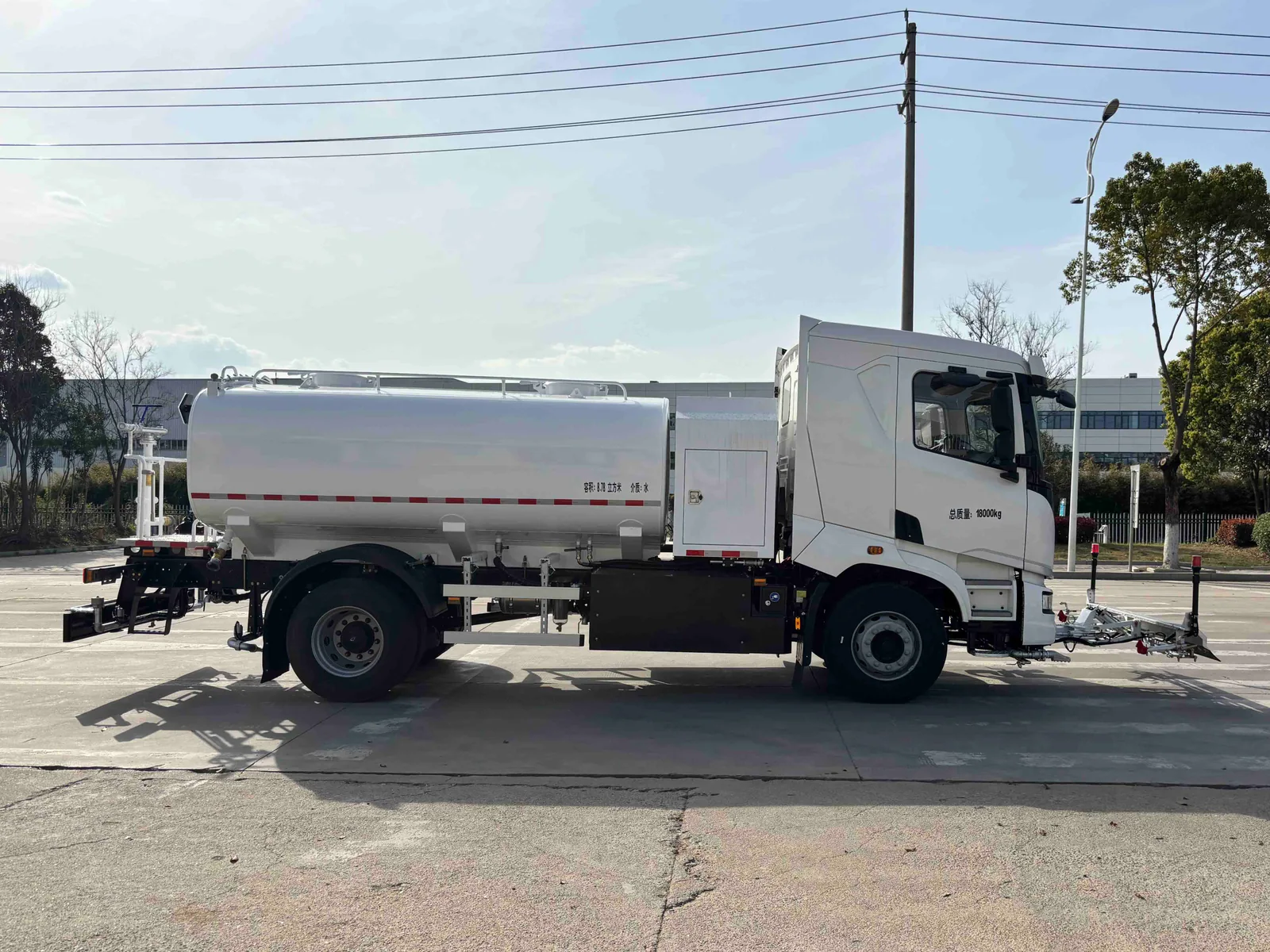

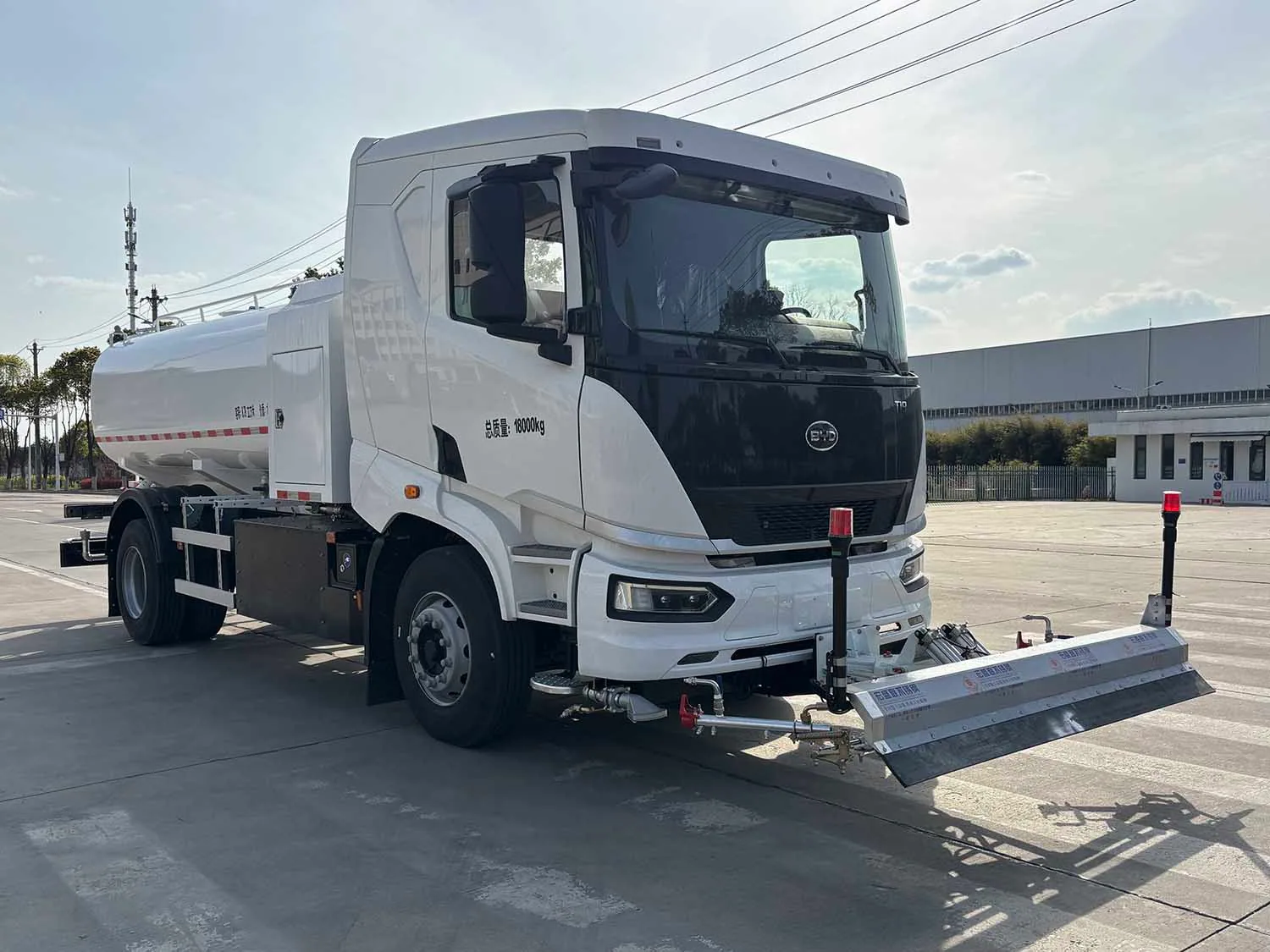

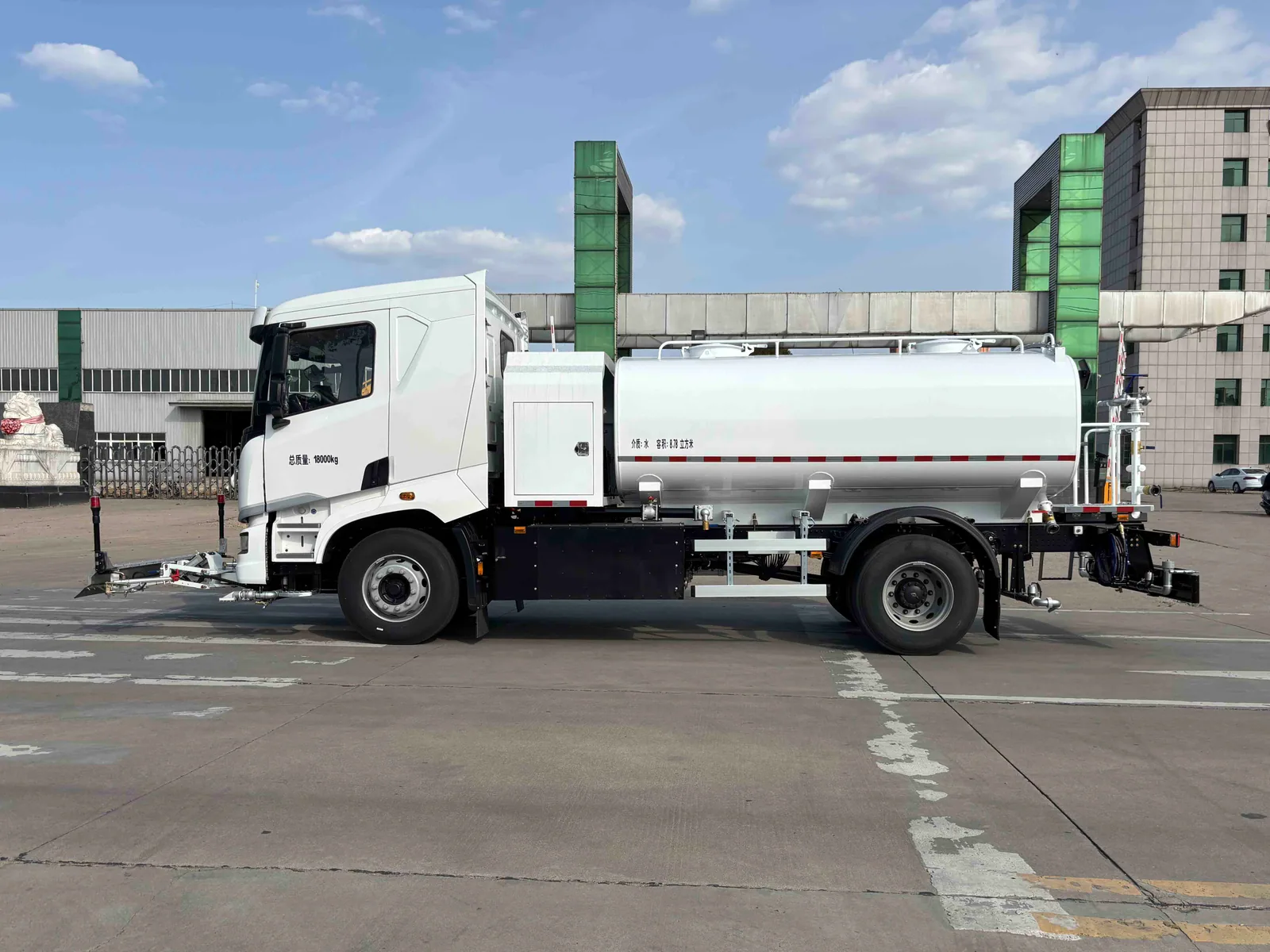

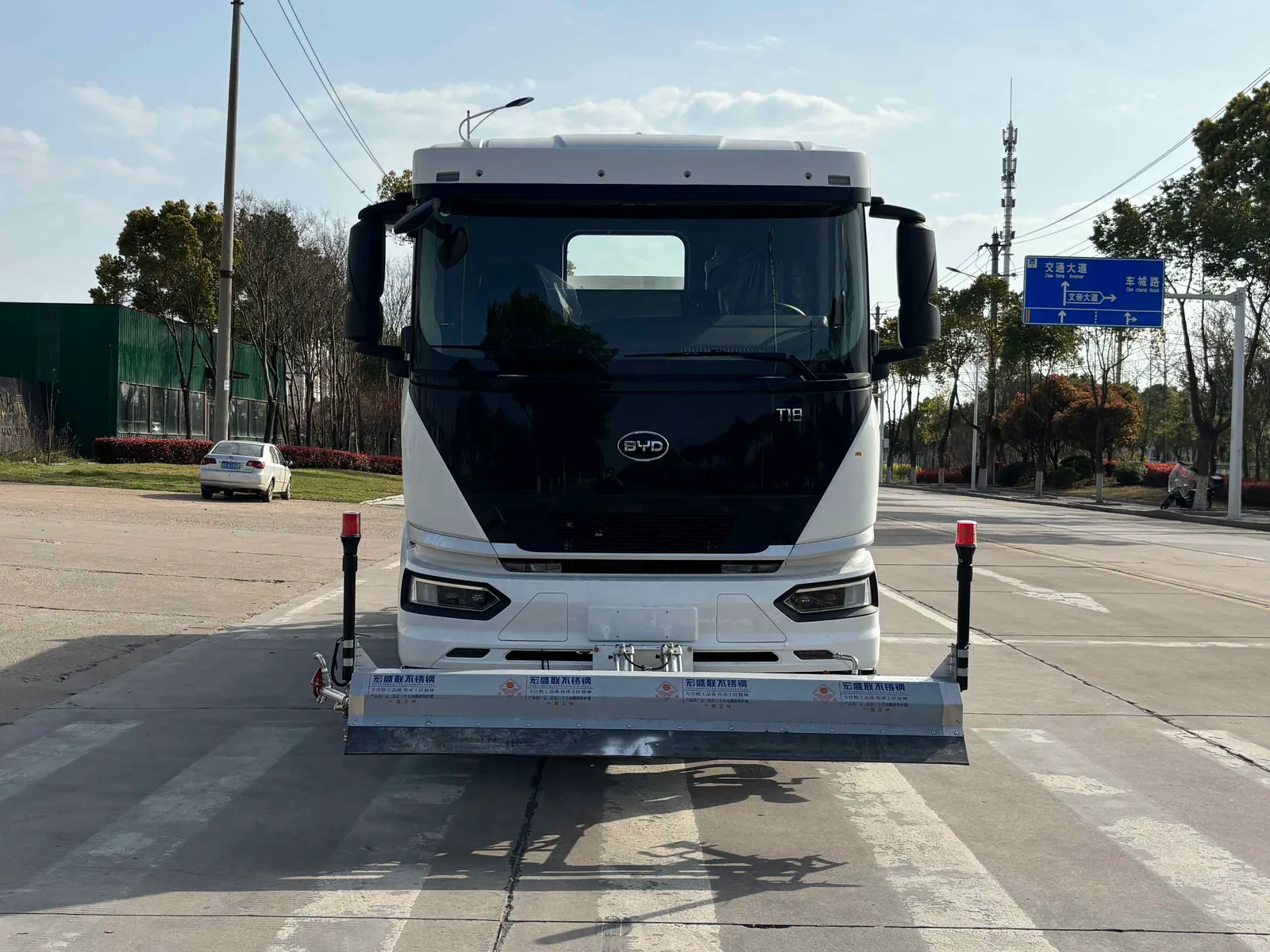

Gallery
SLG5180GQXEVY
in detail.
Multi-angle reference photography documents the working body, cab integration and exterior layout for configuration review.
Engineering & manufacturing
Designed, validated and built as one vehicle.
Shaolin combines vehicle styling and integration, electronic-control development, vehicle and component validation, and five core workshops. Digital PLM, MES, ERP, QMS, WMS and DMS systems support an ISO 9001 quality process from design through delivery.
560,000 m²production footprint
20,000+equipment sets
10,000+delivery capability
490authorized IP rights
Integrated vehicle design
Styling, vehicle layout, engineering data and concurrent engineering are coordinated as one development workflow.
Vehicle & component validation
Durability, economy, braking, steering, thermal, vibration, electrical and three-electric-system tests support platform verification.
Five-workshop production
Stamping, component-making, welding, painting and final assembly provide a complete vehicle manufacturing chain.
Specifications
Reference configuration
Specifications and equipment vary by market and final order. Contact HESU for homologation and configuration confirmation.
28 reference parameters organized into 6 groups.
SourceDetailed configuration sheet · SLG5180GQXEVY
01Vehicle overview 9 parameters
- Overall dimensions
- 9700 × 2550 × 3280 mm
- Wheelbase
- 4500 mm
- Chassis model
- BYD1180C2BEVC2
- Maximum gross weight
- 18000 kg
- Rated load capacity
- 8370 kg
- Maximum speed
- 89 km/h
- Battery capacity
- 203 kWh
- Energy type
- Pure electric
- Tank volume
- 8.37 m³
02Vehicle specifications 3 parameters
- Overall dimensions
- 9700x2530，2550x3280 mm
- Curb Weight
- 9500 kg
- Constant-speed range
- 265 km
03Chassis configuration 4 parameters
- Motor Model
- TZ370XSA
- Peak Power
- 250 kW
- Rated Power
- 160 kW
- Battery Type
- Lithium iron phosphate
04Operational performance 4 parameters
- Post-rinse width
- 24 m
- Rear Spray Width
- 8 m
- Low-pressure water flow rate
- 600-800 L/min
- Water Cannon Range
- 30 m
05High-pressure water system 6 parameters
- Sprinkler frame type
- Three-section design: main spray boom and left and right spray booms
- Sprinkler Head Cleaning Width
- 2.5-3.8 m
- Left-to-Right Swivel Angle of Sprinkler Head
- 30°
- High-Pressure Water Pump Models
- PINFL PT40(Domestic)
- Vertical Travel Range of Sprinkler Head
- 200 mm
- Maximum Pressure for High-Pressure Spray Gun Operations
- 10 MPa
06Optional feature 2 parameters
- Optional stainless steel water tank
- Available
- High-pressure water pump: Optional RTX 1450 (imported)
- Available
