18-ton pure-electric washing and sweeping vehicle
SLG5180TXSEVY
Published pure-electric municipal configuration
18
Overview
Published pure-electric municipal configuration
SLG5180TXSEVY is the published 18-ton pure-electric washing and sweeping vehicle configuration in Shaolin Bus's 2026 bilingual brochure. Dimensions, capacity and powertrain data shown here are transcribed from the manufacturer table; final configuration and appearance are subject to the delivered vehicle.
01
Overall dimensions
9130 × 2550 × 3280 mm
02
Wheelbase
5300 mm
03
Chassis model
BYD1180C2BEVC1
04
Maximum gross weight
18000 kg
05
Rated load capacity
4970 kg
06
Maximum speed
89 km/h
07
Battery capacity
251 kWh
Highlights
Municipal operation
The body type, payload and energy storage define the published municipal-duty configuration.
Order-specific confirmation
Final equipment, homologation and appearance are confirmed for the destination market and purchase order.

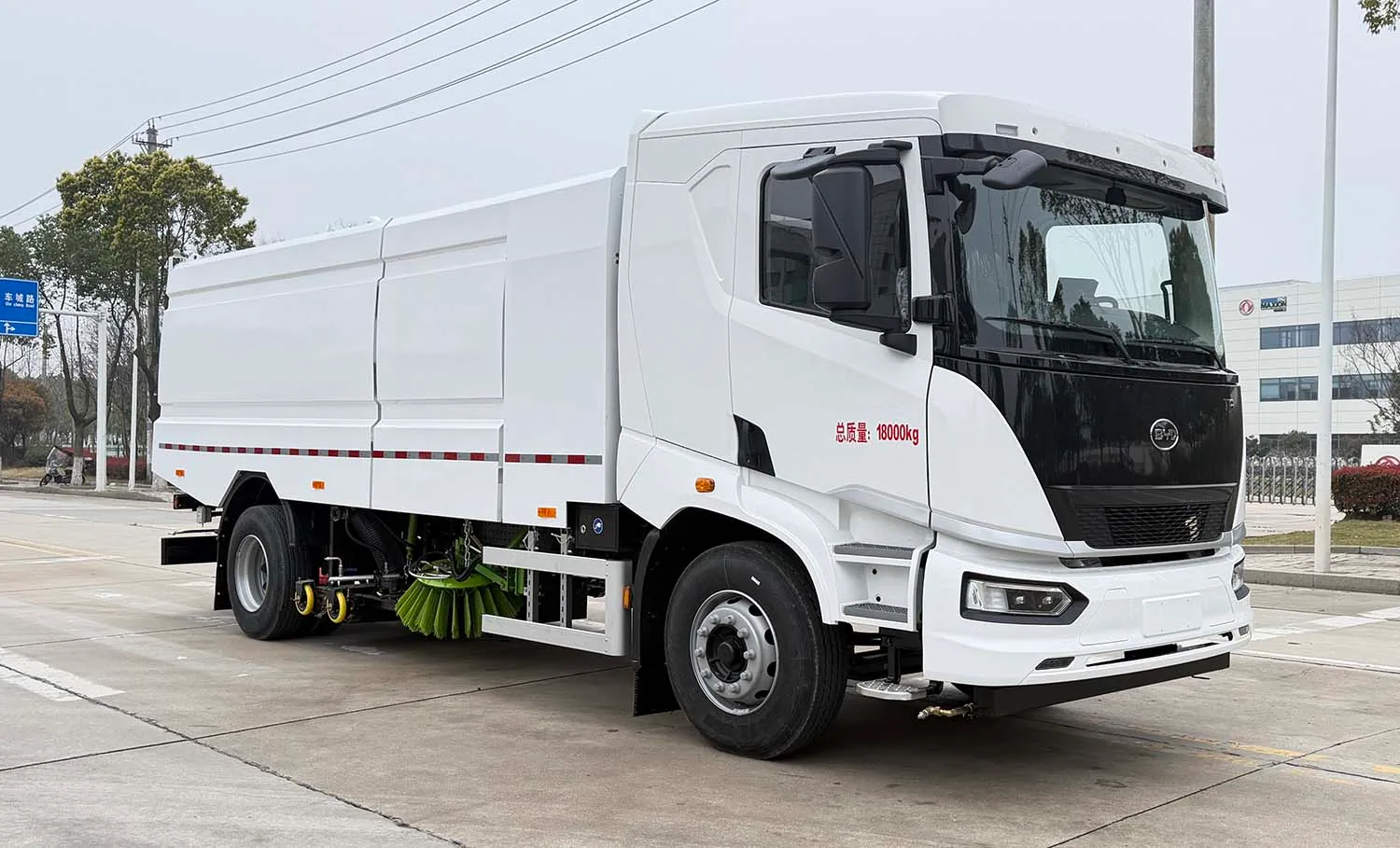

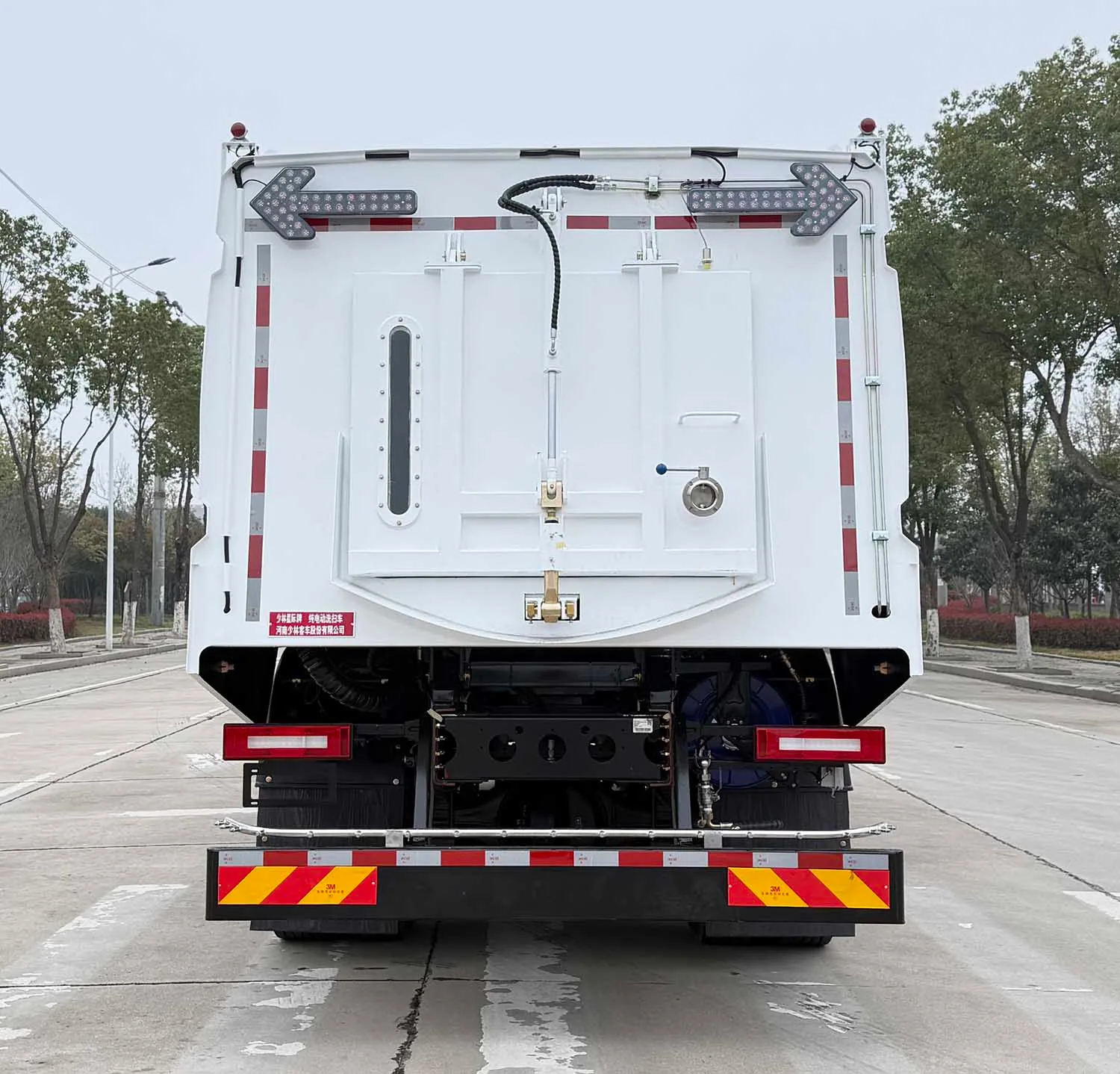

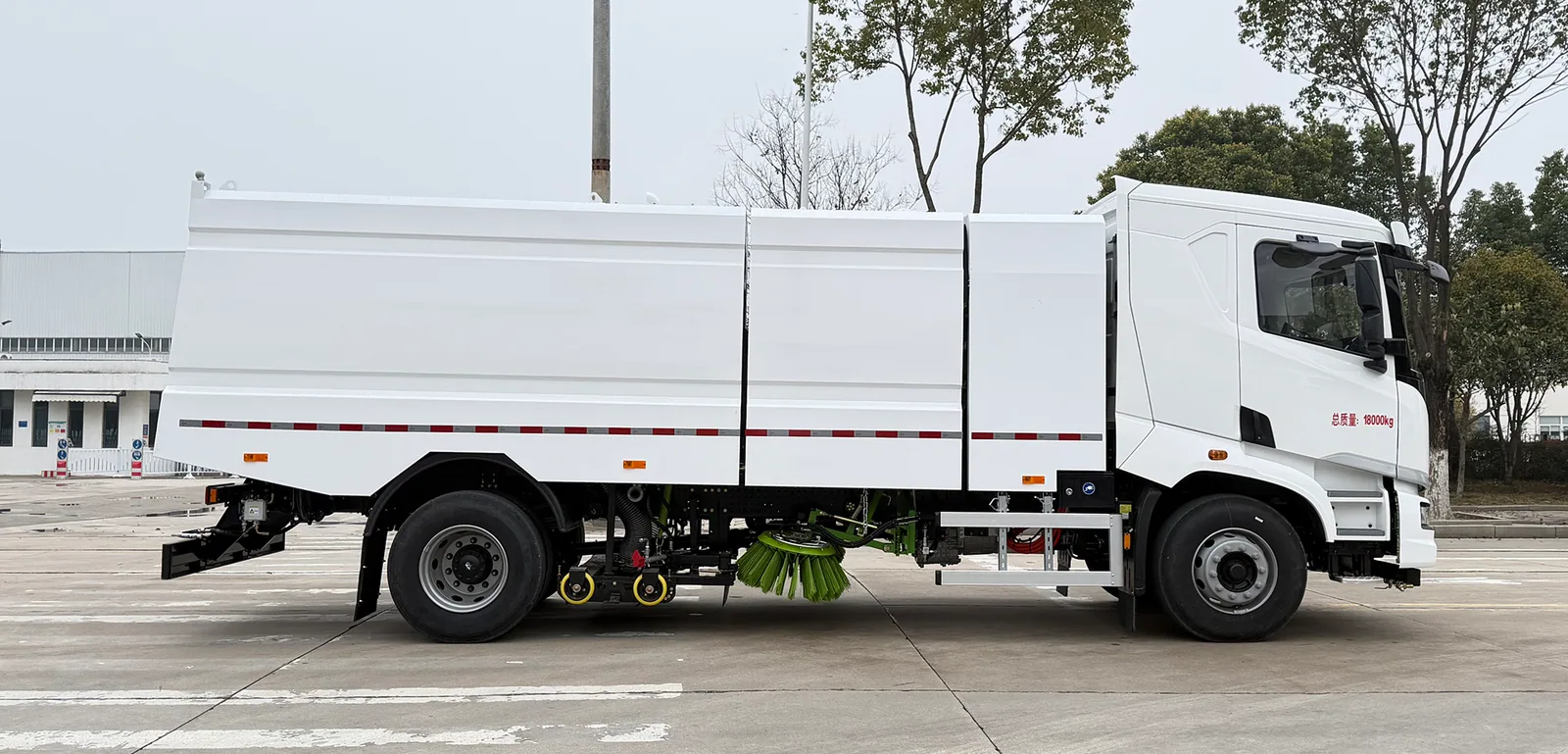

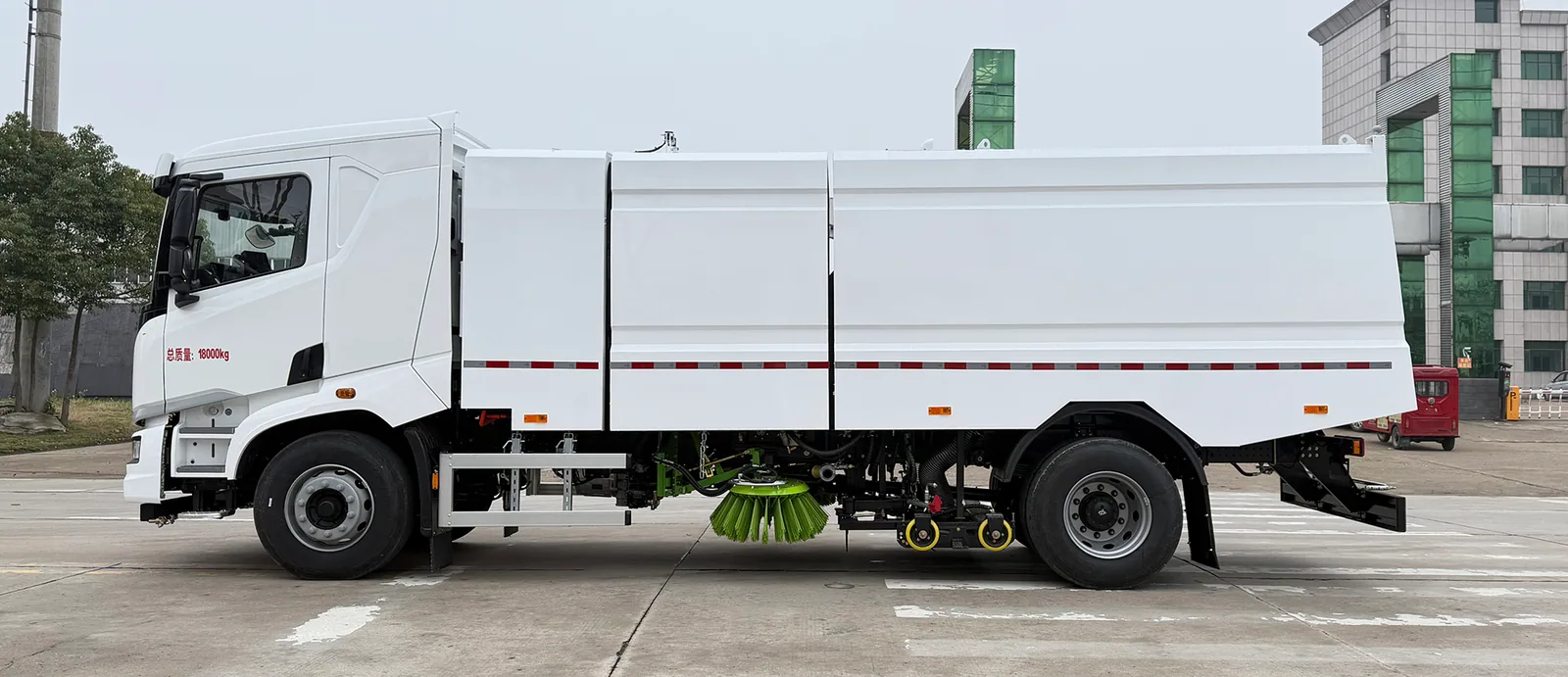

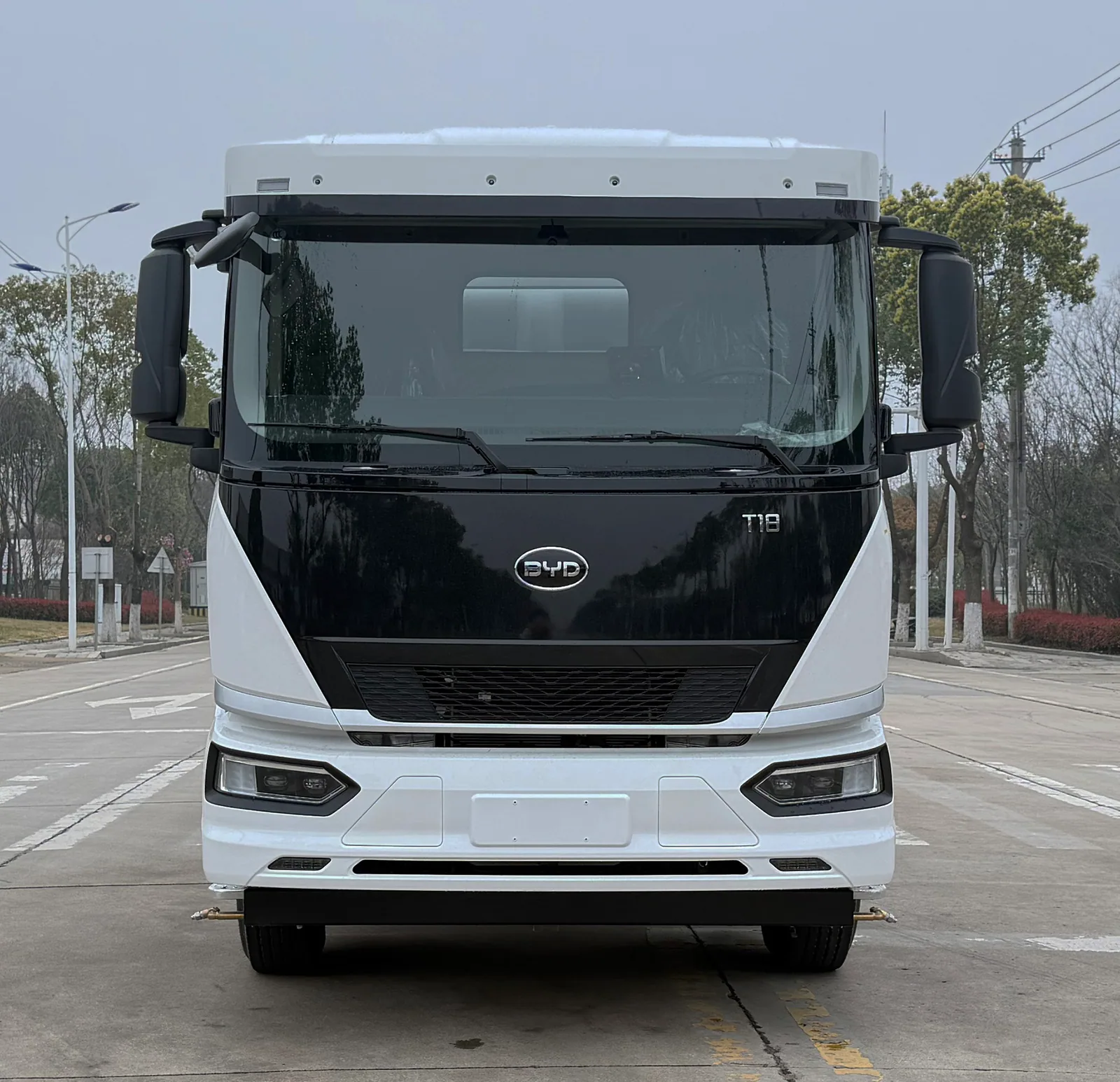

Gallery
SLG5180TXSEVY
in detail.
Multi-angle reference photography documents the working body, cab integration and exterior layout for configuration review.
Engineering & manufacturing
Designed, validated and built as one vehicle.
Shaolin combines vehicle styling and integration, electronic-control development, vehicle and component validation, and five core workshops. Digital PLM, MES, ERP, QMS, WMS and DMS systems support an ISO 9001 quality process from design through delivery.
560,000 m²production footprint
20,000+equipment sets
10,000+delivery capability
490authorized IP rights
Integrated vehicle design
Styling, vehicle layout, engineering data and concurrent engineering are coordinated as one development workflow.
Vehicle & component validation
Durability, economy, braking, steering, thermal, vibration, electrical and three-electric-system tests support platform verification.
Five-workshop production
Stamping, component-making, welding, painting and final assembly provide a complete vehicle manufacturing chain.
Specifications
Reference configuration
Specifications and equipment vary by market and final order. Contact HESU for homologation and configuration confirmation.
34 reference parameters organized into 7 groups.
SourceDetailed configuration sheet · SLG5180TXSEVY
01Vehicle overview 9 parameters
- Overall dimensions
- 9130 × 2550 × 3280 mm
- Wheelbase
- 5300 mm
- Chassis model
- BYD1180C2BEVC1
- Maximum gross weight
- 18000 kg
- Rated load capacity
- 4970 kg
- Maximum speed
- 89 km/h
- Battery capacity
- 251 kWh
- Energy type
- Pure electric
- Rated passenger capacity
- 2 people
02Vehicle specifications 5 parameters
- Overall dimensions
- 9130x2530，2550x3280 mm
- Curb Weight
- 12900,12600 kg
- Approach Angle/Departure Angle
- 16/11°
- Rated load capacity
- 4970,5270 kg
- Constant-speed range
- 385 km
03Chassis configuration 4 parameters
- Motor Model
- TZ370XSA
- Peak Power
- 250 kW
- Peak Torque
- 1060 N·m
- Battery Type
- Lithium iron phosphate
04Operational performance 8 parameters
- Maximum Sweeping and Washing Width
- 4.1 m
- Maximum Sweeping Width
- 3.5 m
- Rated Pressure of Wash Water
- 10 MPa
- Rated Flow Rate of Wash Water
- 142 L/min
- Cleaning Speed
- 5-20 km/h
- Maximum Sweeping Capacity
- 70000 m²/h
- Trash Can Capacity
- 7300 L
- Clean Water Tank Capacity
- 8200 L
05Hydraulic system 2 parameters
- Hydraulic Relief Pressure
- 10 MPa
- Hydraulic Oil Capacity
- 70 L
06High-pressure cleaning system 4 parameters
- Rated Pressure
- 10 MPa
- High-Pressure Water Pump Models
- PINFL PT40 (Domestic)
- Rated Flow Rate
- 142 L/min
- Rated Speed
- 1450 r/min
07Optional feature 2 parameters
- ETC On-Board Units with Direct Power Supply
- Available
- High-pressure water pump: Optional RTX 1450
- Available
