Pure-electric dust suppression vehicle
SLG5180TYCEVB
Published pure-electric municipal configuration
30
Overview
Published pure-electric municipal configuration
SLG5180TYCEVB is the published pure-electric dust suppression vehicle configuration in Shaolin Bus's 2026 bilingual brochure. Dimensions, capacity and powertrain data shown here are transcribed from the manufacturer table; final configuration and appearance are subject to the delivered vehicle.
01
Overall dimensions
9850 × 2530 × 3760 mm
02
Wheelbase
4800 mm
03
Chassis model
BJ1186EVJA1
04
Tank volume
9.161 m³
05
Maximum gross weight
18000 kg
06
Rated load capacity
7390 kg
07
Maximum speed
89 km/h
08
Battery capacity
246 kWh
Highlights
Municipal operation
The body type, payload and energy storage define the published municipal-duty configuration.
Order-specific confirmation
Final equipment, homologation and appearance are confirmed for the destination market and purchase order.

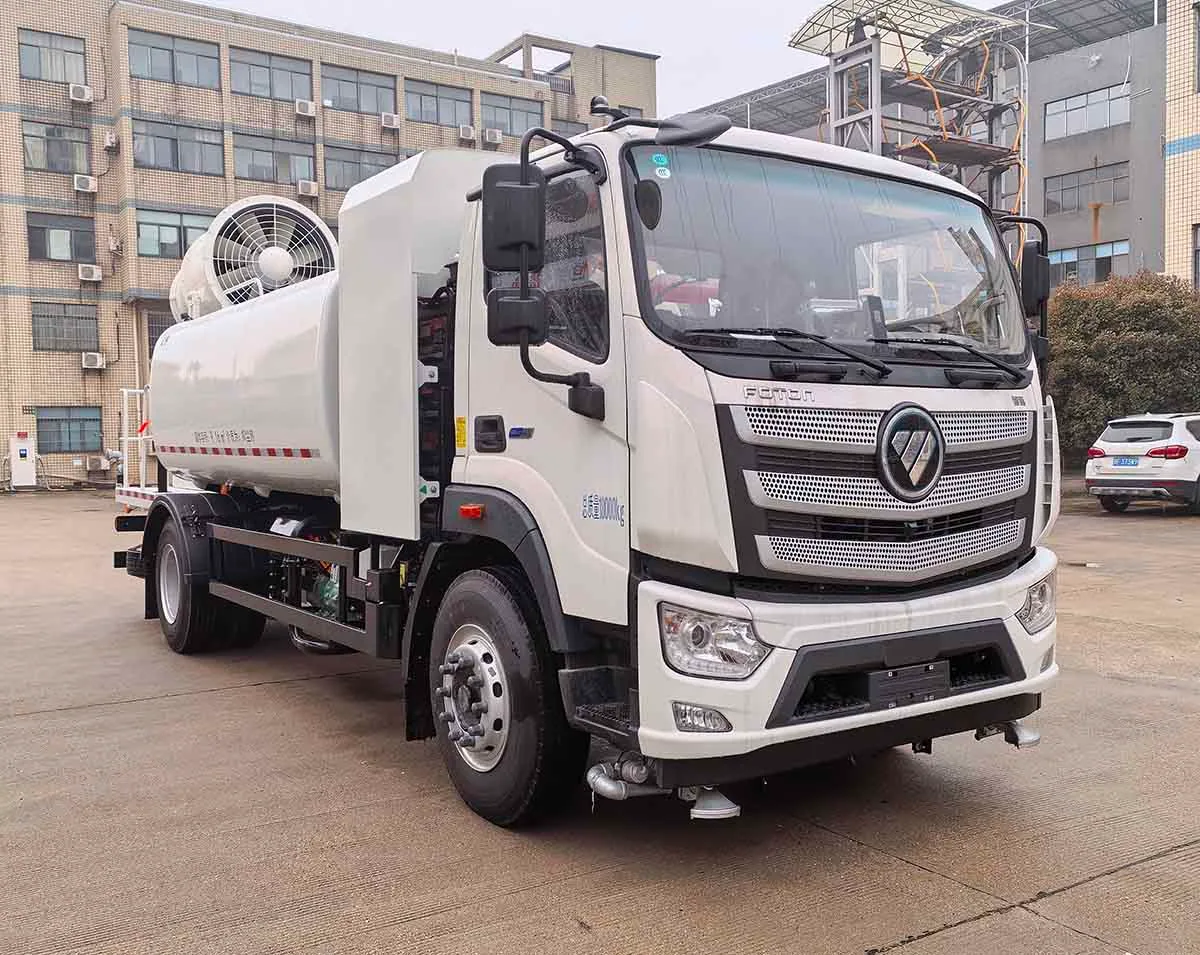

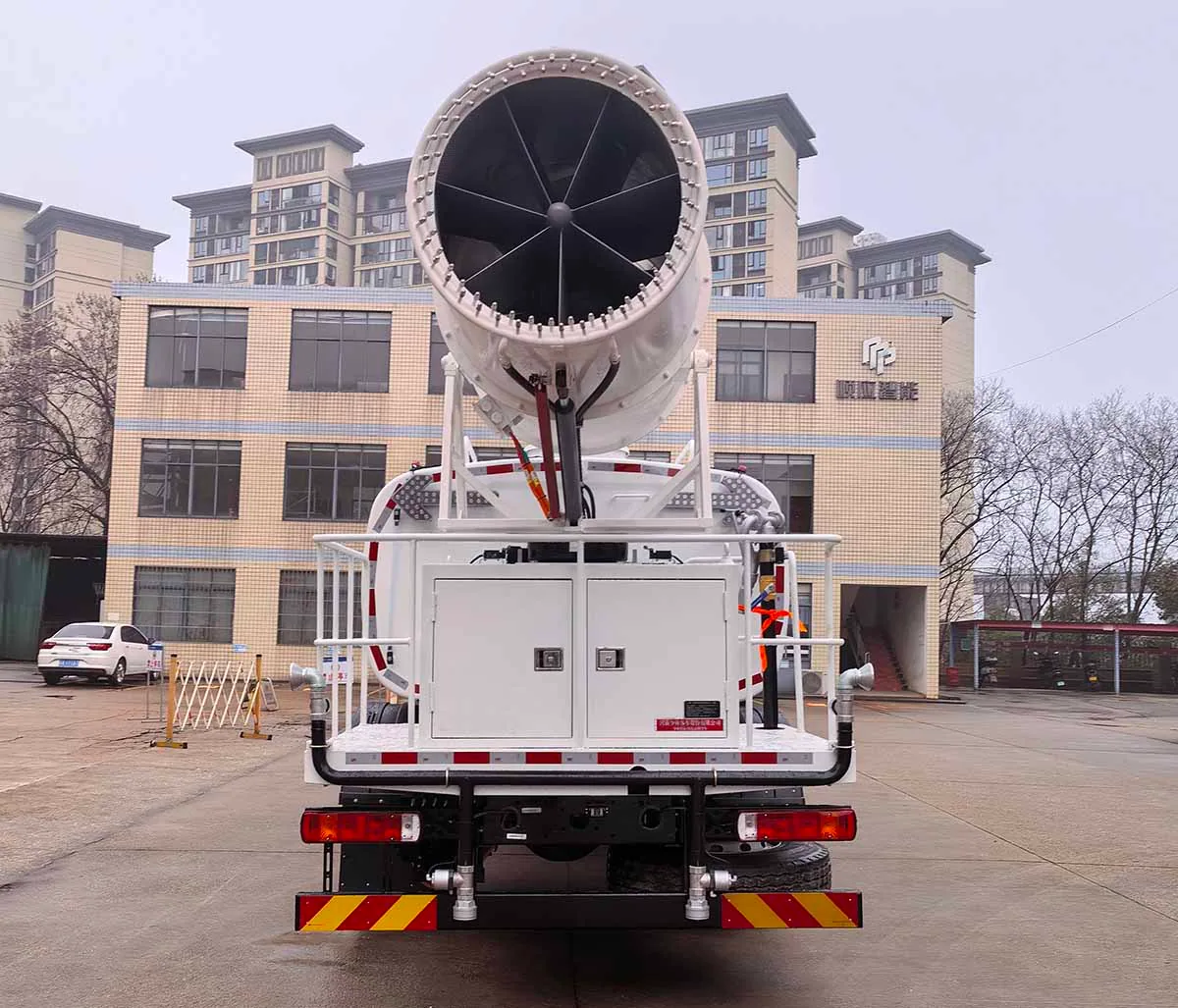

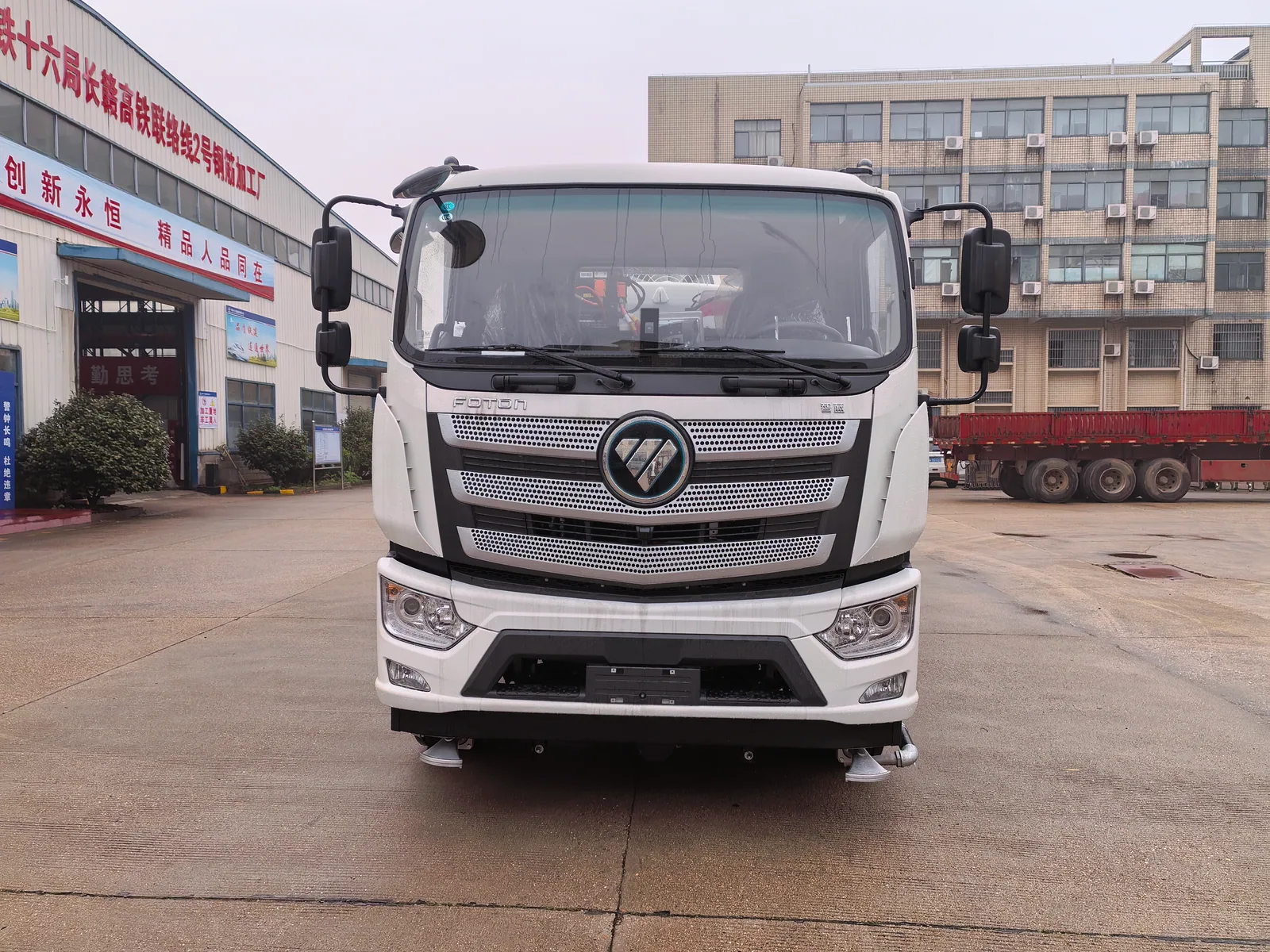

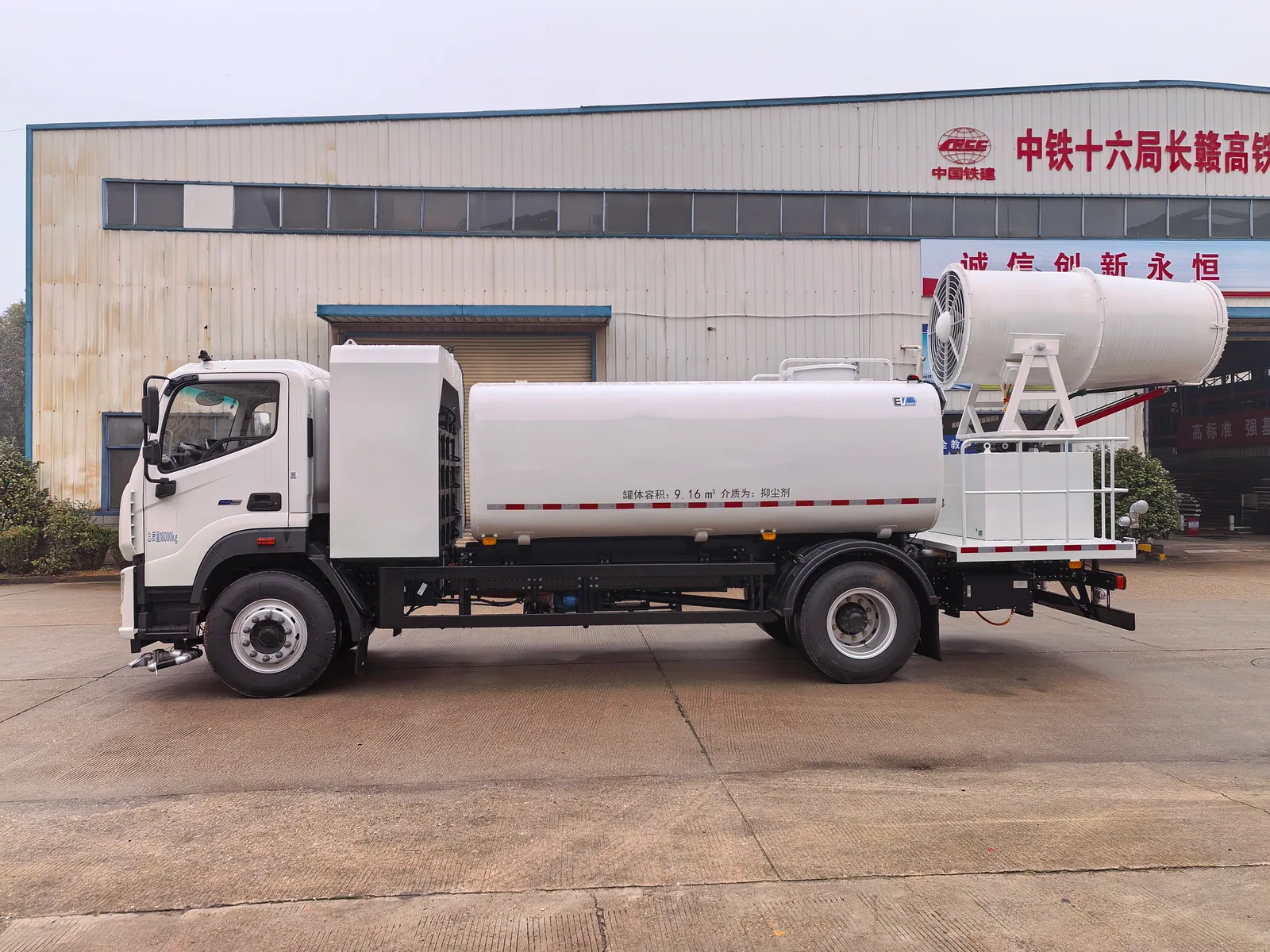

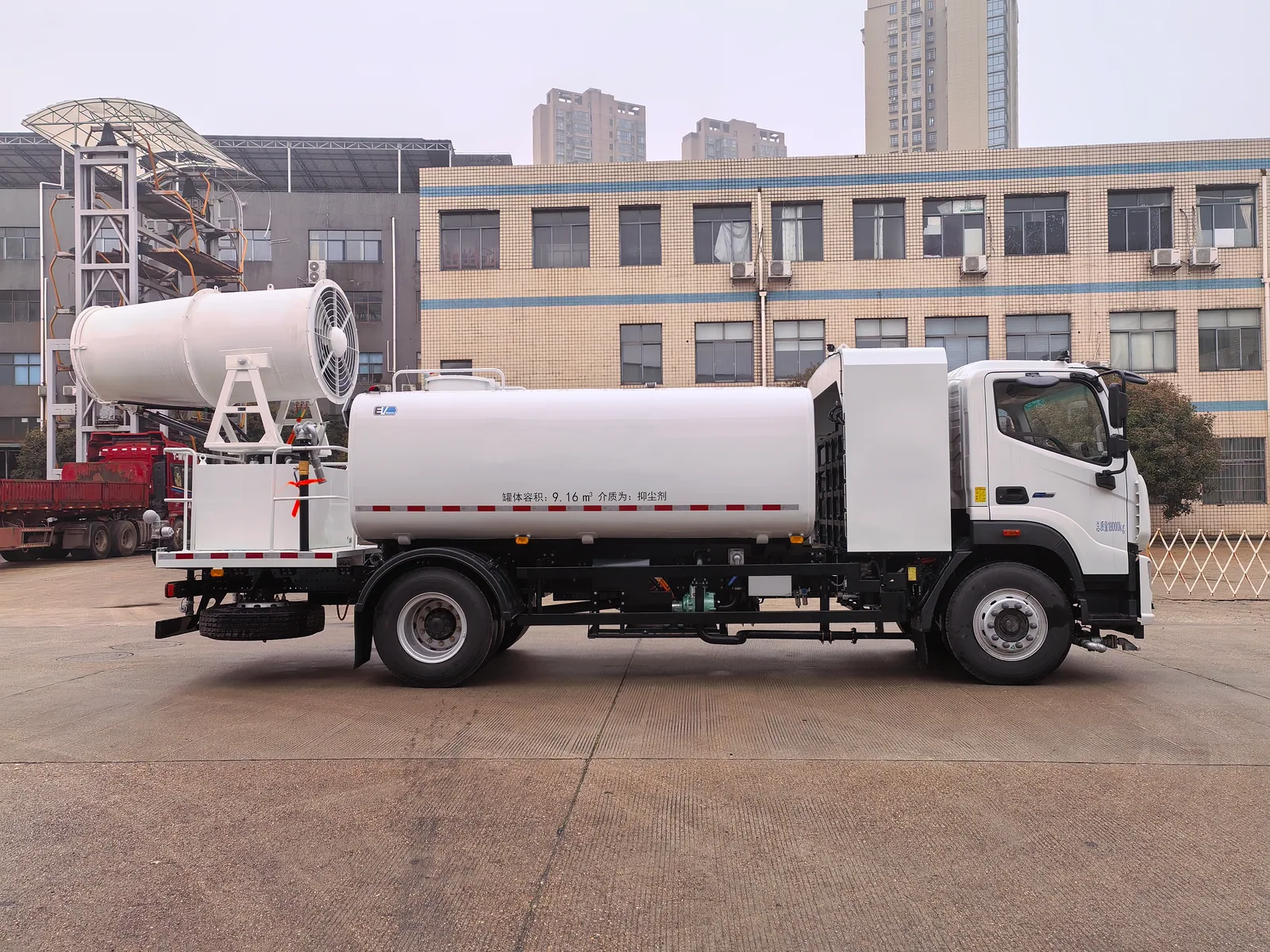

Gallery
SLG5180TYCEVB
in detail.
Multi-angle reference photography documents the working body, cab integration and exterior layout for configuration review.
Engineering & manufacturing
Designed, validated and built as one vehicle.
Shaolin combines vehicle styling and integration, electronic-control development, vehicle and component validation, and five core workshops. Digital PLM, MES, ERP, QMS, WMS and DMS systems support an ISO 9001 quality process from design through delivery.
560,000 m²production footprint
20,000+equipment sets
10,000+delivery capability
490authorized IP rights
Integrated vehicle design
Styling, vehicle layout, engineering data and concurrent engineering are coordinated as one development workflow.
Vehicle & component validation
Durability, economy, braking, steering, thermal, vibration, electrical and three-electric-system tests support platform verification.
Five-workshop production
Stamping, component-making, welding, painting and final assembly provide a complete vehicle manufacturing chain.
Specifications
Reference configuration
Specifications and equipment vary by market and final order. Contact HESU for homologation and configuration confirmation.
34 reference parameters organized into 5 groups.
SourceDetailed configuration sheet · SLG5180TYCEVB
01Vehicle overview 10 parameters
- Overall dimensions
- 9850 × 2530 × 3760 mm
- Wheelbase
- 4800 mm
- Chassis model
- BJ1186EVJA1
- Tank volume
- 9.161 m³
- Maximum gross weight
- 18000 kg
- Rated load capacity
- 7390 kg
- Maximum speed
- 89 km/h
- Battery capacity
- 246 kWh
- Energy type
- Pure electric
- Rated passenger capacity
- 2 people
02Vehicle specifications 7 parameters
- Overall dimensions
- 9850×2530×3760 mm
- Curb Weight
- 10480 kg
- Tank volume
- 9.16 m³
- Approach Angle/Departure Angle
- 12/10°
- Constant-speed range
- 370 km
- Continuous cleaning operation time
- 4.5 h
- Continuous spraying duration
- 1.5 h
03Chassis configuration 4 parameters
- Motor Model
- FTTB080C
- Peak Power
- 160 kW
- Rated Power
- 80 kW
- Battery Type
- Lithium iron phosphate
04Operational performance 12 parameters
- Spray system · Wind Cannon Range
- 100 m
- Spray system · Wind Cannon Height
- 20 m
- Spray system · Spray Distance
- 100 m
- Spray system · Spray Flow Rate
- 110-130 L/min
- Spray system · Pump Pressure
- 1.1 MPa
- Spray system · Wind Cannon Pitch Angle
- -10~45°
- Cleaning system · Flushing Width (Both Sides)
- 24 m
- Cleaning system · Rear Spraying Width (Both Sides)
- 12 m
- Cleaning system · Landscaping Spray Width (Both Sides)
- 12 m
- Cleaning system · Water Gun Range
- 38 m
- Cleaning system · Rinsing Water Flow Rate
- 600-800 L/min
- Cleaning system · Rotation Angle of the Air Cannon
- ±90°
05Optional feature 1 parameters
- ETC On-Board Units with Direct Power Supply
- Available
