Manufacturer-published data
Core dimensions and capacities are taken directly from the new bilingual brochure.
All products
4.5-ton pure-electric road washing vehicle
SLG5040TCXEVZB
Published pure-electric municipal configuration
25
Overview
Published pure-electric municipal configuration
SLG5040TCXEVZB is the published 4.5-ton pure-electric road washing vehicle configuration in Shaolin Bus's 2026 bilingual brochure. Dimensions, capacity and powertrain data shown here are transcribed from the manufacturer table; final configuration and appearance are subject to the delivered vehicle.
01
Overall dimensions
5350 × 2000 × 2180 mm
02
Wheelbase
2850 mm
03
Chassis model
ZB1043BEVGDRJ0
04
Tank volume
2.8 m³
05
Maximum gross weight
4495 kg
06
Rated load capacity
1565 kg
07
Maximum speed
90 km/h
08
Battery capacity
55 kWh
Highlights
Municipal operation
The body type, payload and energy storage define the published municipal-duty configuration.
Order-specific confirmation
Final equipment, homologation and appearance are confirmed for the destination market and purchase order.

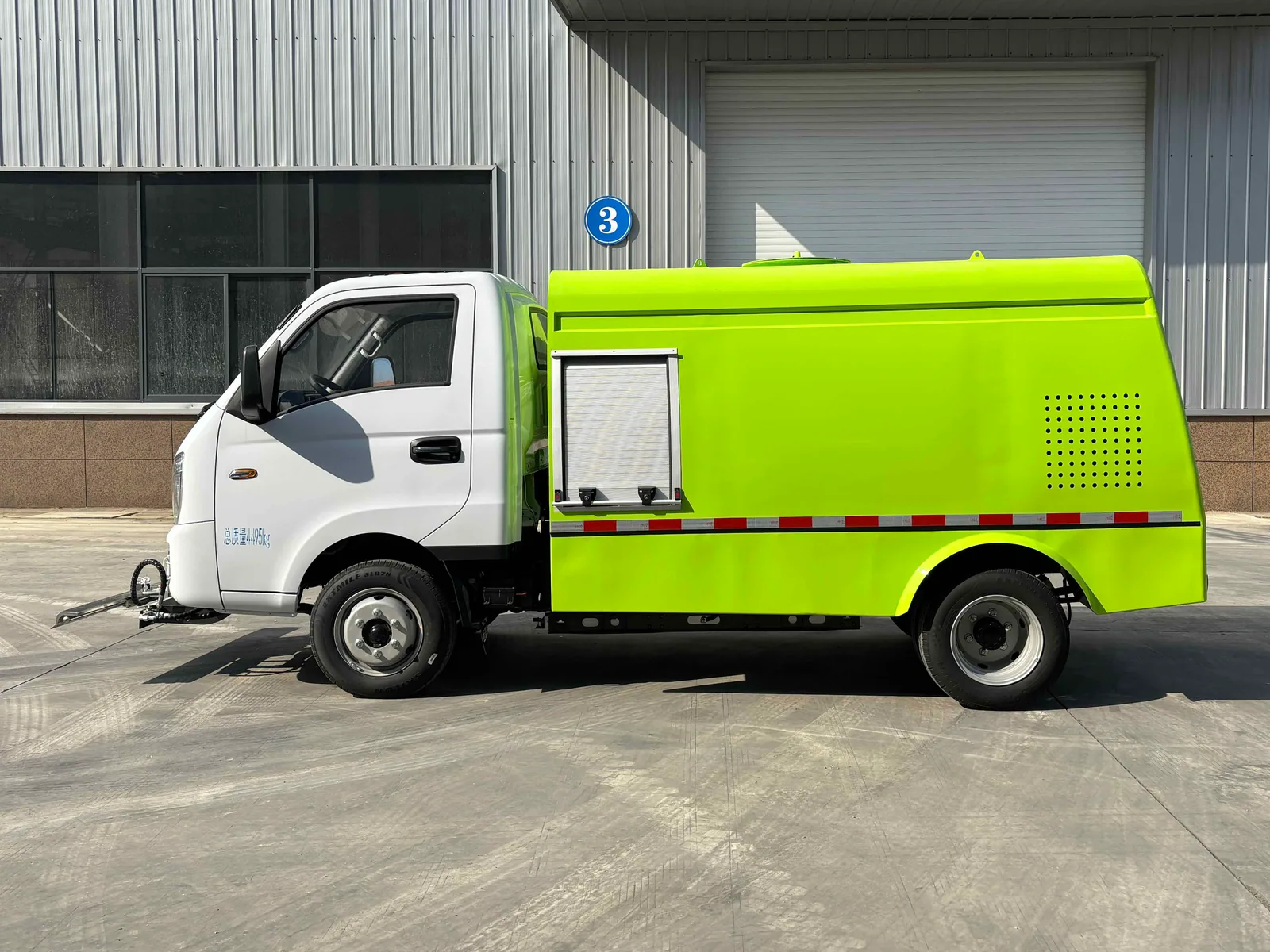

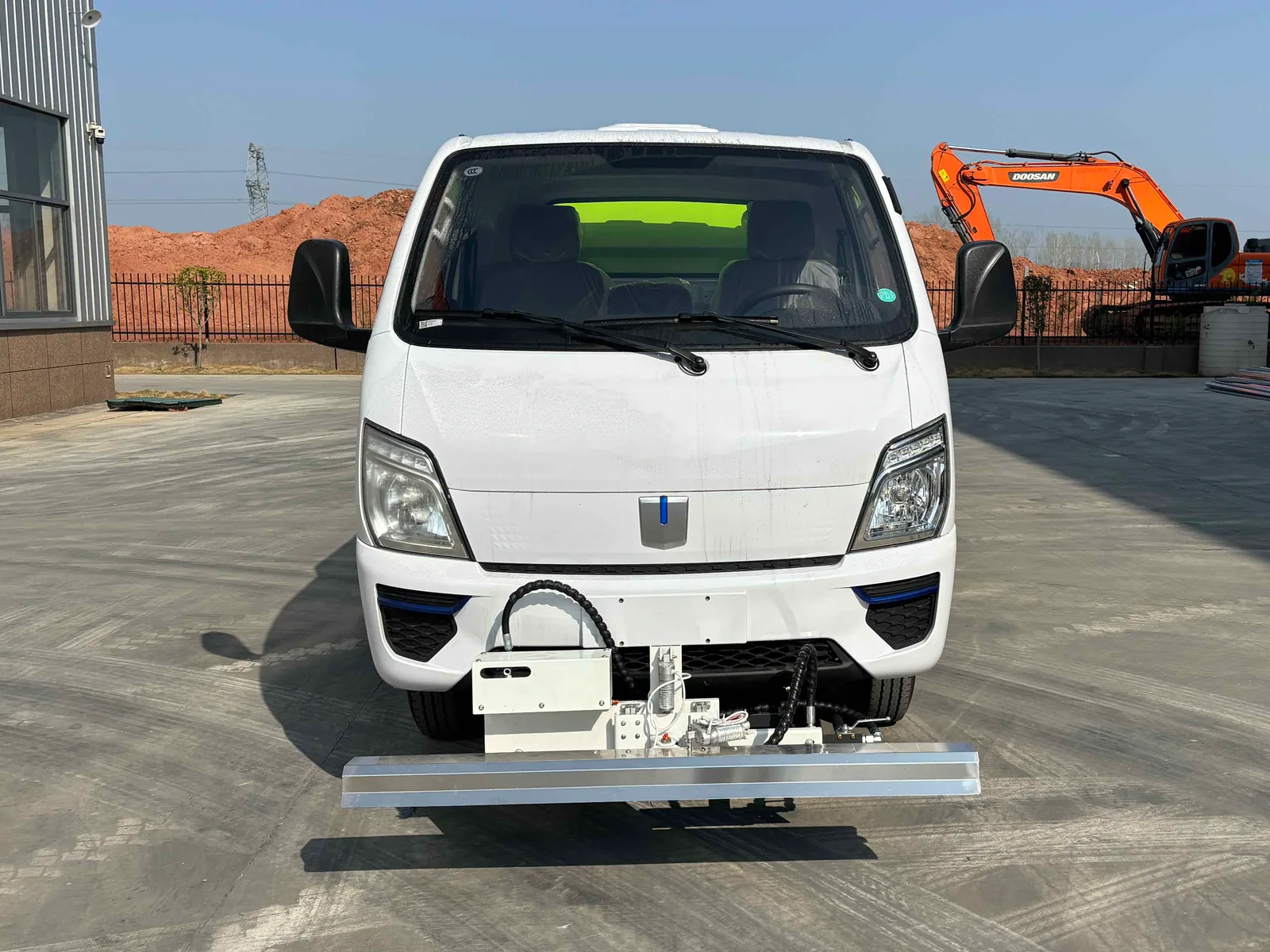

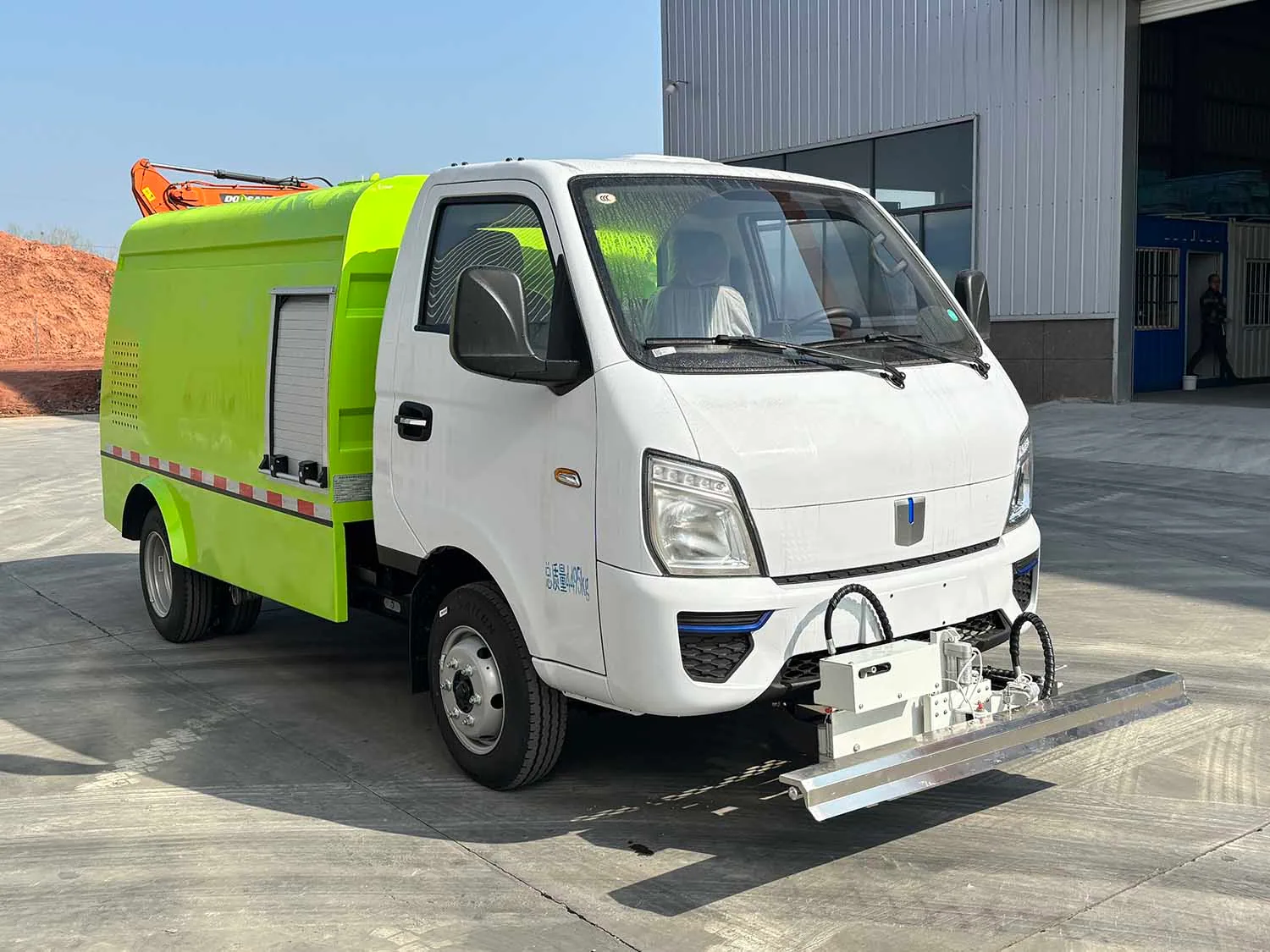

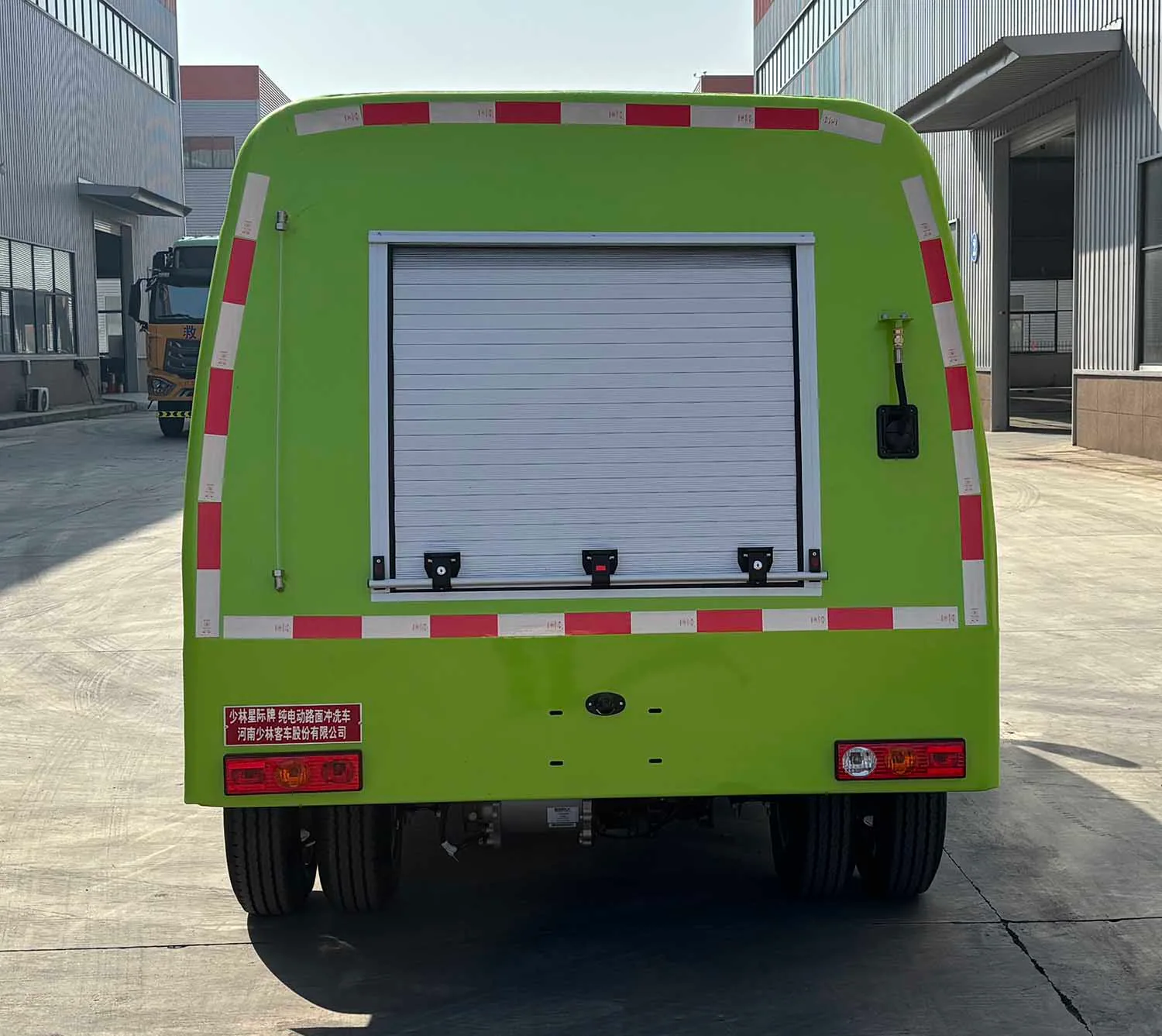

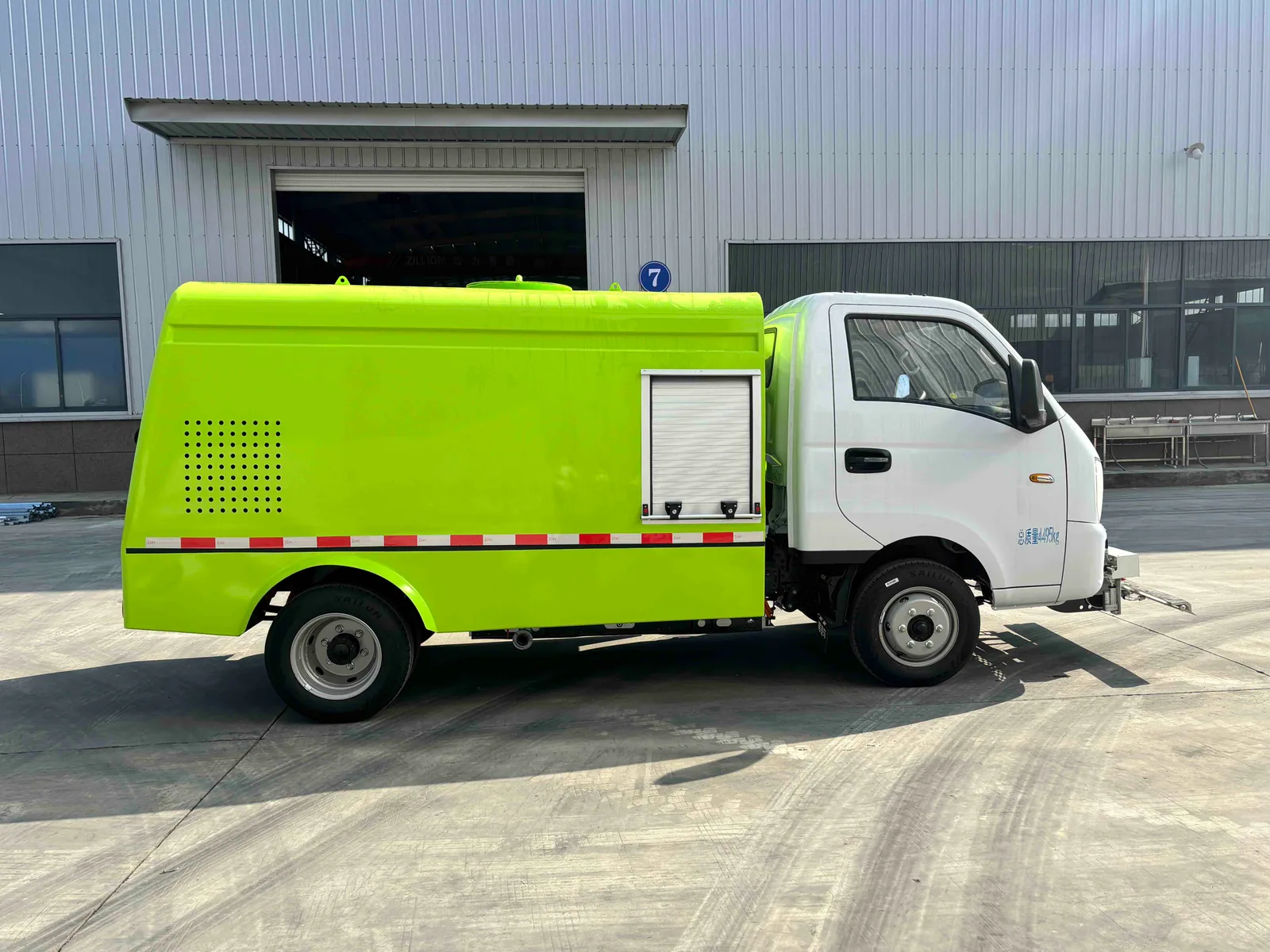

Gallery
SLG5040TCXEVZB
in detail.
Multi-angle reference photography documents the working body, cab integration and exterior layout for configuration review.
Engineering & manufacturing
Designed, validated and built as one vehicle.
Shaolin combines vehicle styling and integration, electronic-control development, vehicle and component validation, and five core workshops. Digital PLM, MES, ERP, QMS, WMS and DMS systems support an ISO 9001 quality process from design through delivery.
560,000 m²production footprint
20,000+equipment sets
10,000+delivery capability
490authorized IP rights
Integrated vehicle design
Styling, vehicle layout, engineering data and concurrent engineering are coordinated as one development workflow.
Vehicle & component validation
Durability, economy, braking, steering, thermal, vibration, electrical and three-electric-system tests support platform verification.
Five-workshop production
Stamping, component-making, welding, painting and final assembly provide a complete vehicle manufacturing chain.
Specifications
Reference configuration
Specifications and equipment vary by market and final order. Contact HESU for homologation and configuration confirmation.
27 reference parameters organized into 5 groups.
SourceDetailed configuration sheet · SLG5040TCXEVZB
01Vehicle overview 10 parameters
- Overall dimensions
- 5350 × 2000 × 2180 mm
- Wheelbase
- 2850 mm
- Chassis model
- ZB1043BEVGDRJ0
- Tank volume
- 2.8 m³
- Maximum gross weight
- 4495 kg
- Rated load capacity
- 1565 kg
- Maximum speed
- 90 km/h
- Battery capacity
- 55 kWh
- Energy type
- Pure electric
- Rated passenger capacity
- 2 People
02Vehicle specifications 5 parameters
- Overall dimensions
- 5350×2000、1960、1980×2130,2200 mm
- Curb Weight
- 2820 kg
- Approach Angle/Departure Angle
- 15/28°
- Rated load capacity
- 1545 kg
- Constant-speed range
- 285 km
03Chassis configuration 5 parameters
- Motor Model
- TZ180XSZX07
- Peak Power
- 90 kW
- Rated Power
- 48 kW
- Battery Type
- Lithium iron phosphate
- Battery capacity
- 55.062 kWh
04Operational performance 5 parameters
- Front spray boom cleaning width
- 1.5 m
- Front spray boom deflection angle
- ±20°
- Front Boom Lift Height
- 100 mm
- Length of the hose reel hose
- 15 (With an automatic retraction feature) m
- Water Tank Capacity
- 2.8 m³
05Optional feature 2 parameters
- Disc-Type Cleaning Device
- Available
- Spray Nozzle
- Available
