Manufacturer-published data
Core dimensions and capacities are taken directly from the new bilingual brochure.
All products
Pure-electric vehicle cleaning machine
SLG5180GQXEVB
Published pure-electric municipal configuration
26
Overview
Published pure-electric municipal configuration
SLG5180GQXEVB is the published pure-electric vehicle cleaning machine configuration in Shaolin Bus's 2026 bilingual brochure. Dimensions, capacity and powertrain data shown here are transcribed from the manufacturer table; final configuration and appearance are subject to the delivered vehicle.
01
Overall dimensions
8470 × 2500 × 2790 mm
02
Wheelbase
4500 mm
03
Chassis model
BJ1186EVJA5
04
Tank volume
9.6 m³
05
Maximum gross weight
18000 kg
06
Rated load capacity
9255 kg
07
Maximum speed
90 km/h
08
Battery capacity
200 kWh
Highlights
Municipal operation
The body type, payload and energy storage define the published municipal-duty configuration.
Order-specific confirmation
Final equipment, homologation and appearance are confirmed for the destination market and purchase order.

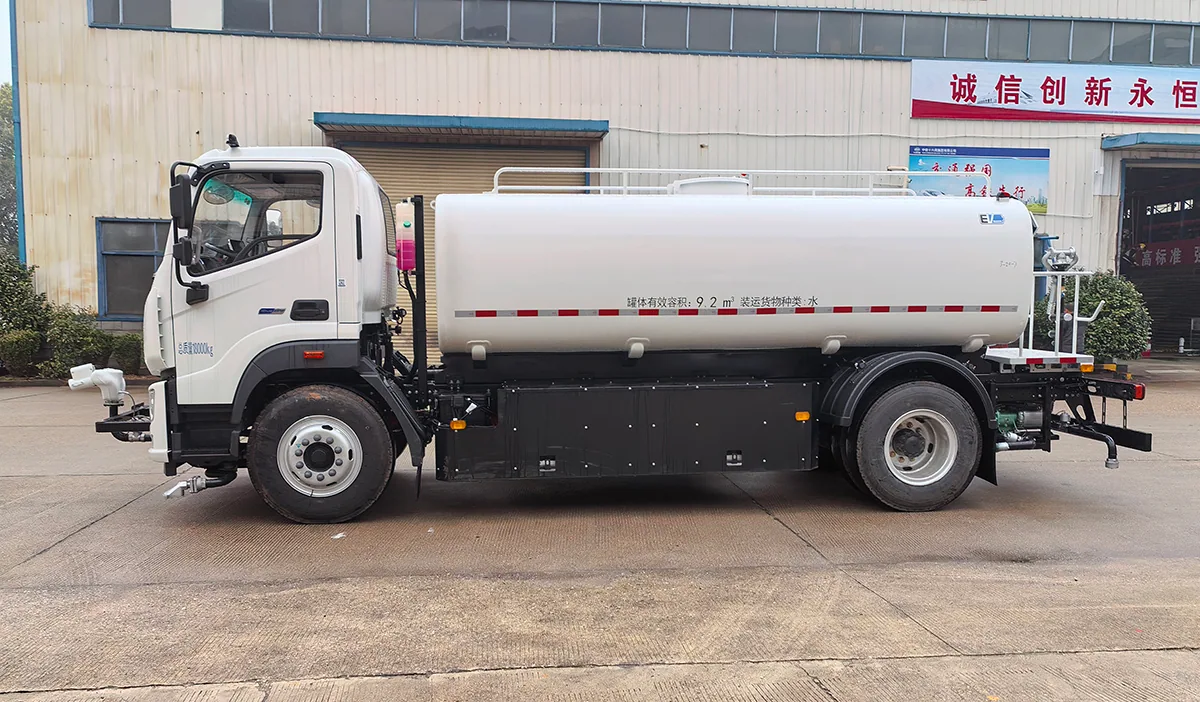

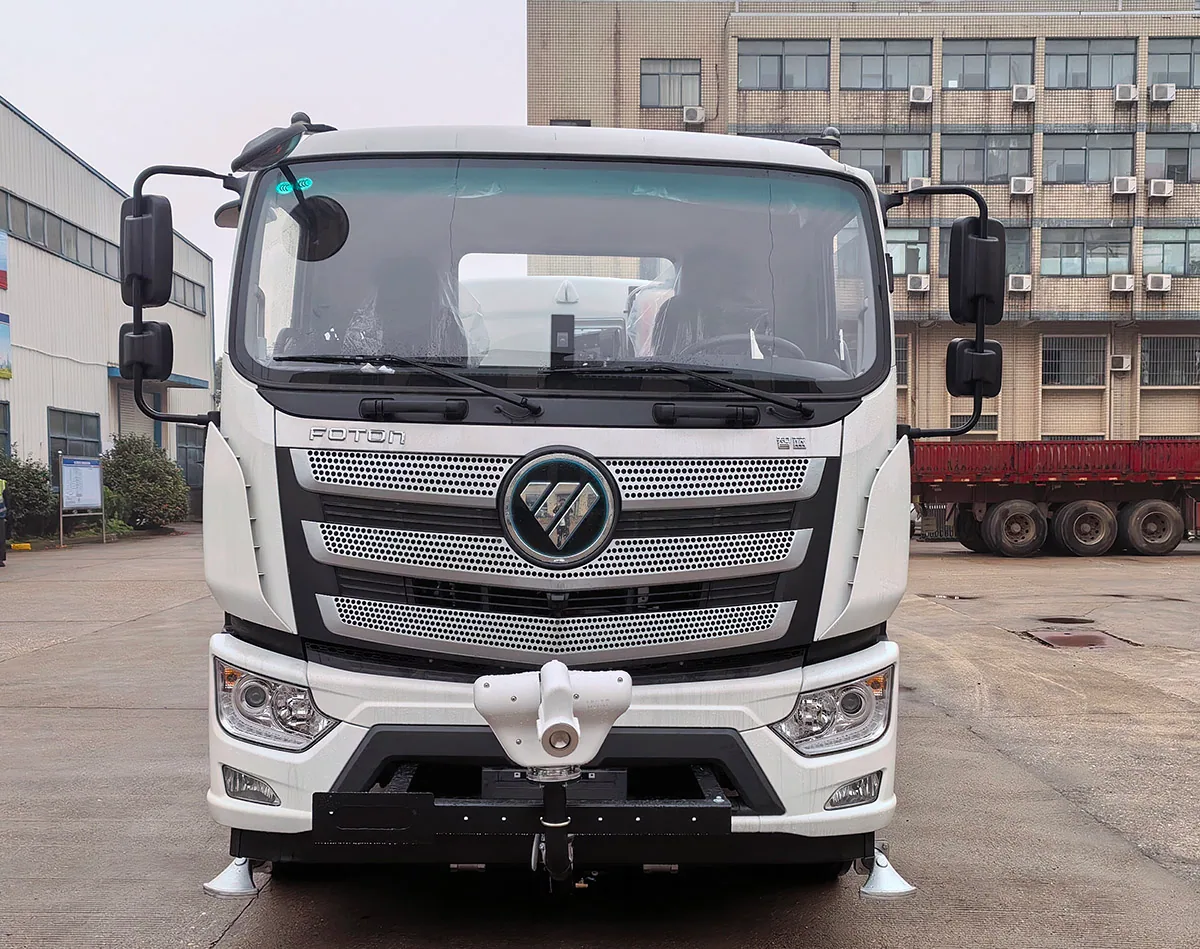

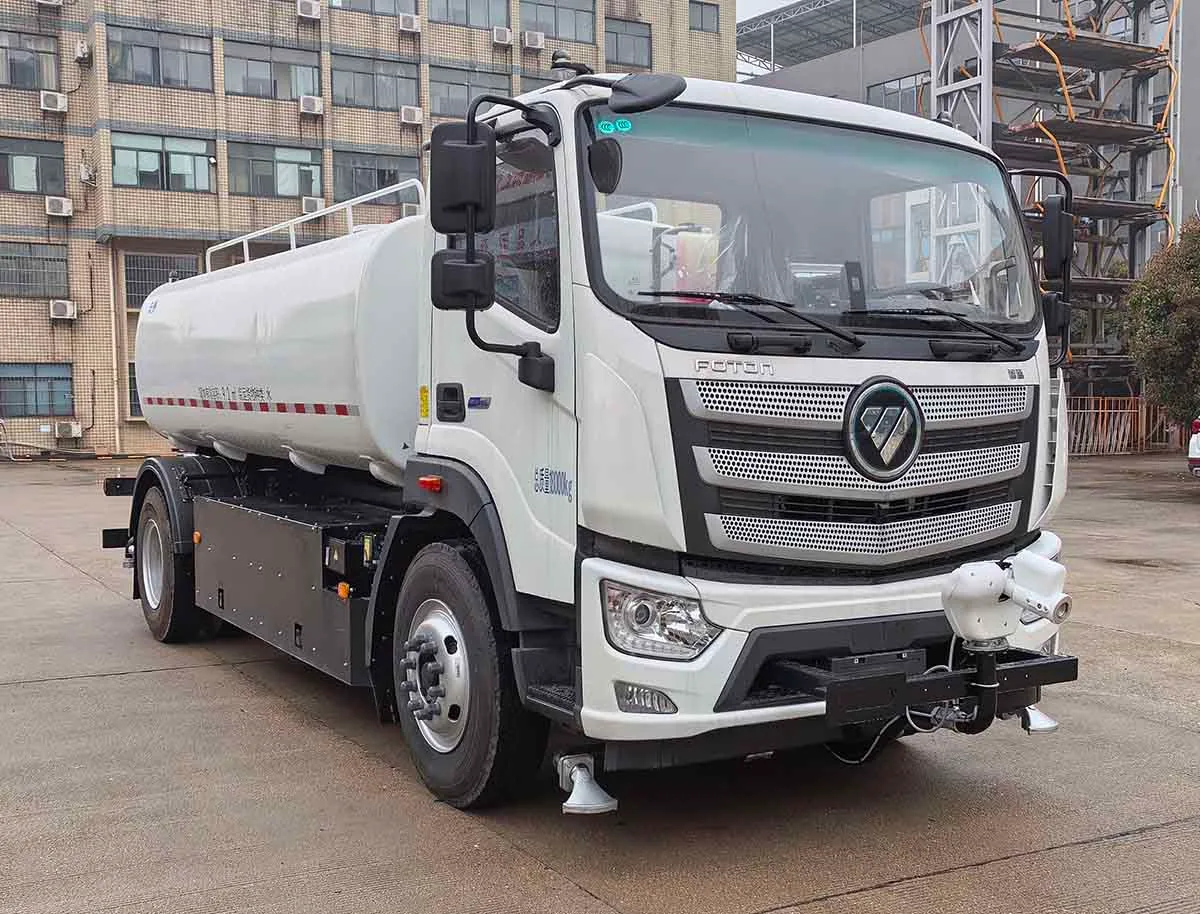

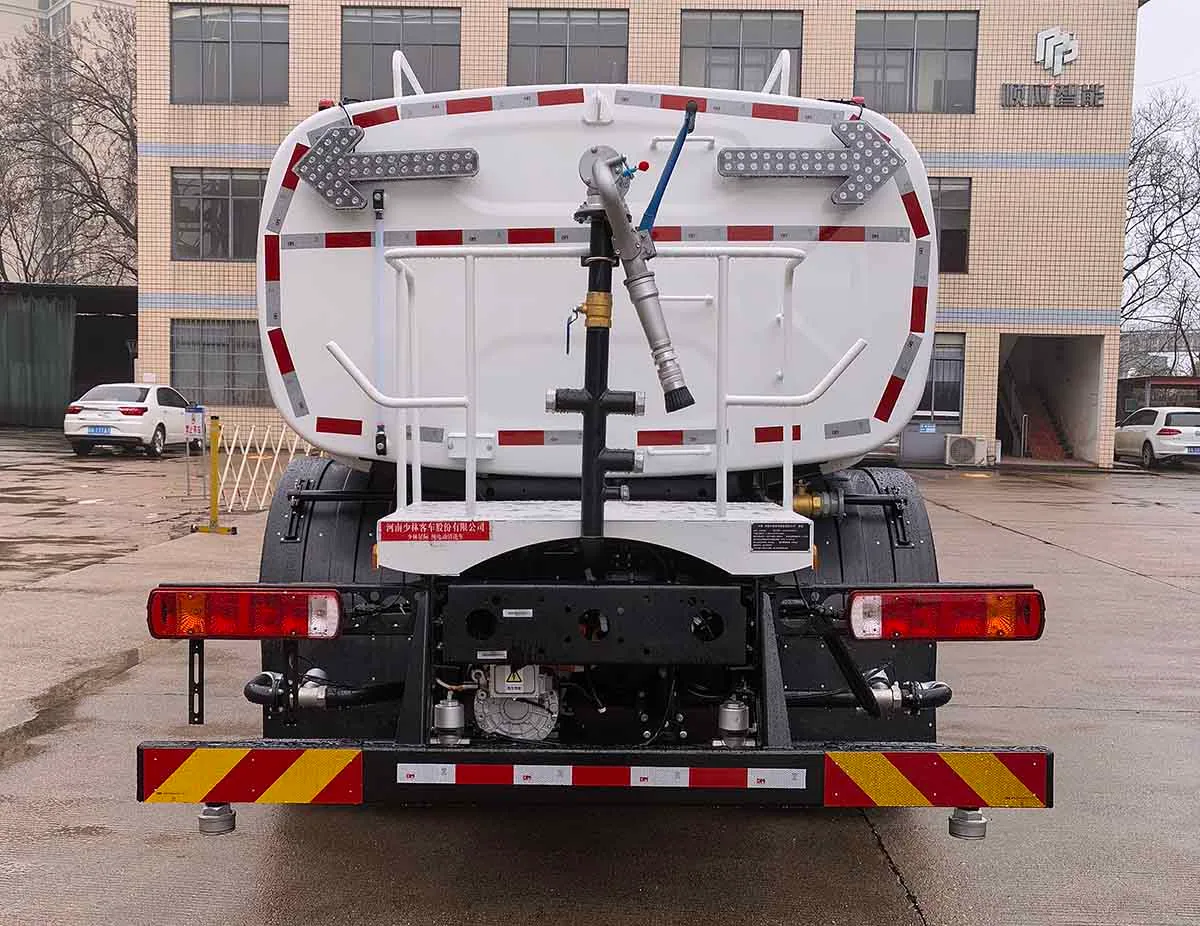

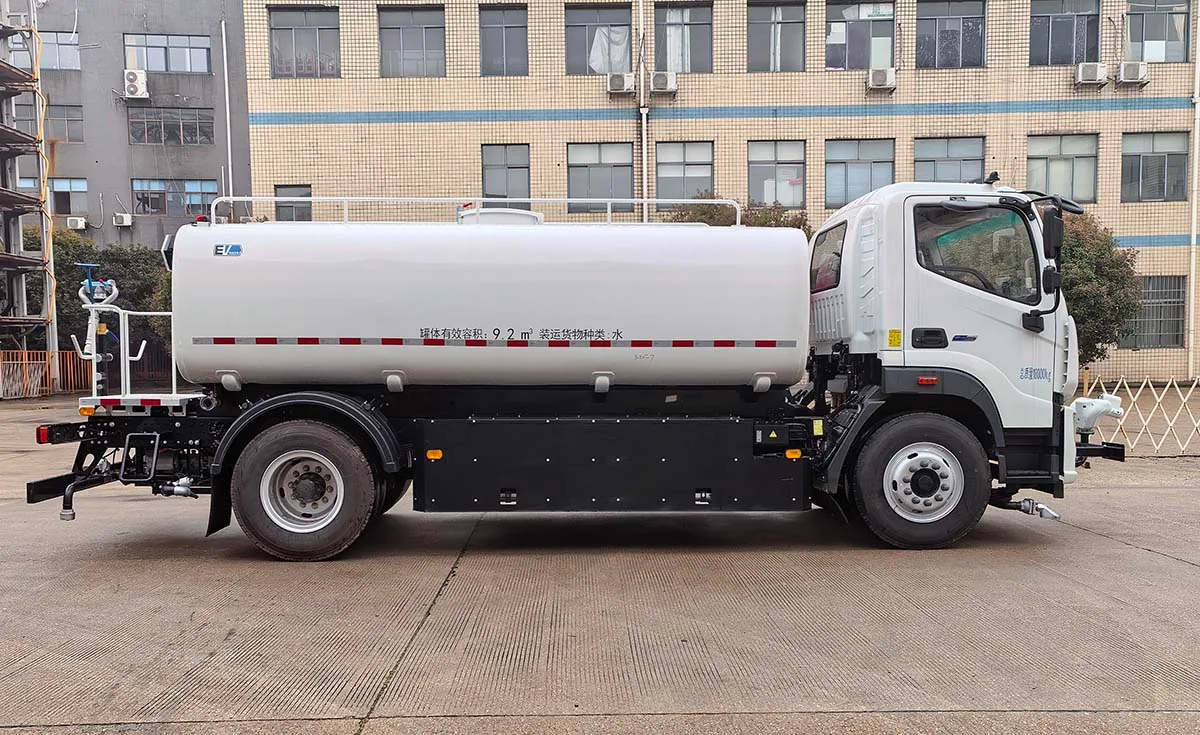

Gallery
SLG5180GQXEVB
in detail.
Multi-angle reference photography documents the working body, cab integration and exterior layout for configuration review.
Engineering & manufacturing
Designed, validated and built as one vehicle.
Shaolin combines vehicle styling and integration, electronic-control development, vehicle and component validation, and five core workshops. Digital PLM, MES, ERP, QMS, WMS and DMS systems support an ISO 9001 quality process from design through delivery.
560,000 m²production footprint
20,000+equipment sets
10,000+delivery capability
490authorized IP rights
Integrated vehicle design
Styling, vehicle layout, engineering data and concurrent engineering are coordinated as one development workflow.
Vehicle & component validation
Durability, economy, braking, steering, thermal, vibration, electrical and three-electric-system tests support platform verification.
Five-workshop production
Stamping, component-making, welding, painting and final assembly provide a complete vehicle manufacturing chain.
Specifications
Reference configuration
Specifications and equipment vary by market and final order. Contact HESU for homologation and configuration confirmation.
24 reference parameters organized into 5 groups.
SourceDetailed configuration sheet · SLG5180GQXEVB
01Vehicle overview 10 parameters
- Overall dimensions
- 8470 × 2500 × 2790 mm
- Wheelbase
- 4500 mm
- Chassis model
- BJ1186EVJA5
- Tank volume
- 9.6 m³
- Maximum gross weight
- 18000 kg
- Rated load capacity
- 9255 kg
- Maximum speed
- 90 km/h
- Battery capacity
- 200 kWh
- Energy type
- Pure electric
- Rated passenger capacity
- 2,3 people
02Vehicle specifications 5 parameters
- Overall dimensions
- 8470×2500,2530×2790 mm
- Curb Weight
- 8550 kg
- Tank volume
- 9.2 m³
- Rated load capacity
- 9255 (3 people), 9320 (2 people) kg
- Constant-speed range
- 330 km
03Chassis configuration 4 parameters
- Motor Model
- FAST/TZ375XSSF-SZF611
- Peak Power
- 175 kW
- Rated Power
- 105 kW
- Battery Type
- Lithium iron phosphate
04Operational performance 4 parameters
- Front Wash Width
- 24 m
- Rear Spray Width
- 14 m
- Low-pressure water flow rate
- 600-800 L/min
- Water Cannon Range
- 38 m
05Optional feature 1 parameters
- ETC On-Board Units with Direct Power Supply
- Available
