Pure-electric compressed waste collection truck
SLG5180ZYSEVB
Published pure-electric municipal configuration
27
Overview
Published pure-electric municipal configuration
SLG5180ZYSEVB is the published pure-electric compressed waste collection truck configuration in Shaolin Bus's 2026 bilingual brochure. Dimensions, capacity and powertrain data shown here are transcribed from the manufacturer table; final configuration and appearance are subject to the delivered vehicle.
01
Overall dimensions
8425 × 2475 × 3040 mm
02
Wheelbase
4200 mm
03
Chassis model
BJ1186EVJA8
04
Effective trash-bin volume
13 m³
05
Maximum gross weight
18000 kg
06
Rated load capacity
6870 kg
07
Maximum speed
89 km/h
08
Battery capacity
246 kWh
Highlights
Municipal operation
The body type, payload and energy storage define the published municipal-duty configuration.
Order-specific confirmation
Final equipment, homologation and appearance are confirmed for the destination market and purchase order.
Gallery
SLG5180ZYSEVB
in detail.

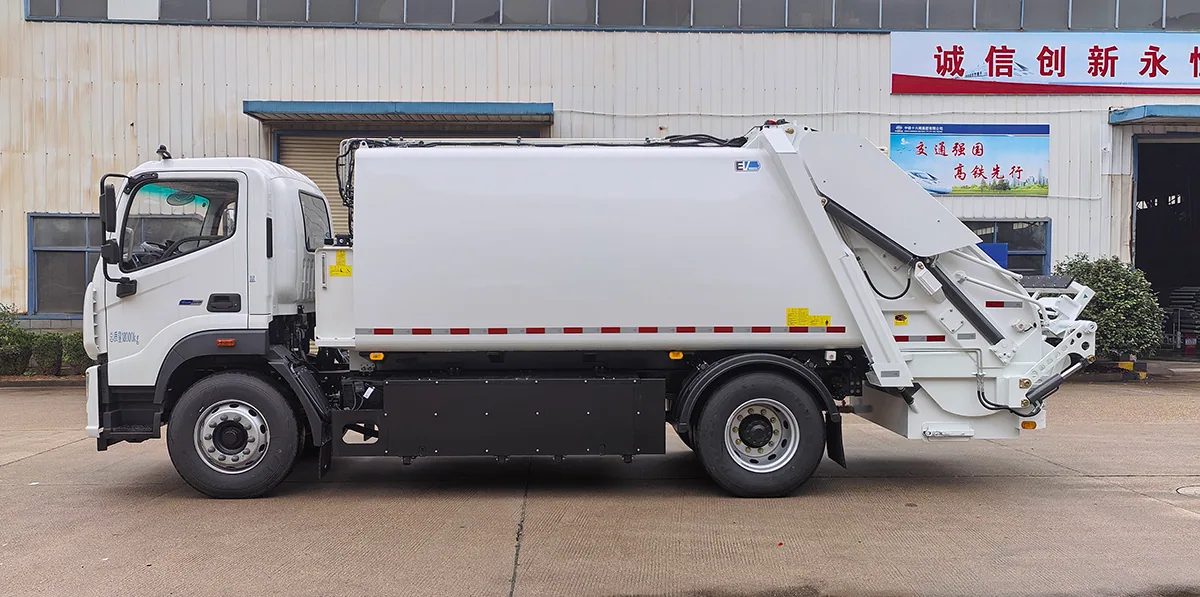

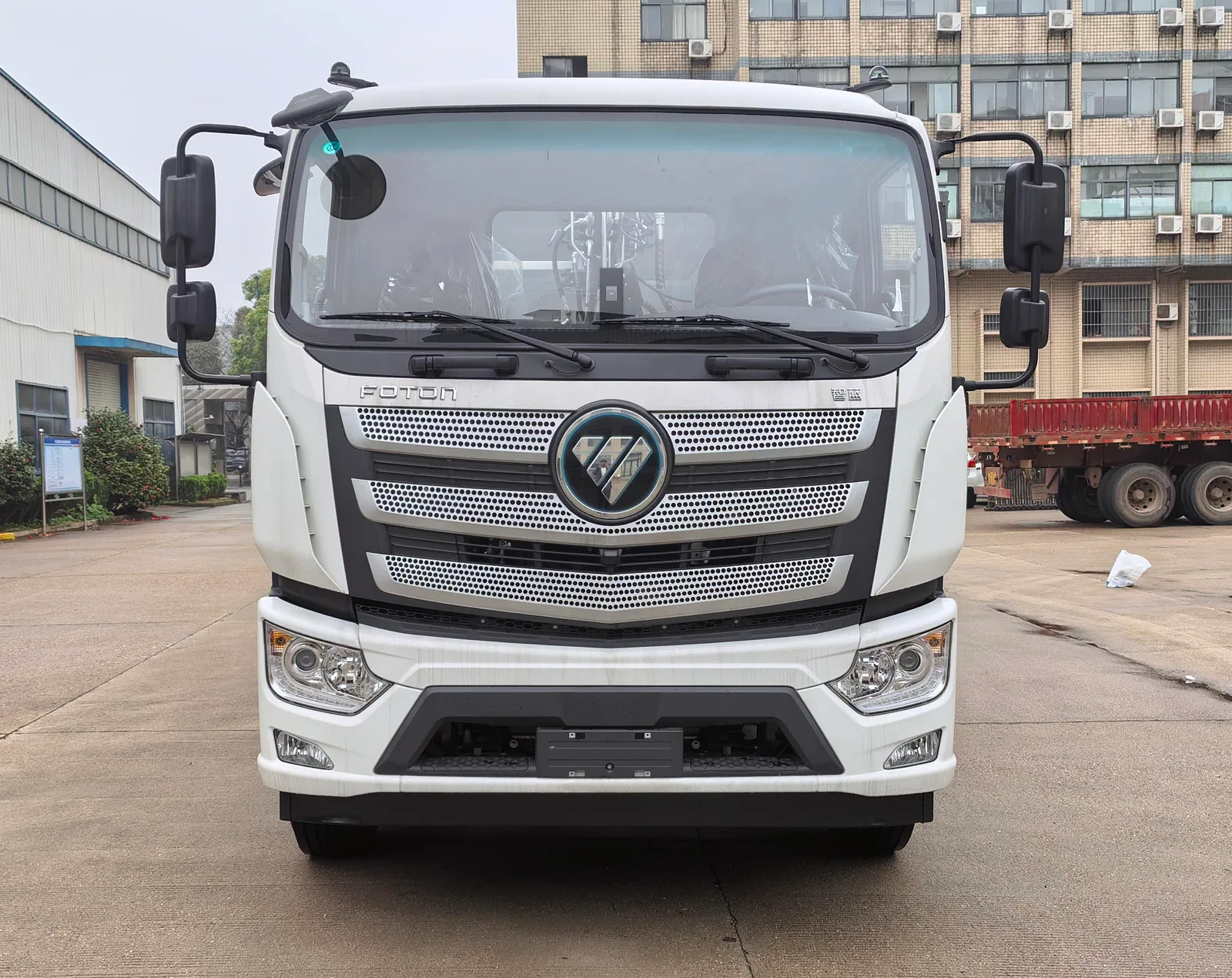

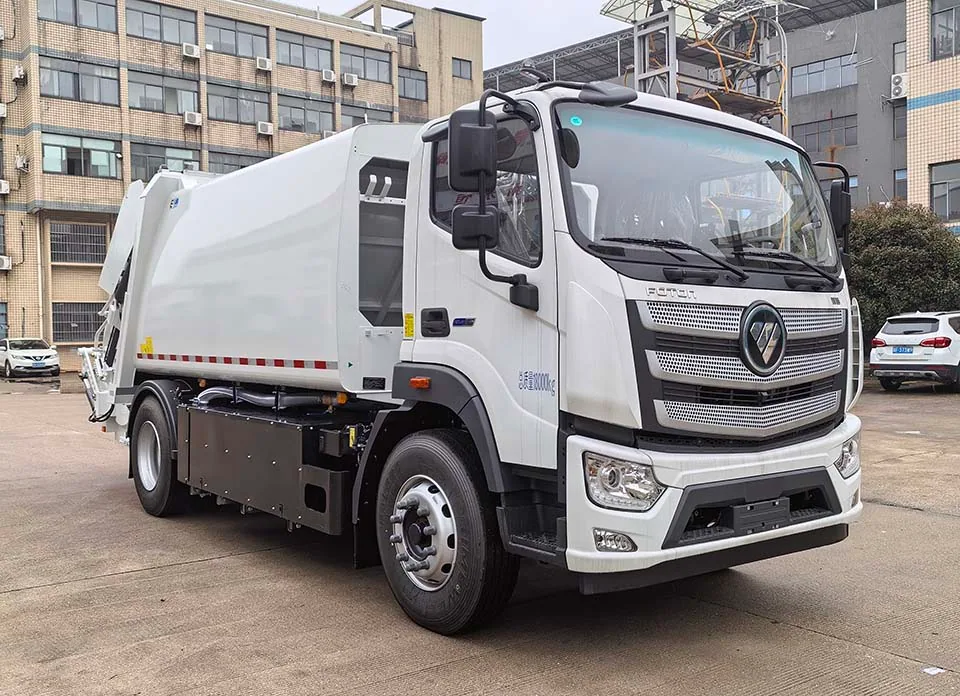

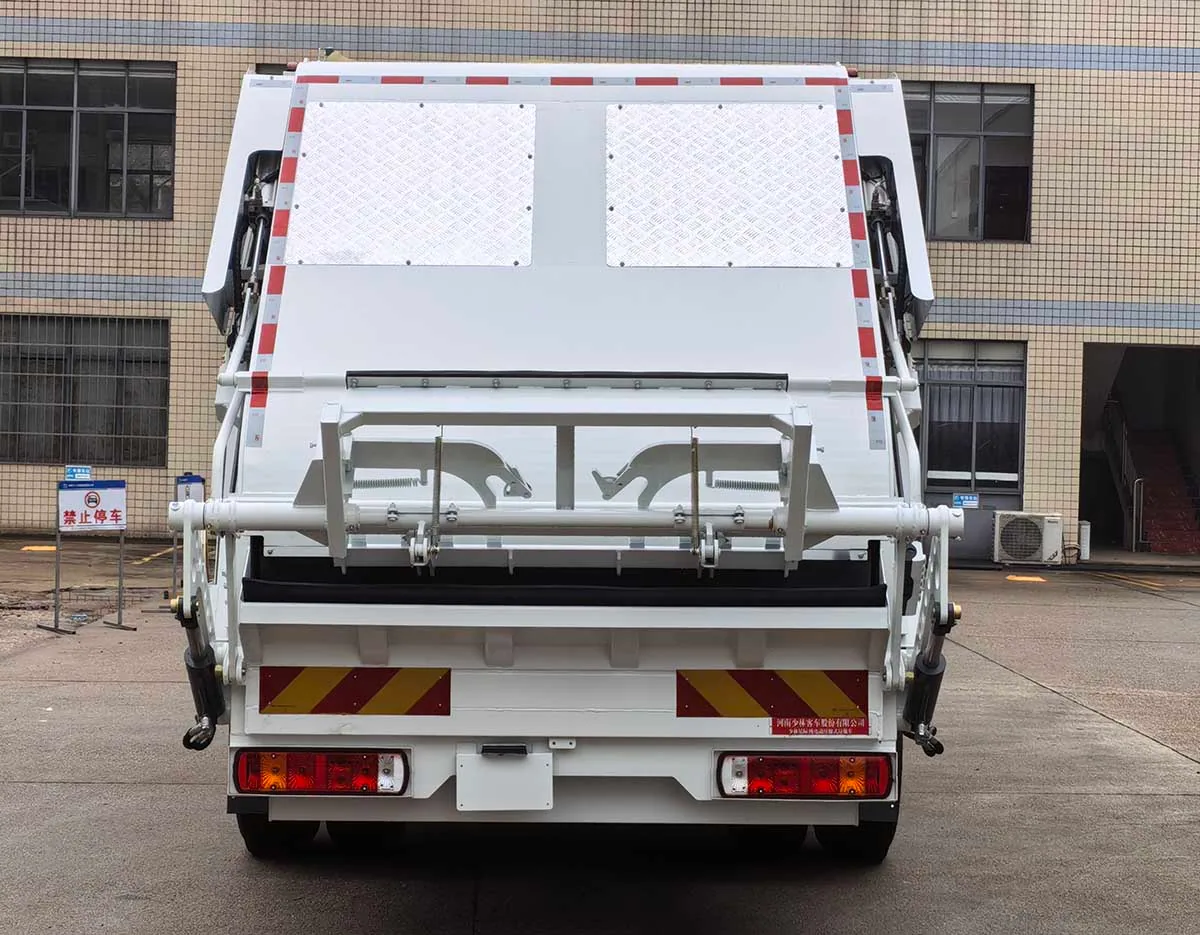

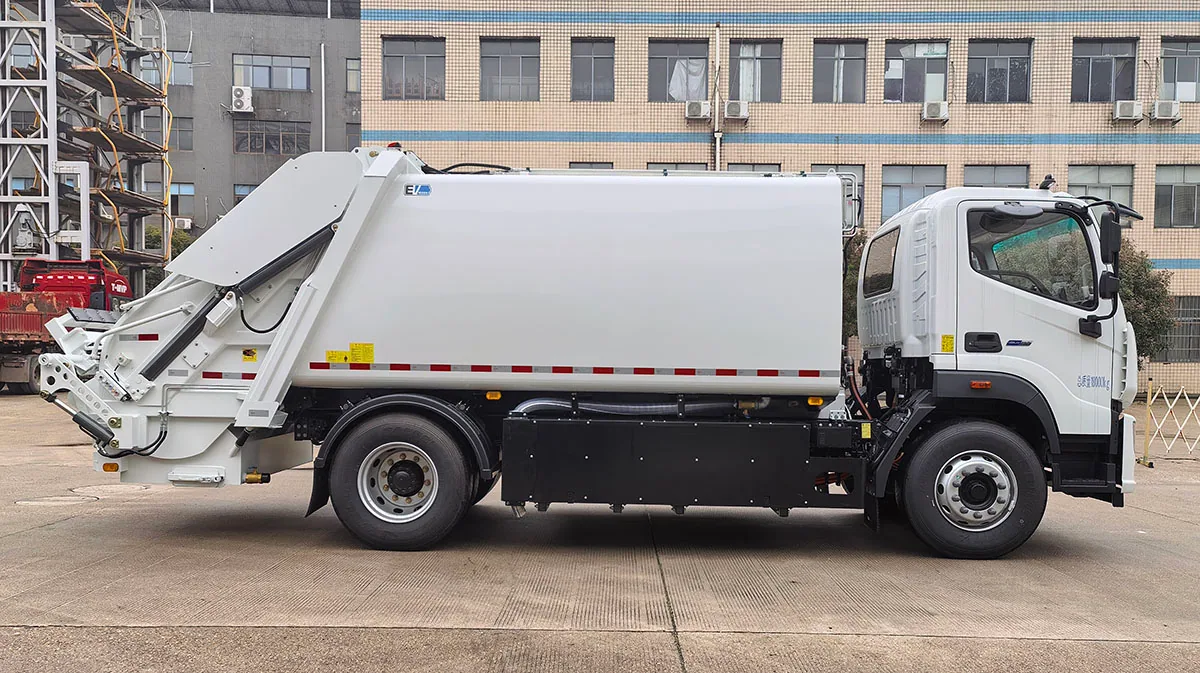

Multi-angle reference photography documents the working body, cab integration and exterior layout for configuration review.
Engineering & manufacturing
Designed, validated and built as one vehicle.
Shaolin combines vehicle styling and integration, electronic-control development, vehicle and component validation, and five core workshops. Digital PLM, MES, ERP, QMS, WMS and DMS systems support an ISO 9001 quality process from design through delivery.
560,000 m²production footprint
20,000+equipment sets
10,000+delivery capability
490authorized IP rights
Integrated vehicle design
Styling, vehicle layout, engineering data and concurrent engineering are coordinated as one development workflow.
Vehicle & component validation
Durability, economy, braking, steering, thermal, vibration, electrical and three-electric-system tests support platform verification.
Five-workshop production
Stamping, component-making, welding, painting and final assembly provide a complete vehicle manufacturing chain.
Specifications
Reference configuration
Specifications and equipment vary by market and final order. Contact HESU for homologation and configuration confirmation.
29 reference parameters organized into 5 groups.
SourceDetailed configuration sheet · SLG5180ZYSEVB
01Vehicle overview 10 parameters
- Overall dimensions
- 8425 × 2475 × 3040 mm
- Wheelbase
- 4200 mm
- Chassis model
- BJ1186EVJA8
- Effective trash-bin volume
- 13 m³
- Maximum gross weight
- 18000 kg
- Rated load capacity
- 6870 kg
- Maximum speed
- 89 km/h
- Battery capacity
- 246 kWh
- Energy type
- Pure electric
- Rated passenger capacity
- 2,3 People
02Vehicle specifications 5 parameters
- Overall dimensions
- 8425×2475×3040 mm
- Curb Weight
- 11000 kg
- Approach Angle/Departure Angle
- 14/11°
- Rated load capacity
- 6870 (2 people), 6805 (3 people) kg
- Constant-speed range
- 370 km
03Chassis configuration 4 parameters
- Motor Model
- FTTB080C
- Peak Power
- 160 kW
- Rated Power
- 80 kW
- Battery Type
- Lithium iron phosphate
04Operational performance 9 parameters
- Compression cycle time
- 14 s
- Loading cycle time
- 10 s
- Duration of a single operating cycle of the unloading device
- 45 s
- Compression Method
- Bidirectional
- Effective Volume of the Trash Can
- 13 m³
- Filler Volume
- 1.1 m³
- Effective Volume of the Sewage Tank
- 0.4 m³
- Hydraulic System Pressure
- 21 MPa
- Loading Form/Volume
- Tipping Bin / 660L, 240L
05Optional feature 1 parameters
- ETC On-Board Units with Direct Power Supply
- Available
