Manufacturer-published data
Core dimensions and capacities are taken directly from the new bilingual brochure.
All products
Pure-electric plug-in garbage truck
SLG5180ZDJEVB
Published pure-electric municipal configuration
28
Overview
Published pure-electric municipal configuration
SLG5180ZDJEVB is the published pure-electric plug-in garbage truck configuration in Shaolin Bus's 2026 bilingual brochure. Dimensions, capacity and powertrain data shown here are transcribed from the manufacturer table; final configuration and appearance are subject to the delivered vehicle.
01
Overall dimensions
7250 × 2480 × 3140 mm
02
Wheelbase
4500 mm
03
Chassis model
BJ1186EVJA8
04
Effective trash-bin volume
19 m³
05
Maximum gross weight
18000 kg
06
Rated load capacity
8330 kg
07
Maximum speed
89 km/h
08
Battery capacity
246 kWh
Highlights
Municipal operation
The body type, payload and energy storage define the published municipal-duty configuration.
Order-specific confirmation
Final equipment, homologation and appearance are confirmed for the destination market and purchase order.

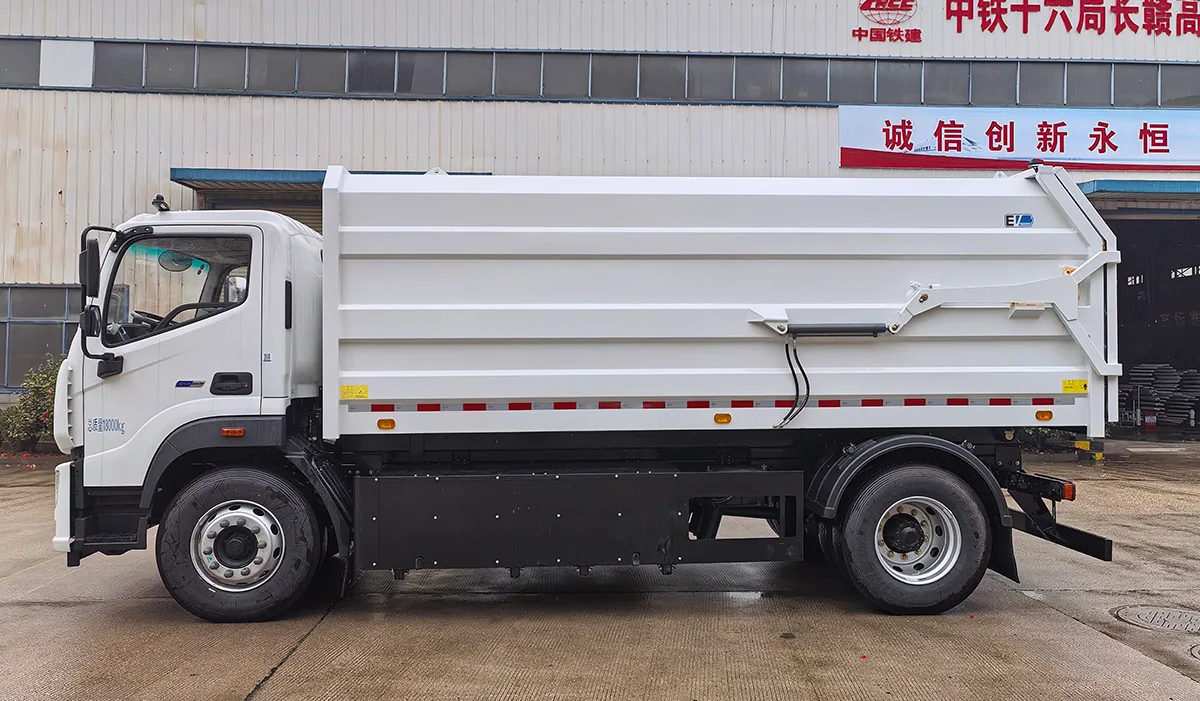

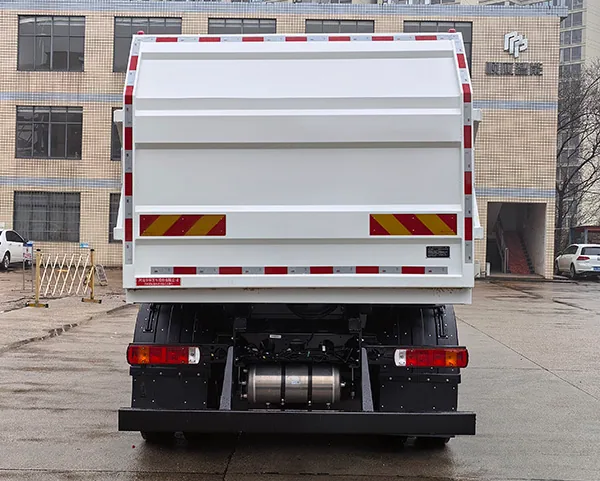

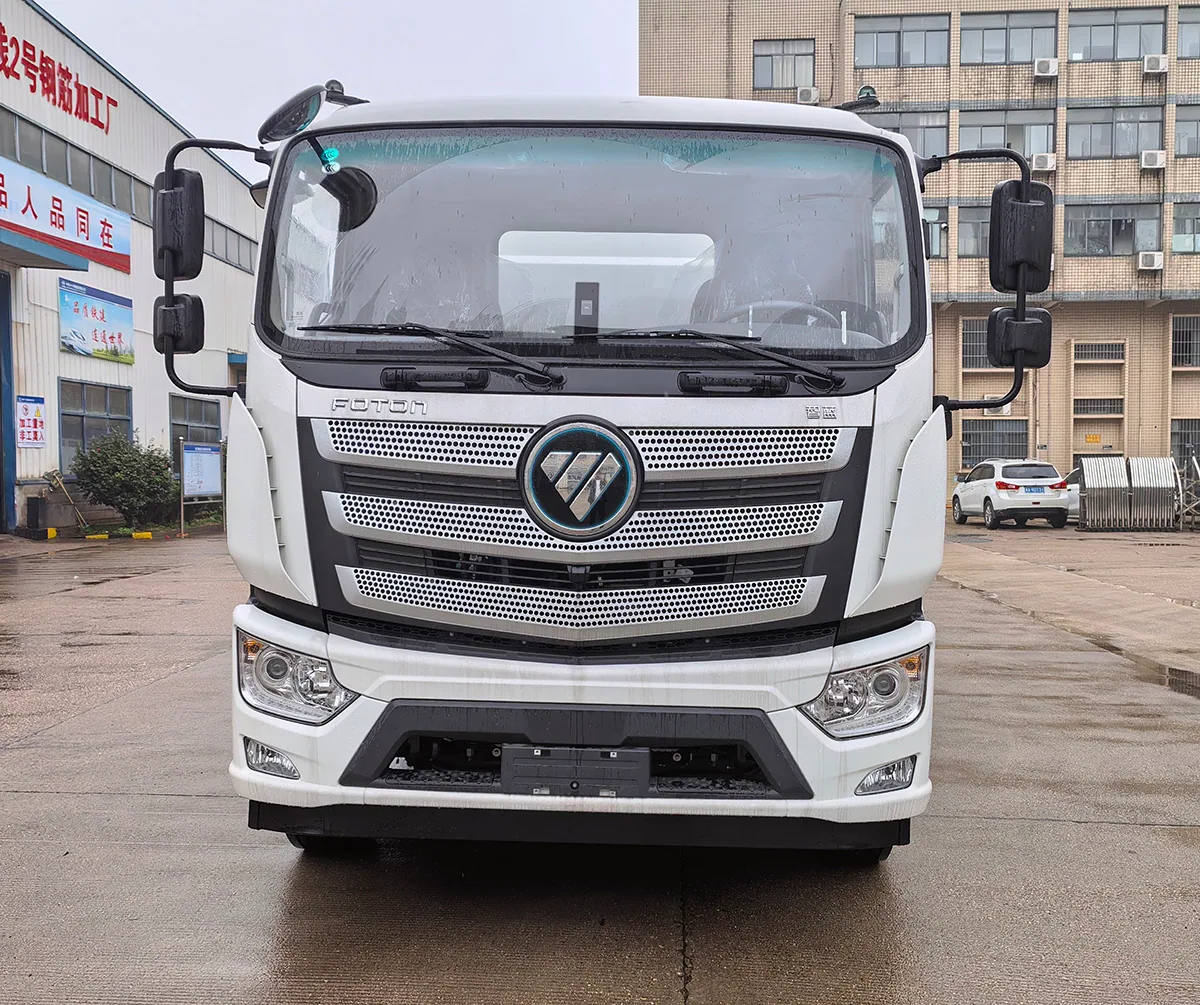

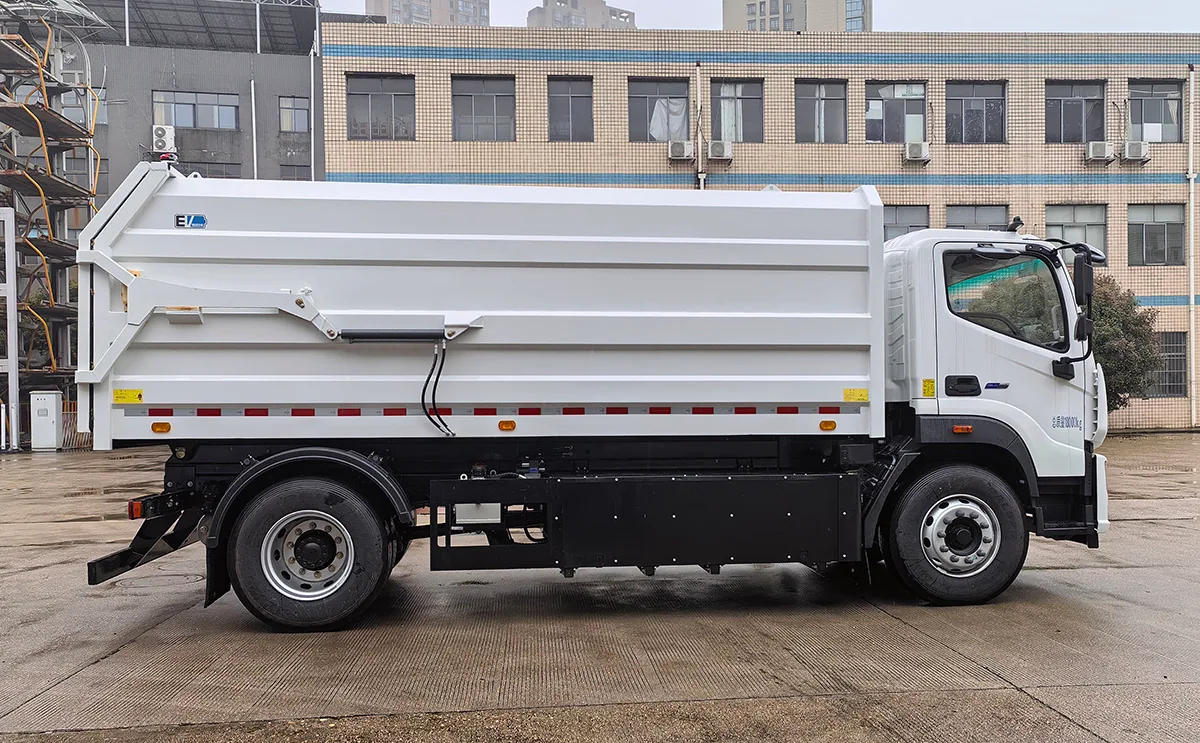

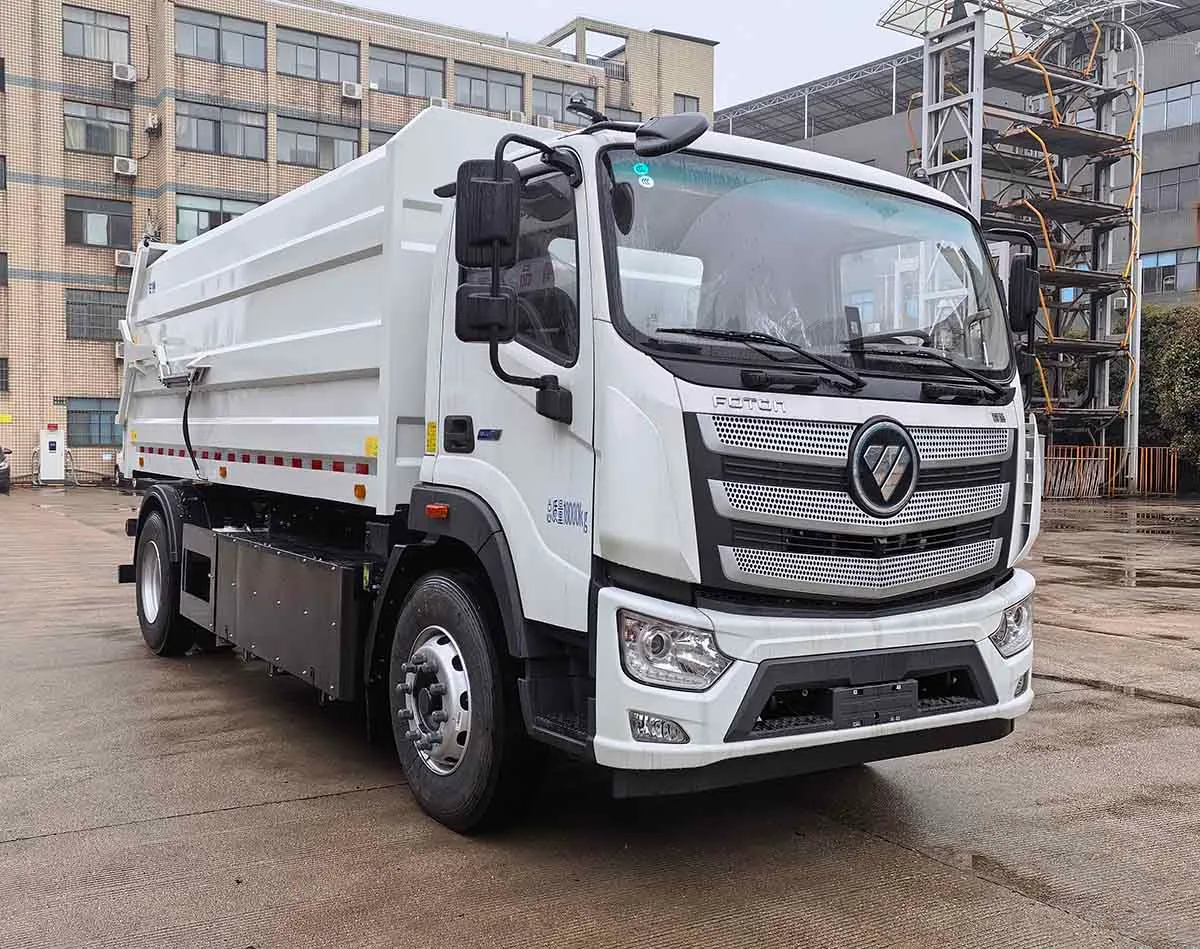

Gallery
SLG5180ZDJEVB
in detail.
Multi-angle reference photography documents the working body, cab integration and exterior layout for configuration review.
Engineering & manufacturing
Designed, validated and built as one vehicle.
Shaolin combines vehicle styling and integration, electronic-control development, vehicle and component validation, and five core workshops. Digital PLM, MES, ERP, QMS, WMS and DMS systems support an ISO 9001 quality process from design through delivery.
560,000 m²production footprint
20,000+equipment sets
10,000+delivery capability
490authorized IP rights
Integrated vehicle design
Styling, vehicle layout, engineering data and concurrent engineering are coordinated as one development workflow.
Vehicle & component validation
Durability, economy, braking, steering, thermal, vibration, electrical and three-electric-system tests support platform verification.
Five-workshop production
Stamping, component-making, welding, painting and final assembly provide a complete vehicle manufacturing chain.
Specifications
Reference configuration
Specifications and equipment vary by market and final order. Contact HESU for homologation and configuration confirmation.
27 reference parameters organized into 5 groups.
SourceDetailed configuration sheet · SLG5180ZDJEVB
01Vehicle overview 10 parameters
- Overall dimensions
- 7250 × 2480 × 3140 mm
- Wheelbase
- 4500 mm
- Chassis model
- BJ1186EVJA8
- Effective trash-bin volume
- 19 m³
- Maximum gross weight
- 18000 kg
- Rated load capacity
- 8330 kg
- Maximum speed
- 89 km/h
- Battery capacity
- 246 kWh
- Energy type
- Pure electric
- Rated passenger capacity
- 2,3 People
02Vehicle specifications 6 parameters
- Overall dimensions
- 7250×2480×3140 mm
- Curb Weight
- 9540 kg
- Approach Angle/Departure Angle
- 14/13°
- Rated load capacity
- 8265 (3 people), 8330 (2 people) kg
- Maximum Climbing Ability
- 30 %
- Constant-speed range
- 365 km
03Chassis configuration 4 parameters
- Motor Model
- FTTB080C
- Peak Power
- 160 kW
- Rated Power
- 80 kW
- Battery Type
- Lithium iron phosphate
04Operational performance 6 parameters
- Internal Dimensions of the Trash Can
- 5325×2260×1670 mm
- Effective Volume of the Trash Can
- 19 m³
- Rear Door Sealing Method
- Sealing strip pressed tightly against the seal
- Waste Tipping Methods
- Rear-Tilt Dump (Center-Mounted Dual-Post)
- Hydraulic Cylinder Operating Modes
- Double acting
- Rear Door Unloading Method
- Hydraulic Front Tilt
05Optional feature 1 parameters
- ETC On-Board Units with Direct Power Supply
- Available
