Manufacturer-published data
Core dimensions and capacities are taken directly from the new bilingual brochure.
All products
Pure-electric van-type detachable garbage truck
SLG5180ZXXEVB
Published pure-electric municipal configuration
29
Overview
Published pure-electric municipal configuration
SLG5180ZXXEVB is the published pure-electric van-type detachable garbage truck configuration in Shaolin Bus's 2026 bilingual brochure. Dimensions, capacity and powertrain data shown here are transcribed from the manufacturer table; final configuration and appearance are subject to the delivered vehicle.
01
Overall dimensions
7550 × 2500 × 2910 mm
02
Wheelbase
4800 mm
03
Chassis model
BJ1186EVJA1
04
Overweight capacity
14 t
05
Maximum gross weight
18000 kg
06
Rated load capacity
8890 kg
07
Maximum speed
85 km/h
08
Battery capacity
246 kWh
Highlights
Municipal operation
The body type, payload and energy storage define the published municipal-duty configuration.
Order-specific confirmation
Final equipment, homologation and appearance are confirmed for the destination market and purchase order.
Gallery
SLG5180ZXXEVB
in detail.

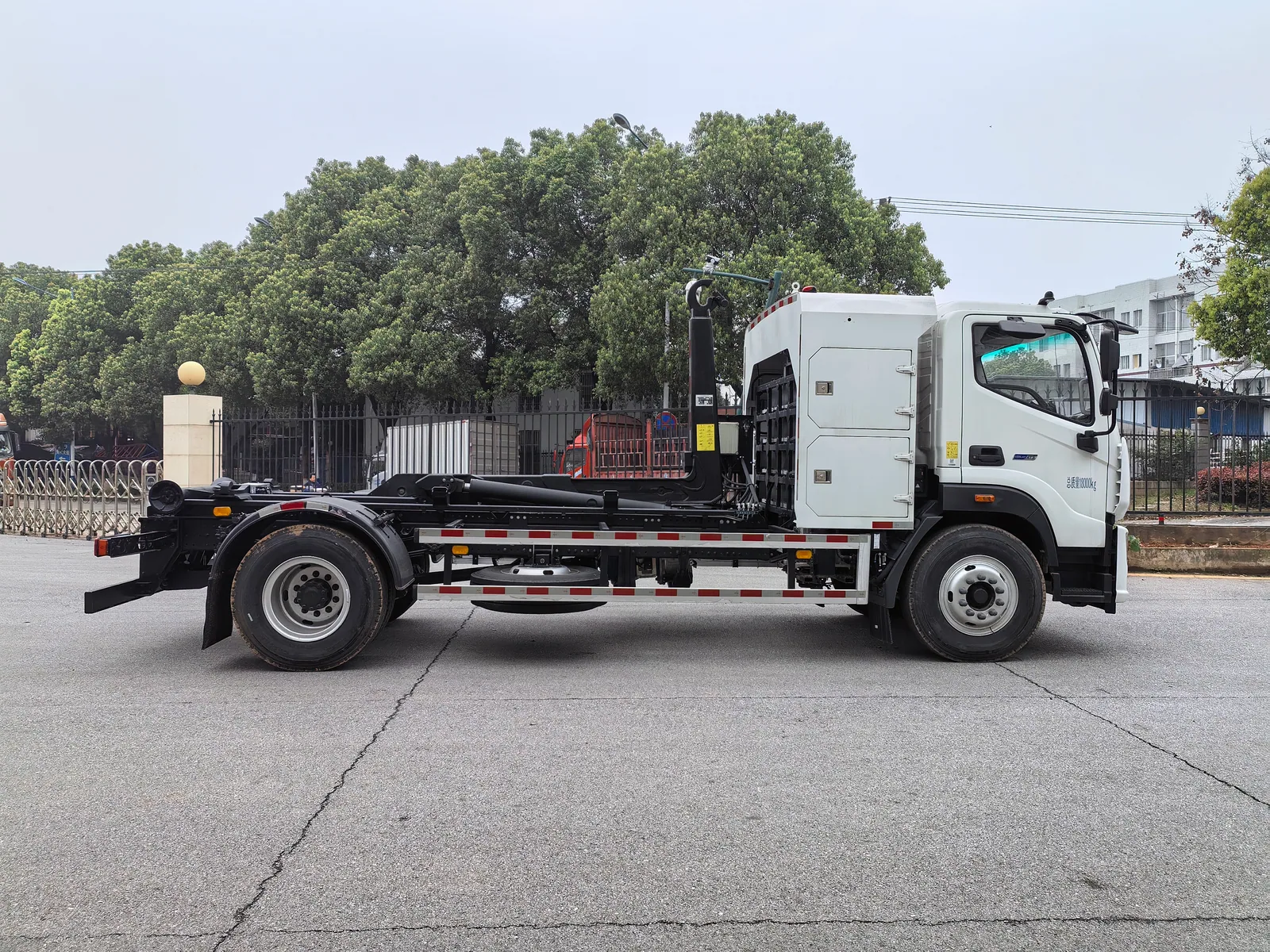

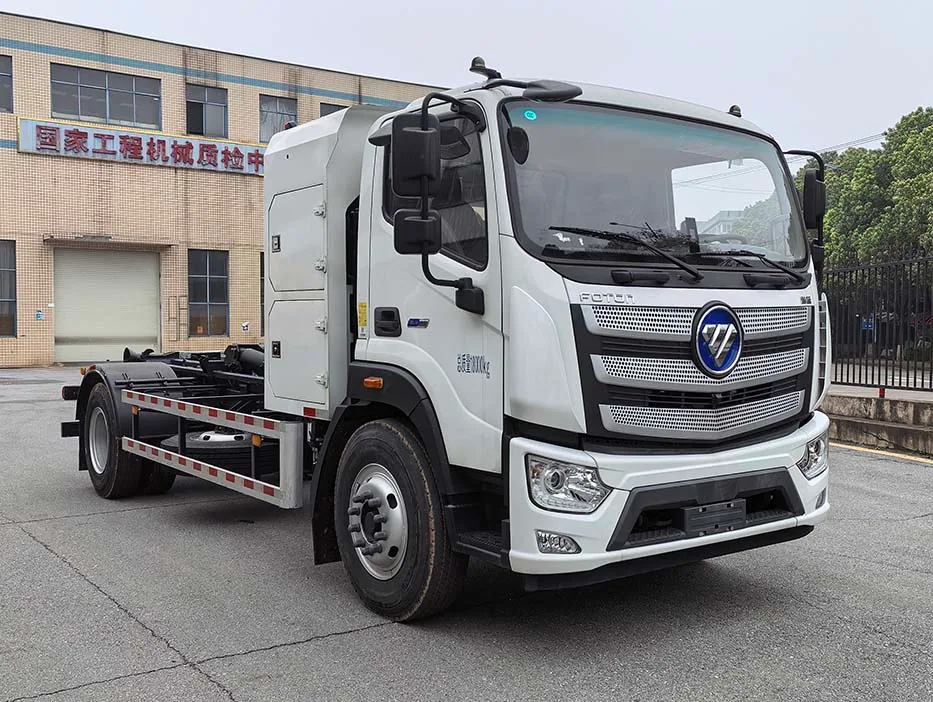

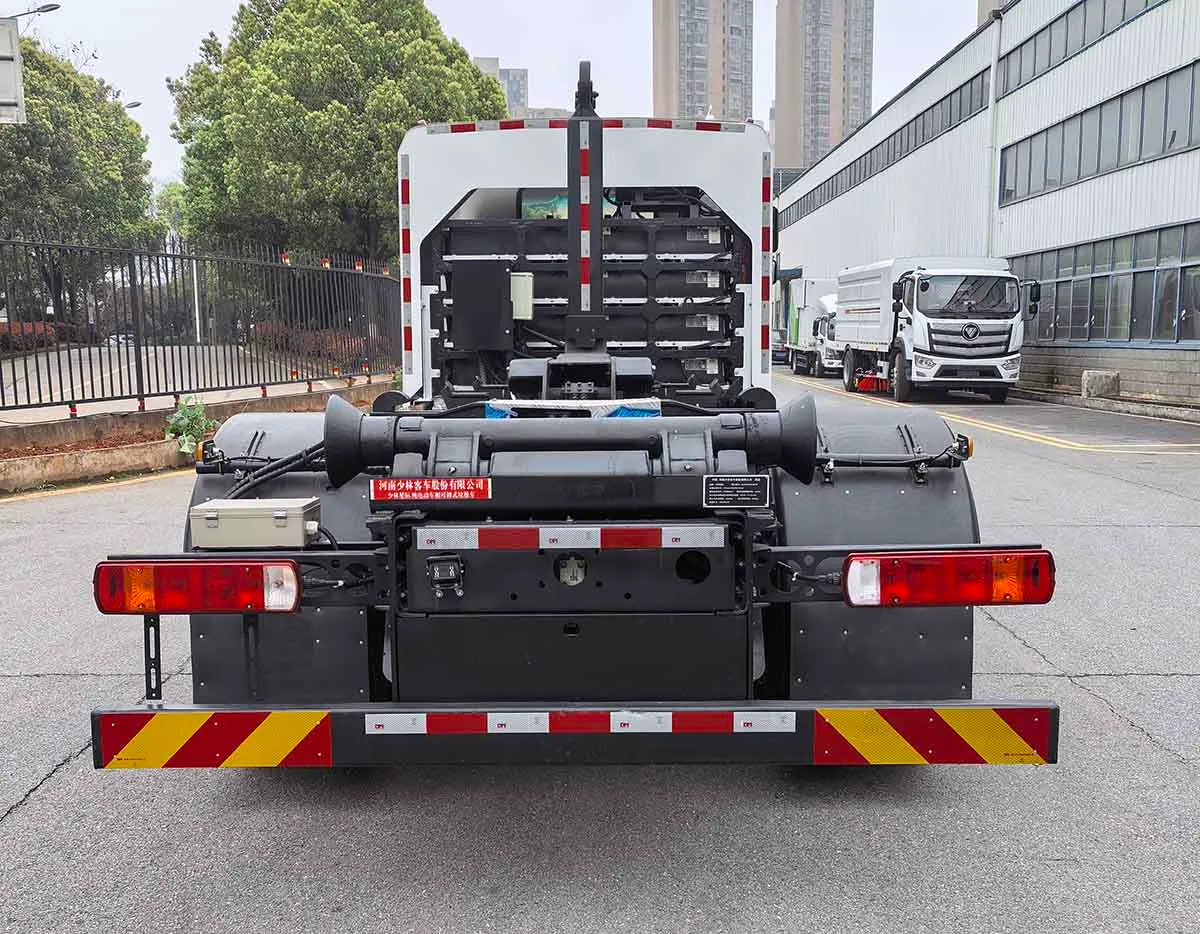

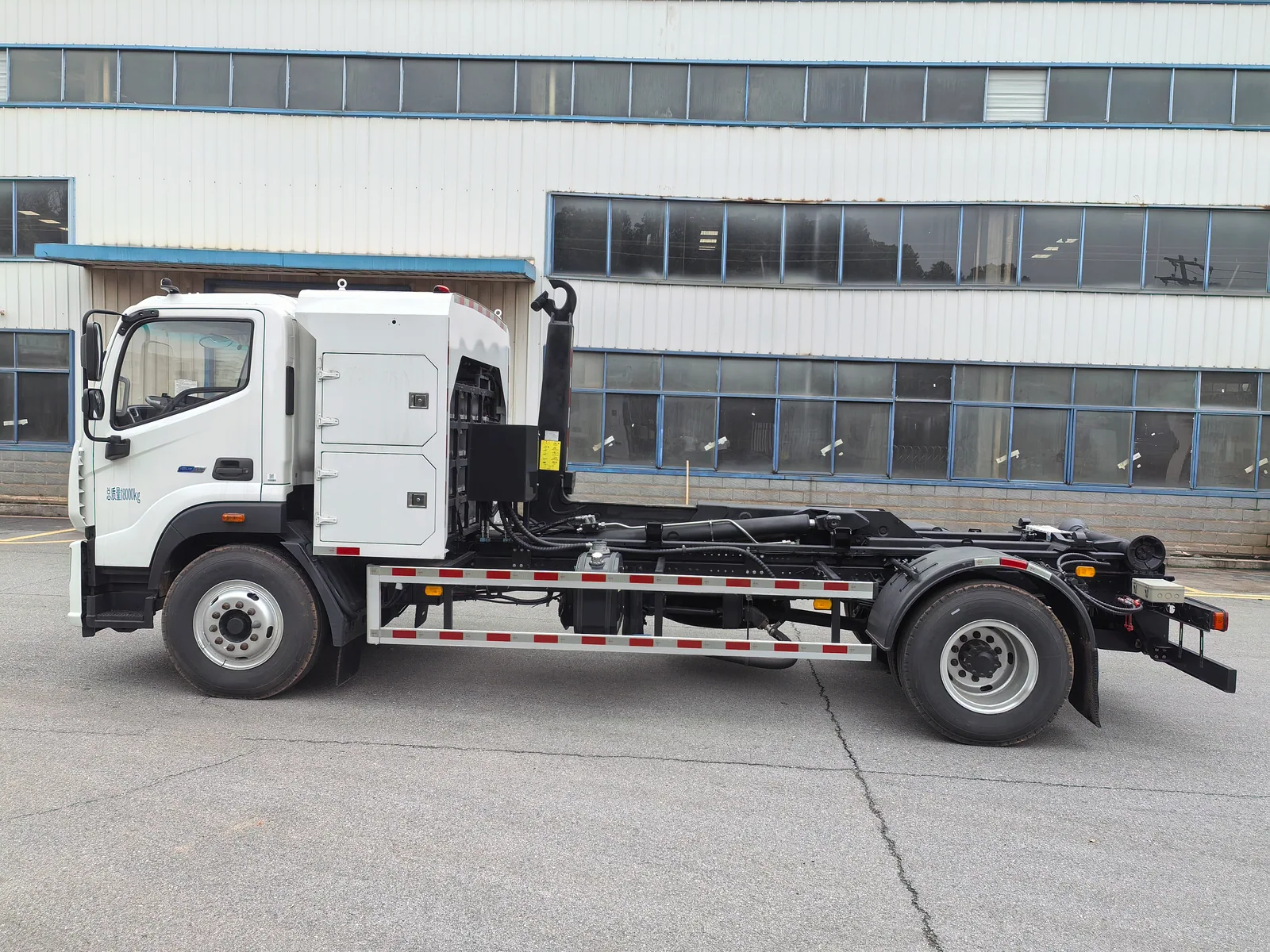

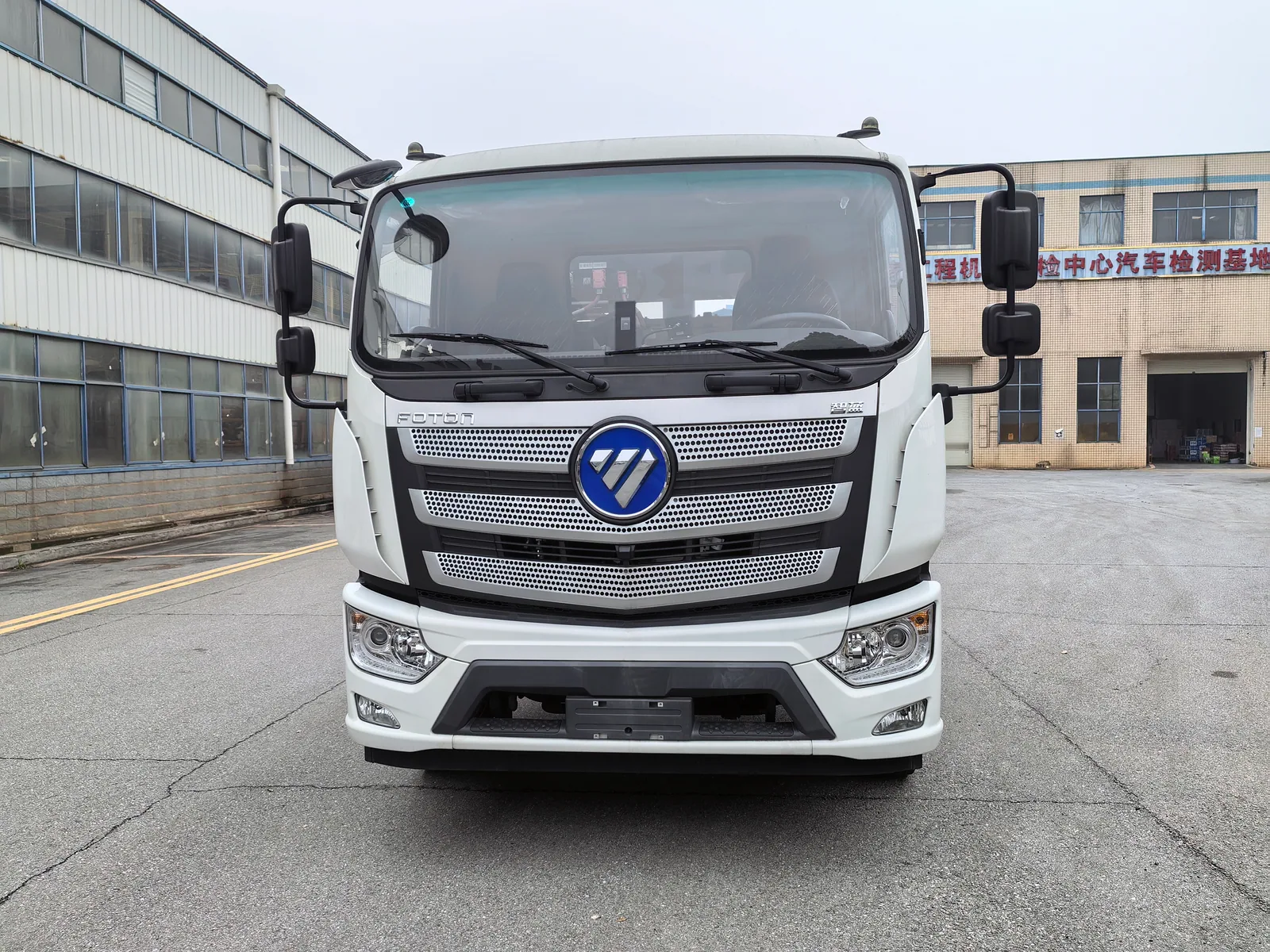

Multi-angle reference photography documents the working body, cab integration and exterior layout for configuration review.
Engineering & manufacturing
Designed, validated and built as one vehicle.
Shaolin combines vehicle styling and integration, electronic-control development, vehicle and component validation, and five core workshops. Digital PLM, MES, ERP, QMS, WMS and DMS systems support an ISO 9001 quality process from design through delivery.
560,000 m²production footprint
20,000+equipment sets
10,000+delivery capability
490authorized IP rights
Integrated vehicle design
Styling, vehicle layout, engineering data and concurrent engineering are coordinated as one development workflow.
Vehicle & component validation
Durability, economy, braking, steering, thermal, vibration, electrical and three-electric-system tests support platform verification.
Five-workshop production
Stamping, component-making, welding, painting and final assembly provide a complete vehicle manufacturing chain.
Specifications
Reference configuration
Specifications and equipment vary by market and final order. Contact HESU for homologation and configuration confirmation.
31 reference parameters organized into 5 groups.
SourceDetailed configuration sheet · SLG5180ZXXEVB
01Vehicle overview 10 parameters
- Overall dimensions
- 7550 × 2500 × 2910 mm
- Wheelbase
- 4800 mm
- Chassis model
- BJ1186EVJA1
- Overweight capacity
- 14 t
- Maximum gross weight
- 18000 kg
- Rated load capacity
- 8890 kg
- Maximum speed
- 85 km/h
- Battery capacity
- 246 kWh
- Energy type
- Pure electric
- Rated passenger capacity
- 2,3 People
02Vehicle specifications 5 parameters
- Overall dimensions
- 7550×2500×2910 mm
- Curb Weight
- 8980 kg
- Approach Angle/Departure Angle
- 16/18°
- Rated load capacity
- 8825 (3 people), 8890 (2 people) kg
- Constant-speed range
- 365 km
03Chassis configuration 4 parameters
- Motor Model
- FTTB080C
- Peak Power
- 160 kW
- Rated Power
- 80 kW
- Battery Type
- Lithium iron phosphate
04Operational performance 11 parameters
- System Pressure
- 30 MPa
- Lifting Capacity
- 14 T
- Dump Angle
- 49°
- Hook Angle
- 1570 mm
- External width of the body rails
- 1060 mm
- Distance from the hook center to the rear wheel axle center
- 4100 mm
- Matching Body
- 12 m³
- Swing Arm Stroke
- 900 mm
- Clearance height of the box body track
- 150 mm
- Time of Loading and Unloading
- 60 s
- Dump Operation Time
- 60 s
05Optional feature 1 parameters
- ETC On-Board Units with Direct Power Supply
- Available
