Manufacturer-published data
Core dimensions and capacities are taken directly from the new bilingual brochure.
All products
18-ton pure-electric washing and sweeping vehicle
SLG5180TXSEVB
Published pure-electric municipal configuration
24
Overview
Published pure-electric municipal configuration
SLG5180TXSEVB is the published 18-ton pure-electric washing and sweeping vehicle configuration in Shaolin Bus's 2026 bilingual brochure. Dimensions, capacity and powertrain data shown here are transcribed from the manufacturer table; final configuration and appearance are subject to the delivered vehicle.
01
Overall dimensions
8175 × 2470 × 2995 mm
02
Wheelbase
4800 mm
03
Chassis model
BJ1186EVJA1
04
Scanning width
3.6 m
05
Maximum gross weight
18000 kg
06
Rated load capacity
5760 kg
07
Maximum speed
90 km/h
08
Battery capacity
246 kWh
Highlights
Municipal operation
The body type, payload and energy storage define the published municipal-duty configuration.
Order-specific confirmation
Final equipment, homologation and appearance are confirmed for the destination market and purchase order.
Gallery
SLG5180TXSEVB
in detail.

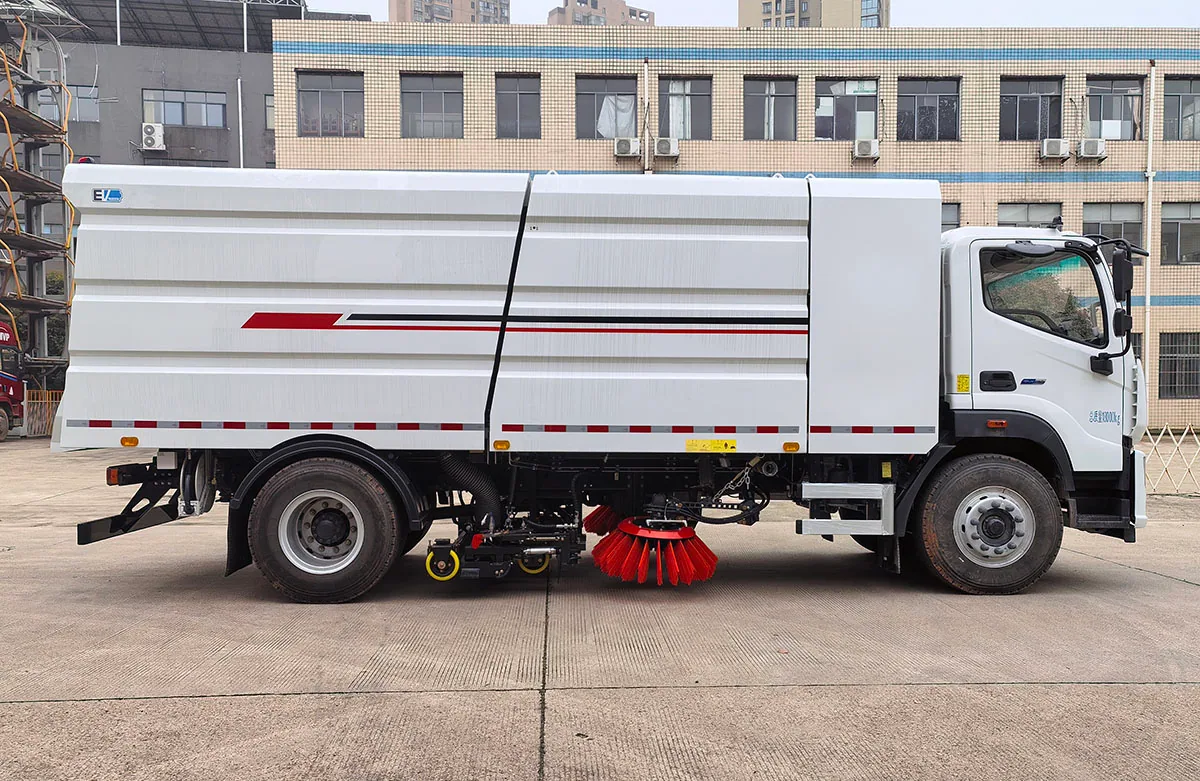

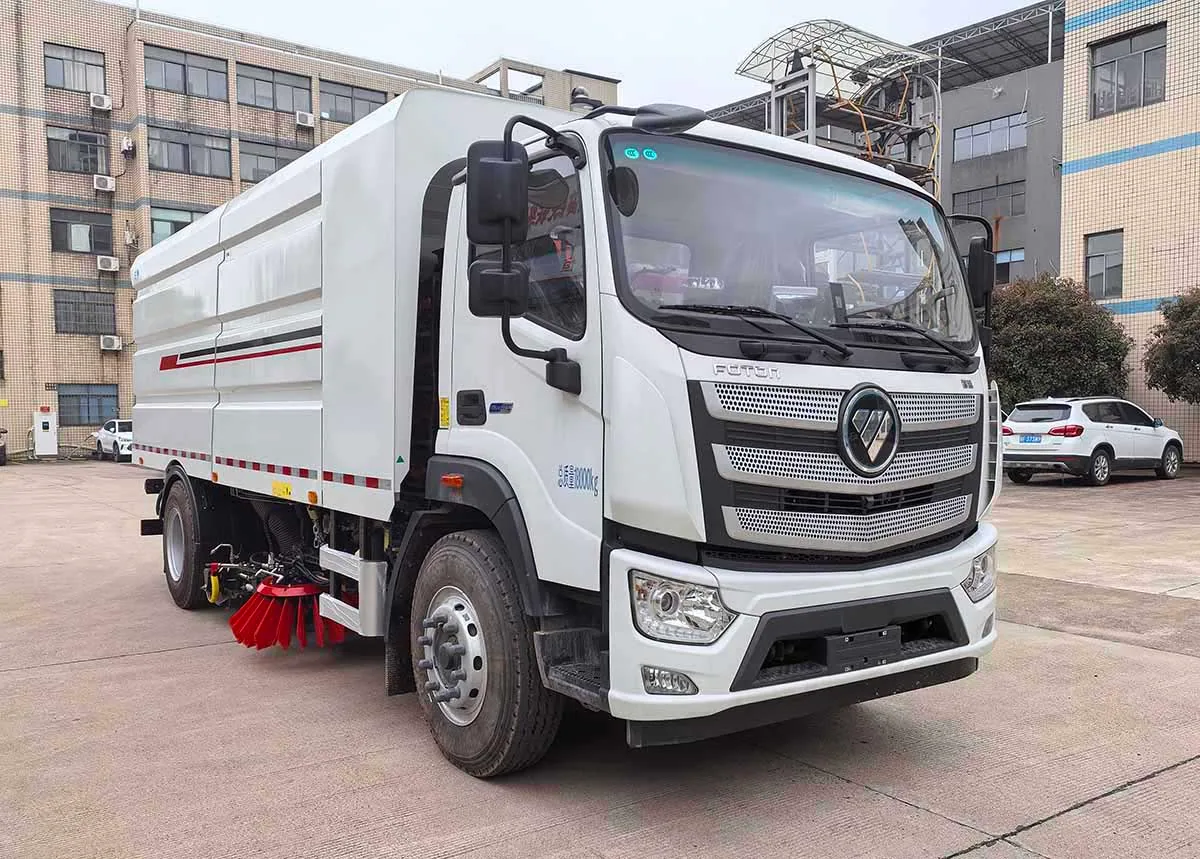

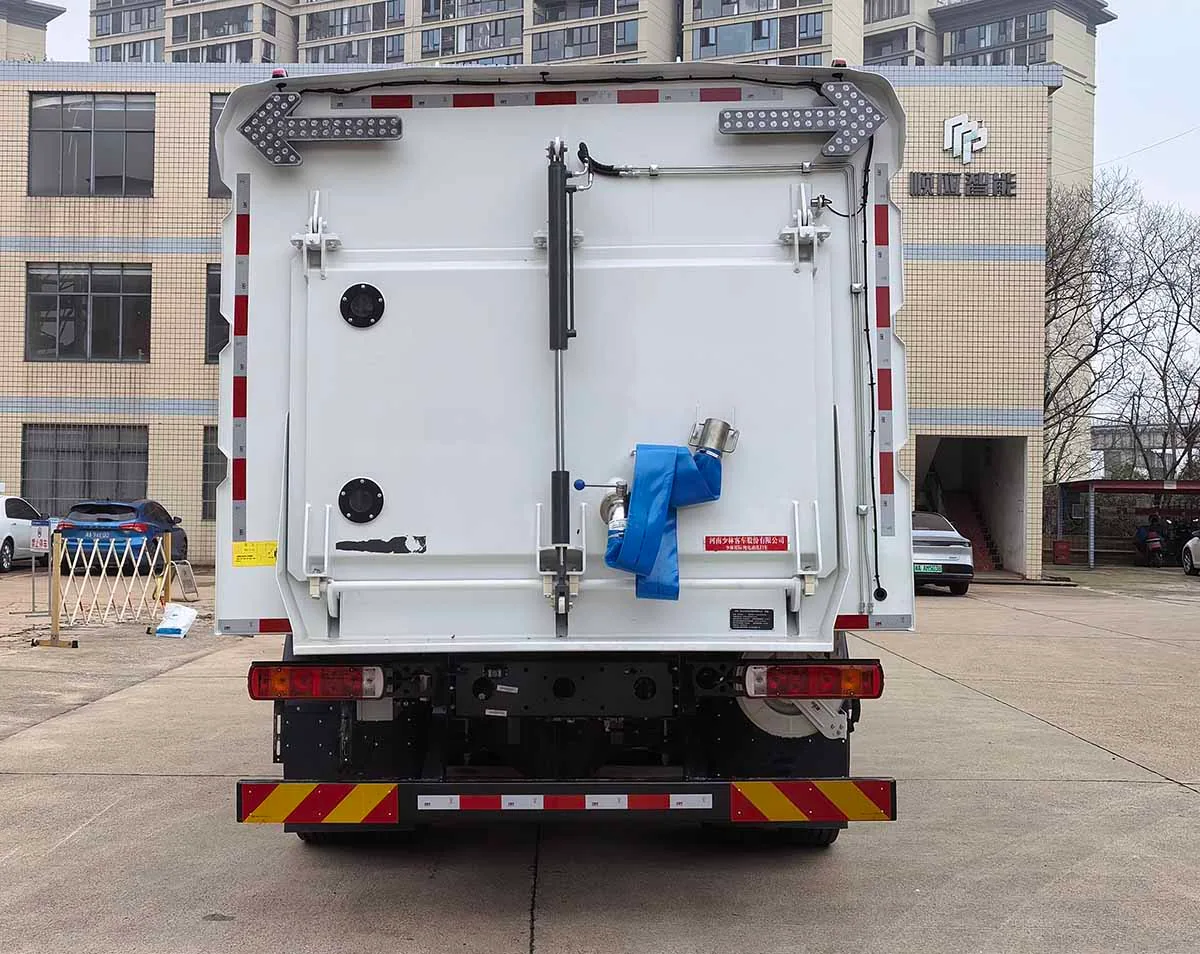

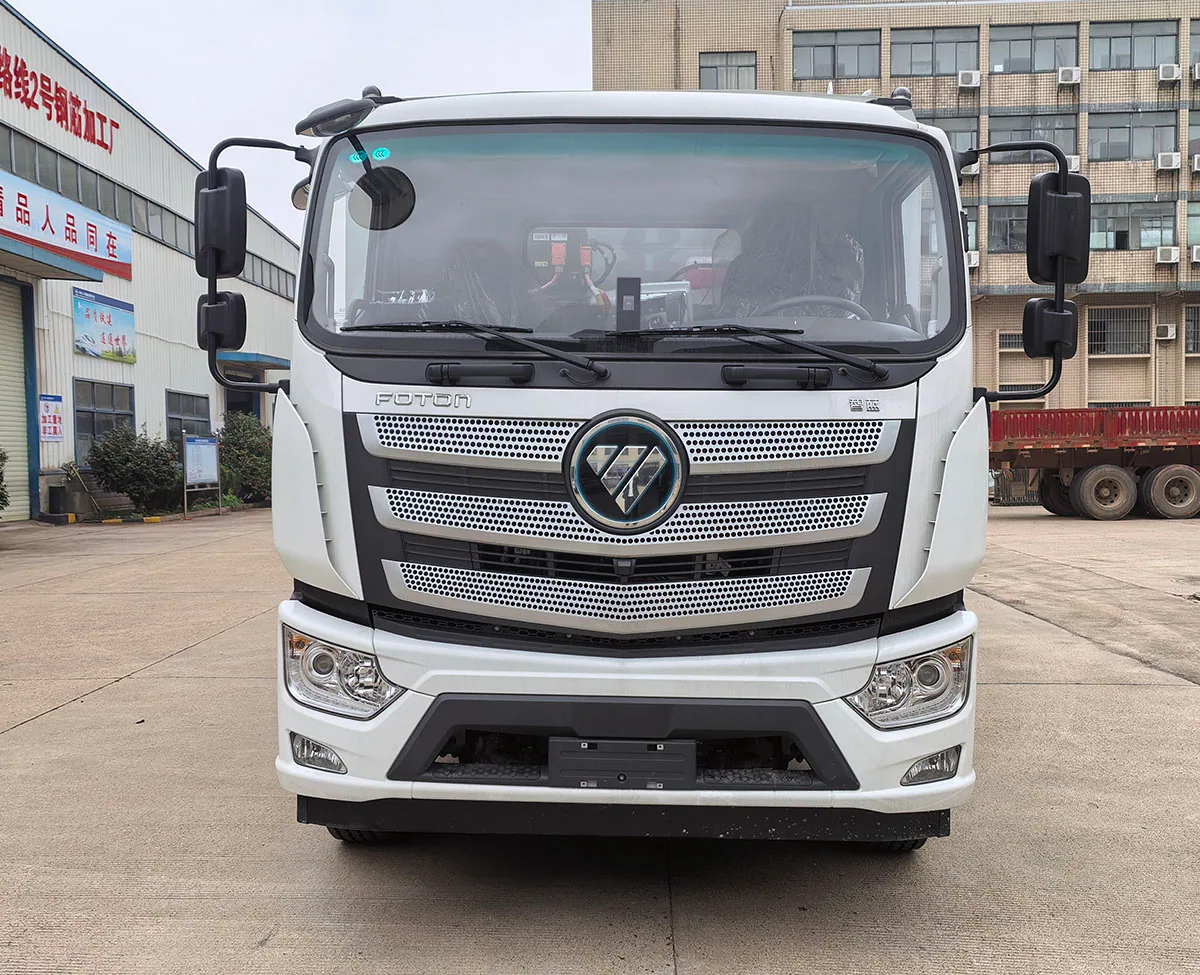

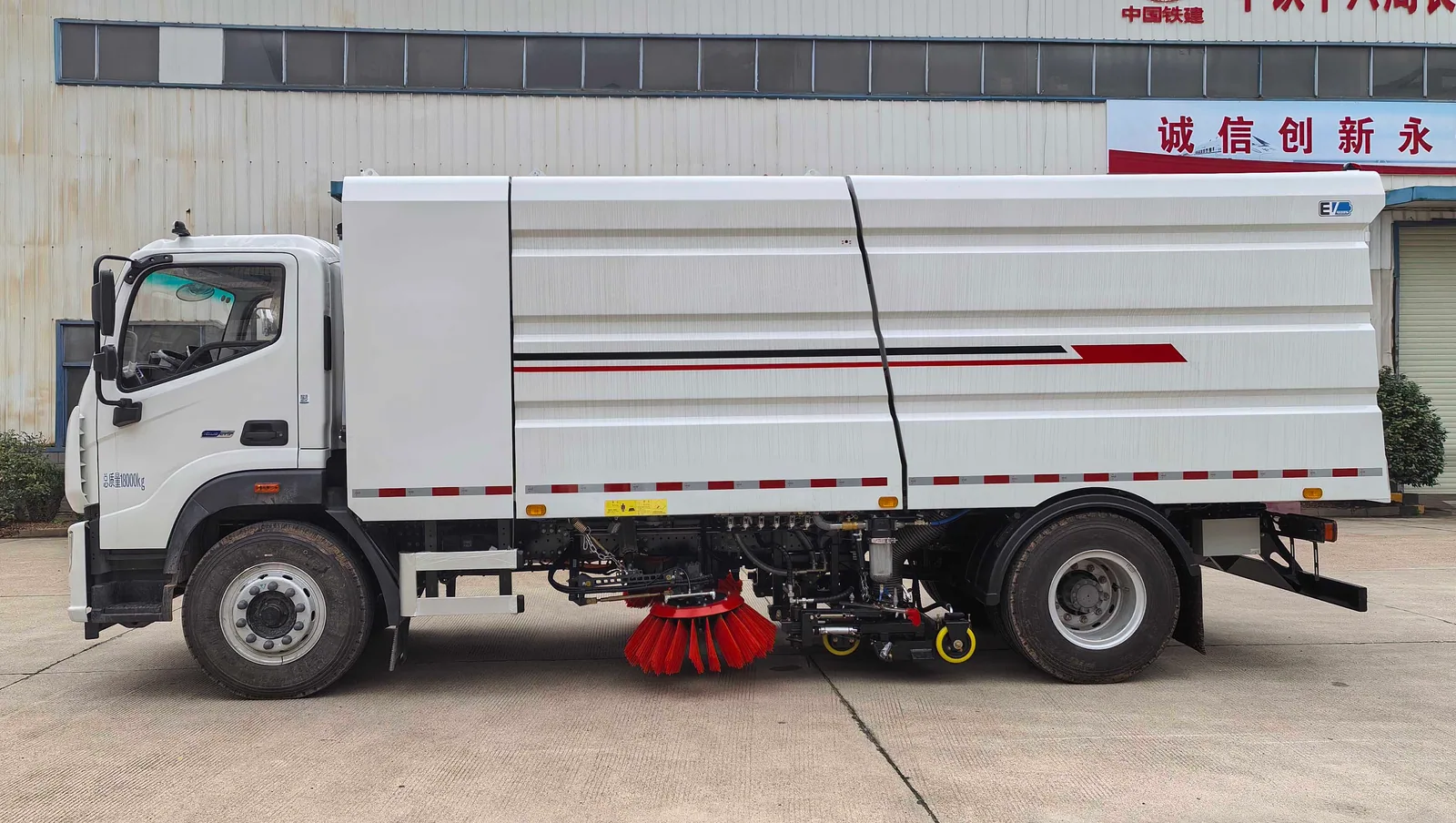

Multi-angle reference photography documents the working body, cab integration and exterior layout for configuration review.
Engineering & manufacturing
Designed, validated and built as one vehicle.
Shaolin combines vehicle styling and integration, electronic-control development, vehicle and component validation, and five core workshops. Digital PLM, MES, ERP, QMS, WMS and DMS systems support an ISO 9001 quality process from design through delivery.
560,000 m²production footprint
20,000+equipment sets
10,000+delivery capability
490authorized IP rights
Integrated vehicle design
Styling, vehicle layout, engineering data and concurrent engineering are coordinated as one development workflow.
Vehicle & component validation
Durability, economy, braking, steering, thermal, vibration, electrical and three-electric-system tests support platform verification.
Five-workshop production
Stamping, component-making, welding, painting and final assembly provide a complete vehicle manufacturing chain.
Specifications
Reference configuration
Specifications and equipment vary by market and final order. Contact HESU for homologation and configuration confirmation.
28 reference parameters organized into 5 groups.
SourceDetailed configuration sheet · SLG5180TXSEVB
01Vehicle overview 10 parameters
- Overall dimensions
- 8175 × 2470 × 2995 mm
- Wheelbase
- 4800 mm
- Chassis model
- BJ1186EVJA1
- Scanning width
- 3.6 m
- Maximum gross weight
- 18000 kg
- Rated load capacity
- 5760 kg
- Maximum speed
- 90 km/h
- Battery capacity
- 246 kWh
- Energy type
- Pure electric
- Rated passenger capacity
- 2、3 People
02Vehicle specifications 5 parameters
- Overall dimensions
- 8175×2470，2530×2995,3100，3250 mm
- Curb Weight
- 12110 kg
- Approach Angle/Departure Angle
- 17/11°
- Rated load capacity
- 5695 (3 people), 5760 (2 people) kg
- Constant-speed range
- 370 km
03Chassis configuration 4 parameters
- Motor Model
- FTTB080C
- Peak Power
- 160 kW
- Peak torque
- 1100 N·m
- Battery Type
- Lithium iron phosphate
04Operational performance 8 parameters
- Maximum Sweeping and Washing Width
- 3.6 m
- Rated Flow Rate of Wash Water
- 142 L/min
- Rated Pressure of Wash Water
- 10 MPa
- Maximum Sweeping Capacity
- 70000 m³/h
- Cleaning Speed
- 3-20 km/h
- Clean Water Tank Capacity
- 9000 L
- Discharge angle
- 45°
- Trash Can Capacity
- 7300 L
05Optional feature 1 parameters
- ETC On-Board Units with Direct Power Supply
- Available
