Manufacturer-published data
Core dimensions and capacities are taken directly from the new bilingual brochure.
All products
31-ton pure-electric detachable garbage truck
SLG5310ZXXEVY
Published pure-electric municipal configuration
23
Overview
Published pure-electric municipal configuration
SLG5310ZXXEVY is the published 31-ton pure-electric detachable garbage truck configuration in Shaolin Bus's 2026 bilingual brochure. Dimensions, capacity and powertrain data shown here are transcribed from the manufacturer table; final configuration and appearance are subject to the delivered vehicle.
01
Overall dimensions
9830 × 2550 × 3320 mm
02
Wheelbase
2000+3400+1400 mm
03
Chassis model
BYD1310C2BEVC5
04
Maximum gross weight
31000 kg
05
Rated load capacity
15570 kg
06
Maximum speed
89 km/h
07
Battery capacity
348 kWh
Highlights
Municipal operation
The body type, payload and energy storage define the published municipal-duty configuration.
Order-specific confirmation
Final equipment, homologation and appearance are confirmed for the destination market and purchase order.

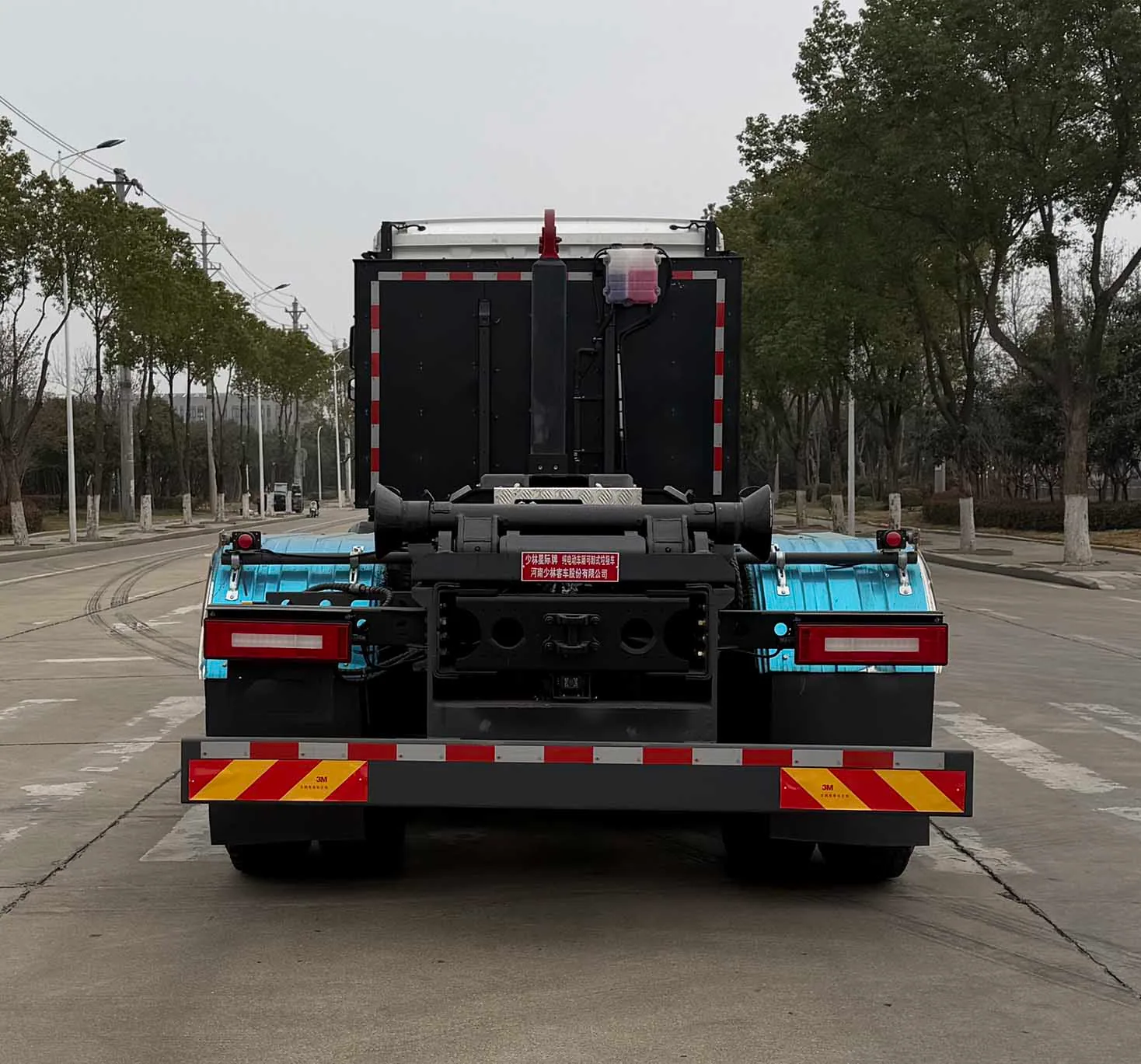

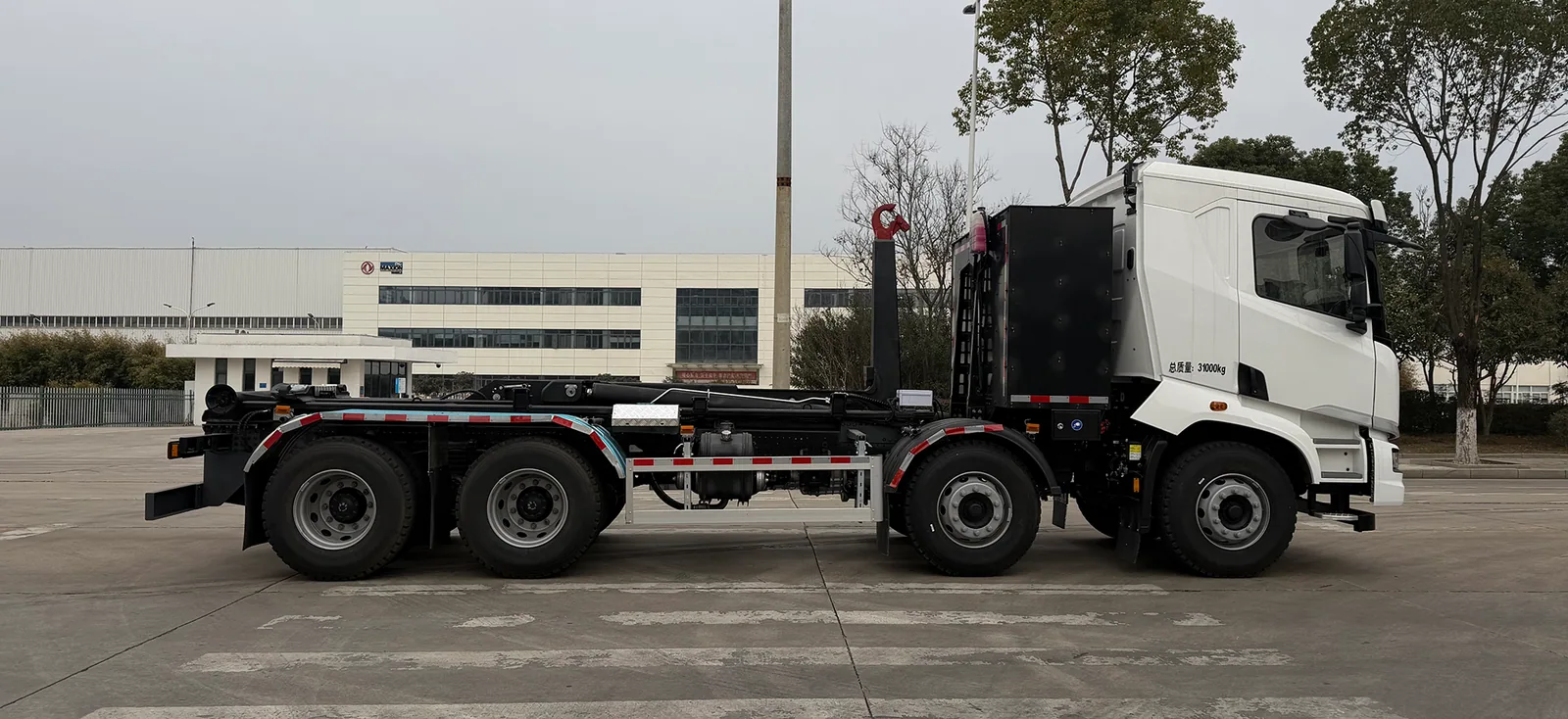

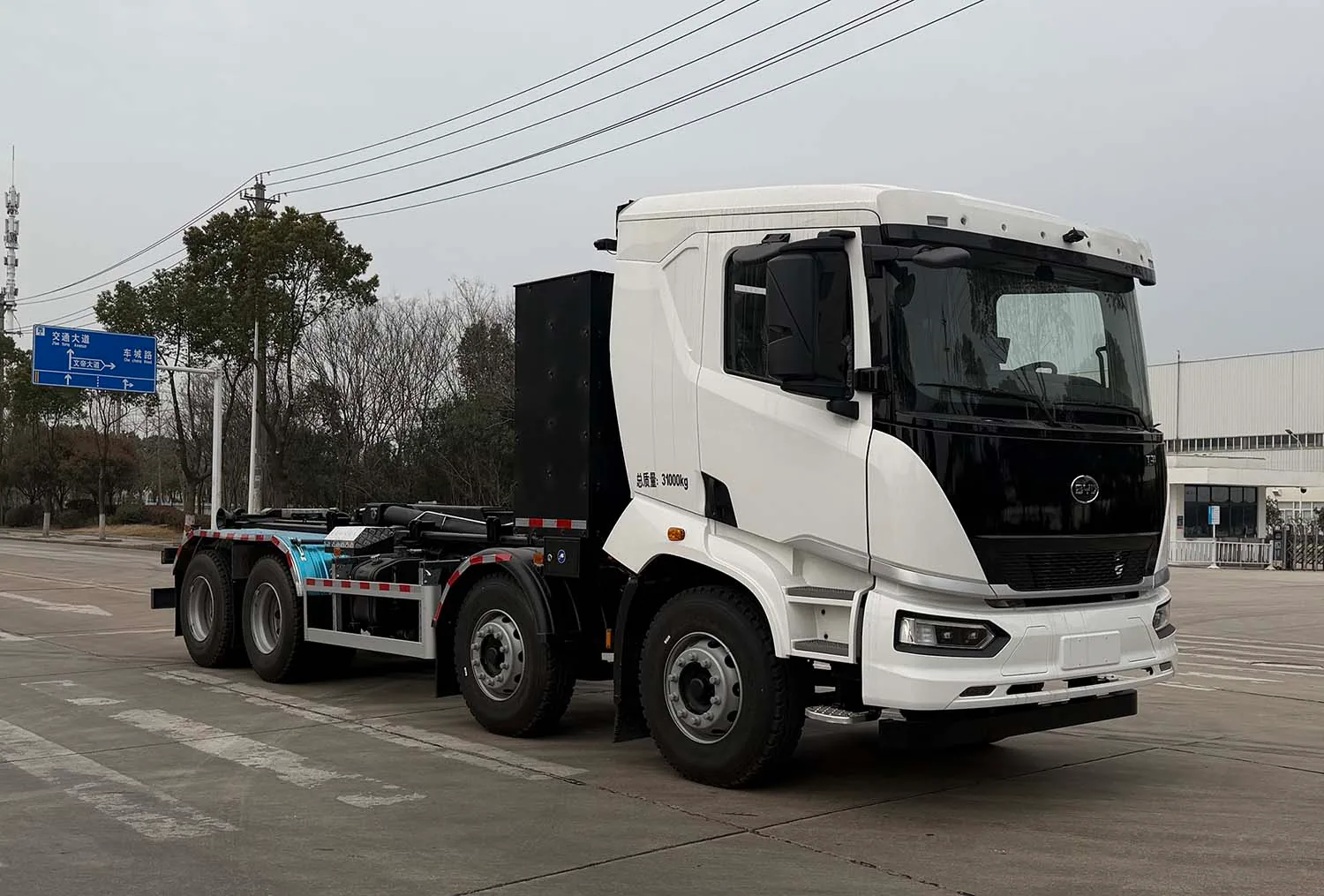

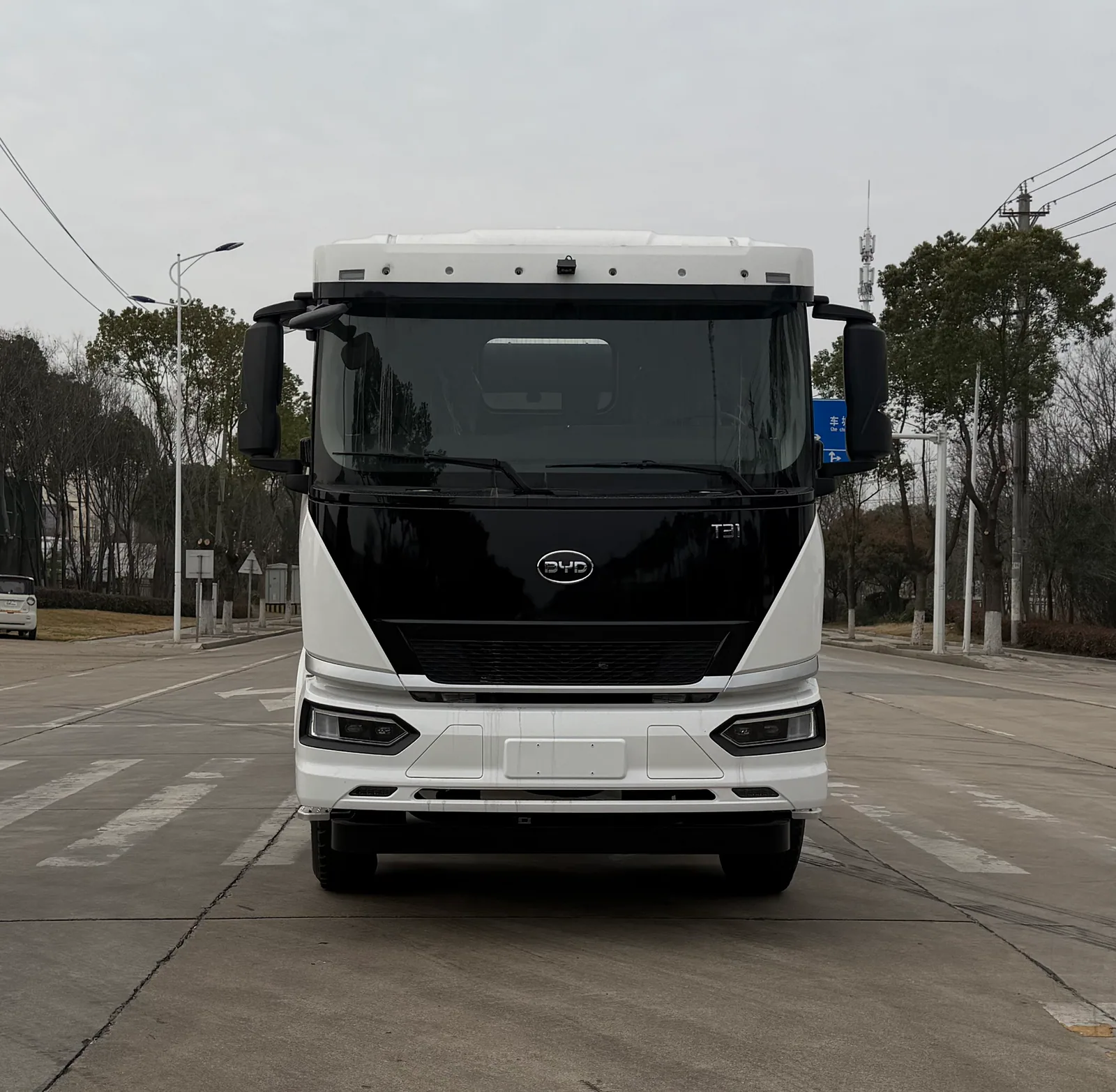

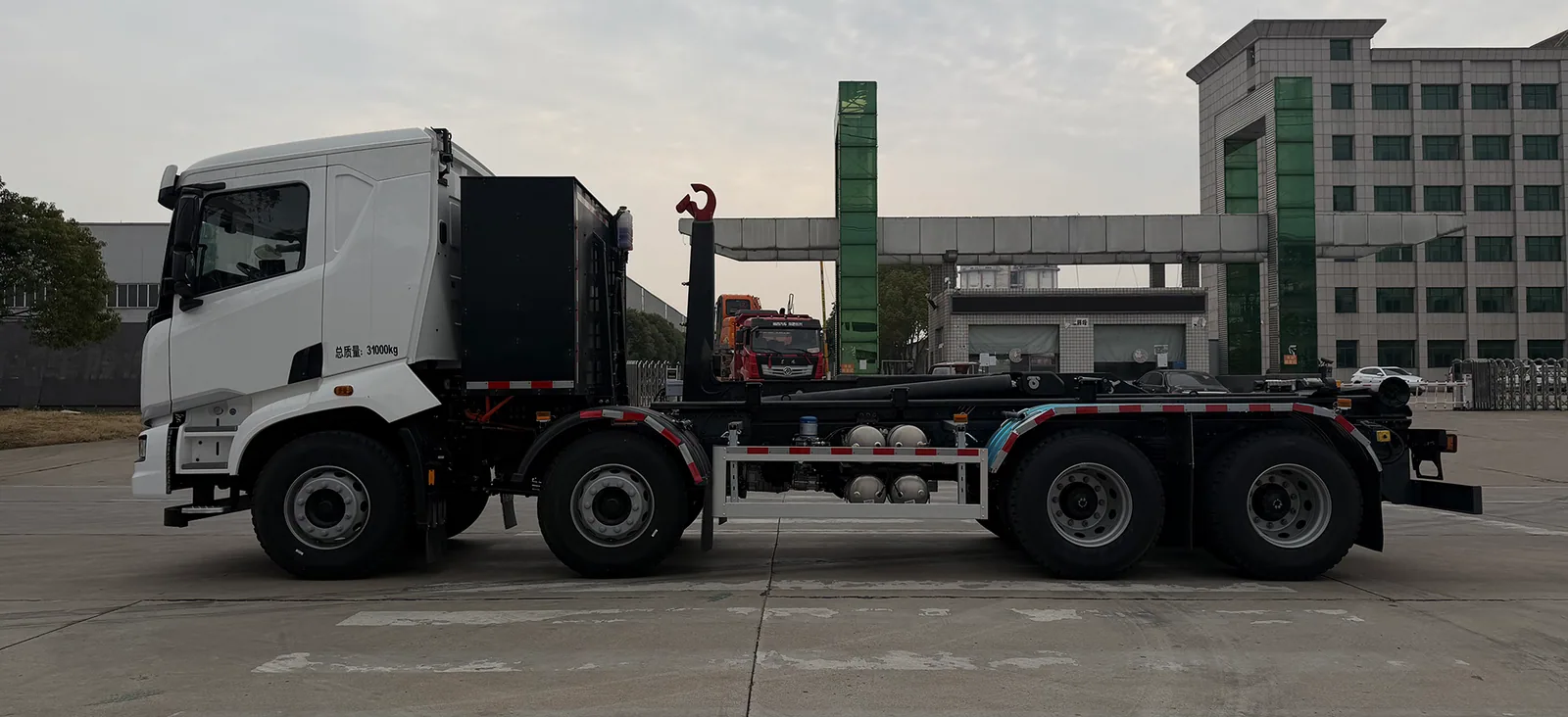

Gallery
SLG5310ZXXEVY
in detail.
Multi-angle reference photography documents the working body, cab integration and exterior layout for configuration review.
Engineering & manufacturing
Designed, validated and built as one vehicle.
Shaolin combines vehicle styling and integration, electronic-control development, vehicle and component validation, and five core workshops. Digital PLM, MES, ERP, QMS, WMS and DMS systems support an ISO 9001 quality process from design through delivery.
560,000 m²production footprint
20,000+equipment sets
10,000+delivery capability
490authorized IP rights
Integrated vehicle design
Styling, vehicle layout, engineering data and concurrent engineering are coordinated as one development workflow.
Vehicle & component validation
Durability, economy, braking, steering, thermal, vibration, electrical and three-electric-system tests support platform verification.
Five-workshop production
Stamping, component-making, welding, painting and final assembly provide a complete vehicle manufacturing chain.
Specifications
Reference configuration
Specifications and equipment vary by market and final order. Contact HESU for homologation and configuration confirmation.
26 reference parameters organized into 6 groups.
SourceDetailed configuration sheet · SLG5310ZXXEVY
01Vehicle overview 9 parameters
- Overall dimensions
- 9830 × 2550 × 3320 mm
- Wheelbase
- 2000+3400+1400 mm
- Chassis model
- BYD1310C2BEVC5
- Maximum gross weight
- 31000 kg
- Rated load capacity
- 15570 kg
- Maximum speed
- 89 km/h
- Battery capacity
- 348 kWh
- Energy type
- Pure electric
- Rated passenger capacity
- 2 People
02Vehicle specifications 4 parameters
- Overall dimensions
- 9830×2550×3320 mm
- Curb Weight
- 15300 kg
- Approach Angle/Departure Angle
- 14/18°
- Constant-speed range
- 330 km
03Chassis configuration 4 parameters
- Motor Model
- TZ365XSD1
- Peak Power
- 370 kW
- Peak Torque
- 2500 N·m
- Battery Type
- Lithium iron phosphate
04Operational performance 6 parameters
- Packing operation time
- 60 s
- Unloading Operation Time
- 60 s
- Unloading Cycle Time
- 110 s
- External Import Width
- 1070 mm
- Rear Support Method
- Rear Roller Support
- Horizontal Travel Distance of the Swing Arm
- 1100 mm
05Hydraulic system 2 parameters
- Style
- Open-loop, centralized electro-hydraulic control
- Relief Pressure
- 30 MPa
06Optional feature 1 parameters
- ETC On-Board Units with Direct Power Supply
- Available
