Longer-route electric capability
The 256.13 kWh battery supports a published 450 km constant-speed reference range.
All products
Pure-electric intercity bus
SLG6940EVG1
A 9.4-metre right-hand-drive electric bus for demanding regional routes
14
Overview
A 9.4-metre right-hand-drive electric bus for demanding regional routes
SLG6940EVG1 is a 9.4-metre pure-electric passenger bus configured for Kenya and right-hand-drive operation. A 256.13 kWh battery, 450 km constant-speed reference range, full air suspension and 69-person capacity support urban–rural and regional passenger transport.
01
Overall dimensions
9375 × 2530 × 3280 mm
02
Wheelbase
4900 mm
03
Rated passenger capacity
69 / 39 seats
04
Maximum gross weight
13500 kg
05
Maximum speed
79 km/h
06
Constant-speed range
450 km at 40 km/h
07
Rated/peak motor power
105/230 kW
08
Battery capacity
256.13 kWh
Highlights
Regional-road durability
Monocoque construction, full air suspension, 20% climbing capability and 196 mm ground clearance suit varied road conditions.
Right-hand-drive passenger layout
The Kenya configuration combines 69-person capacity, right-hand drive, an emergency rear door and route-display equipment.
Gallery
SLG6940EVG1
in detail.

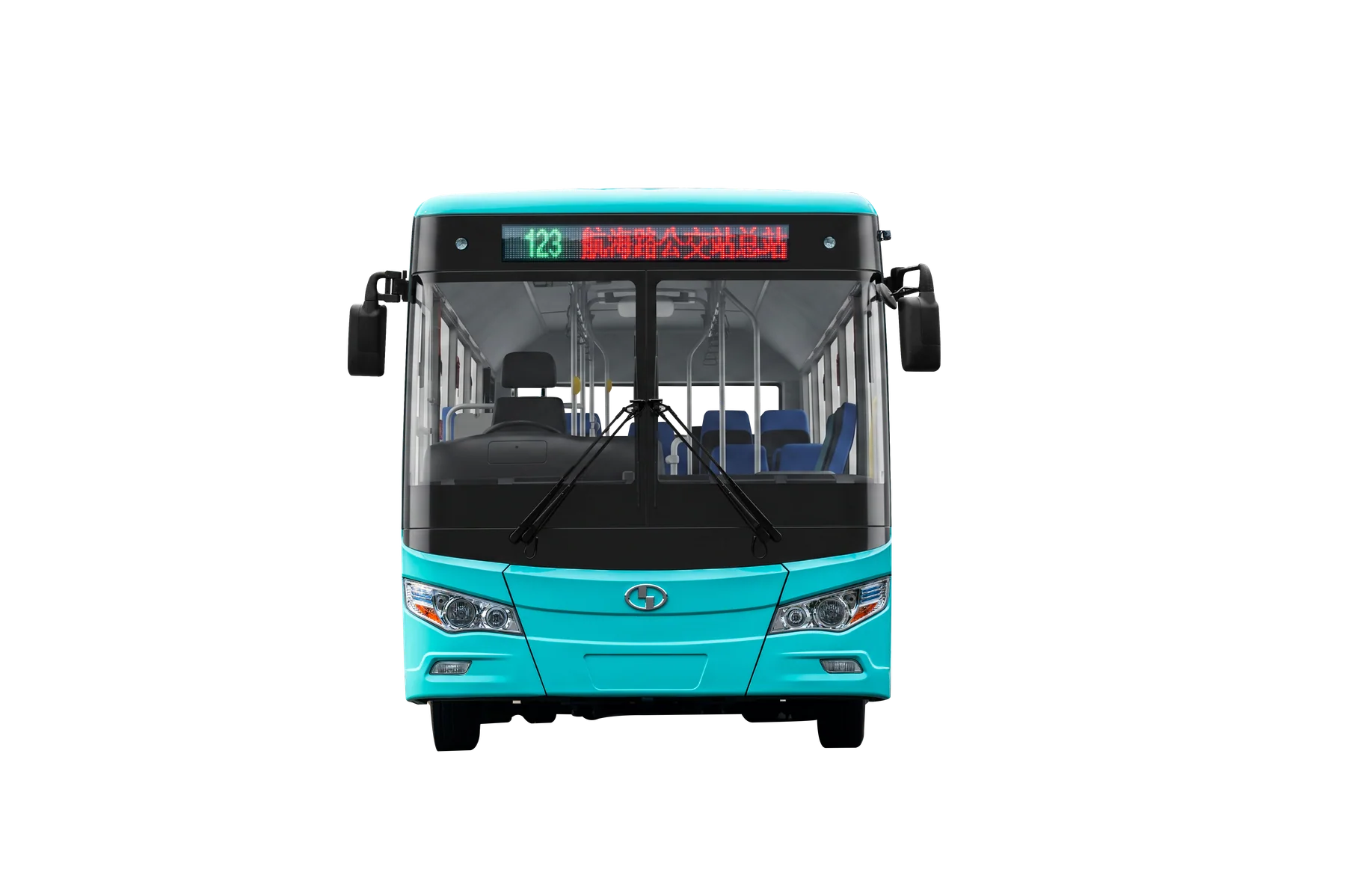

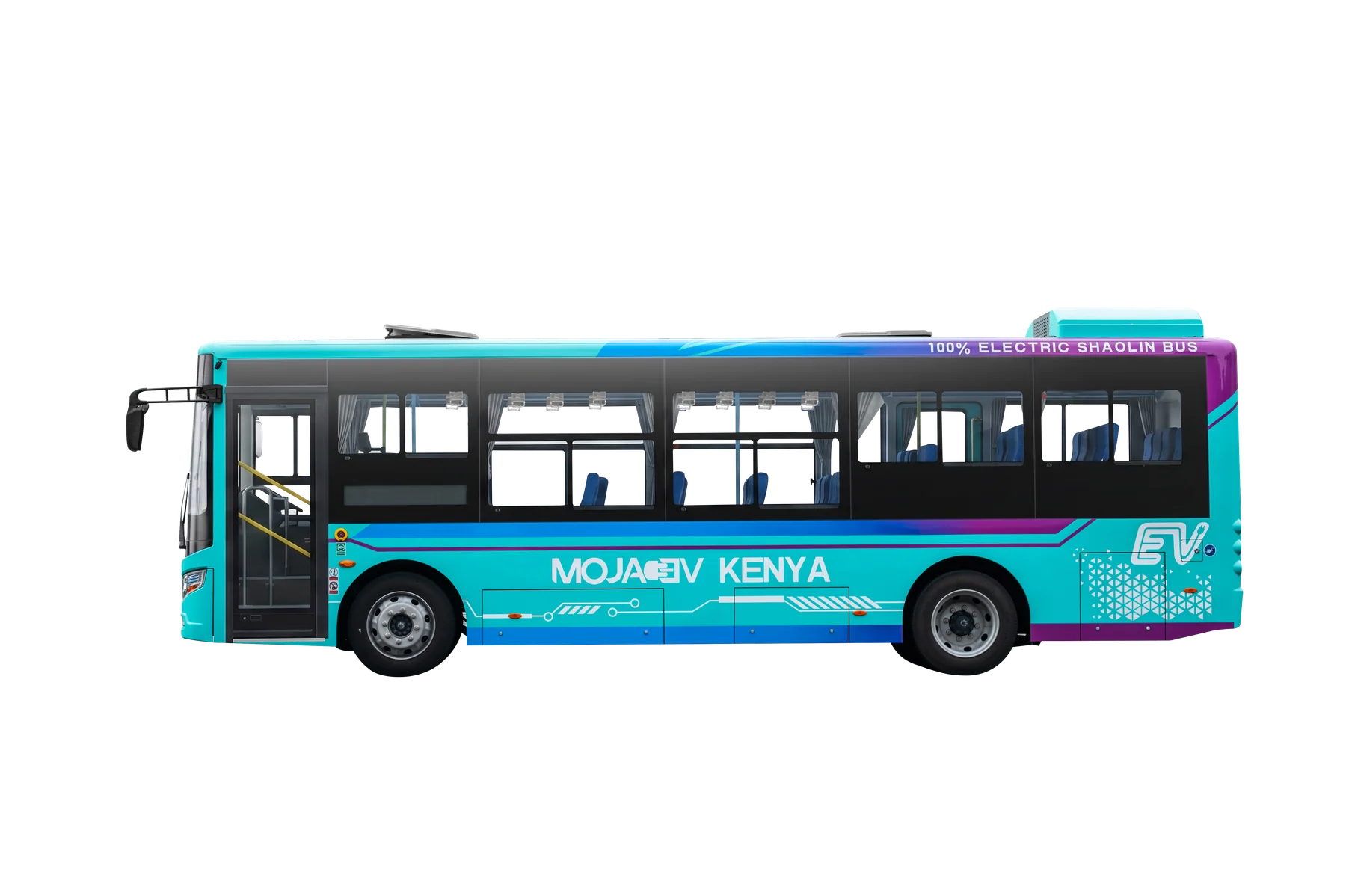

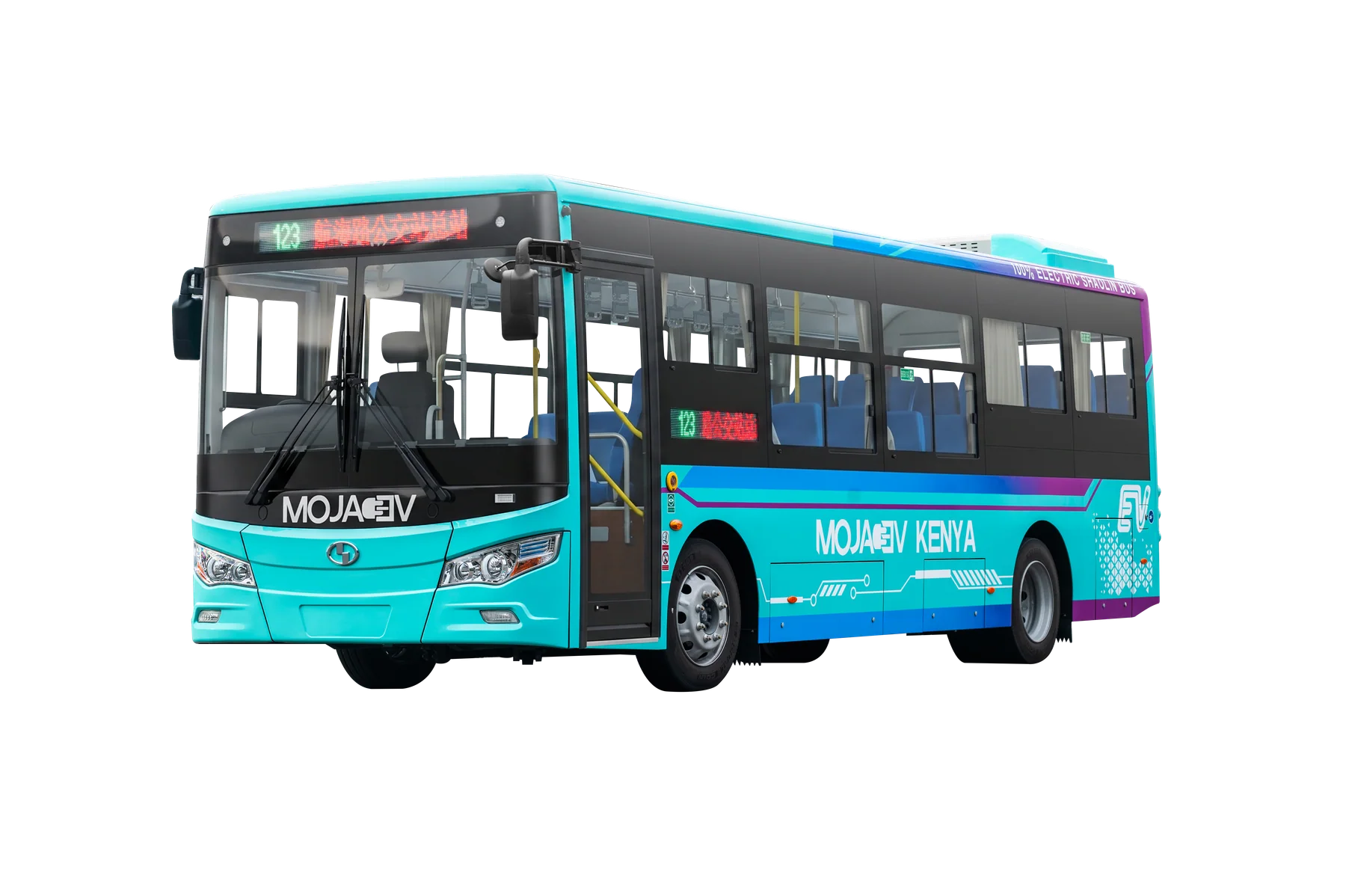

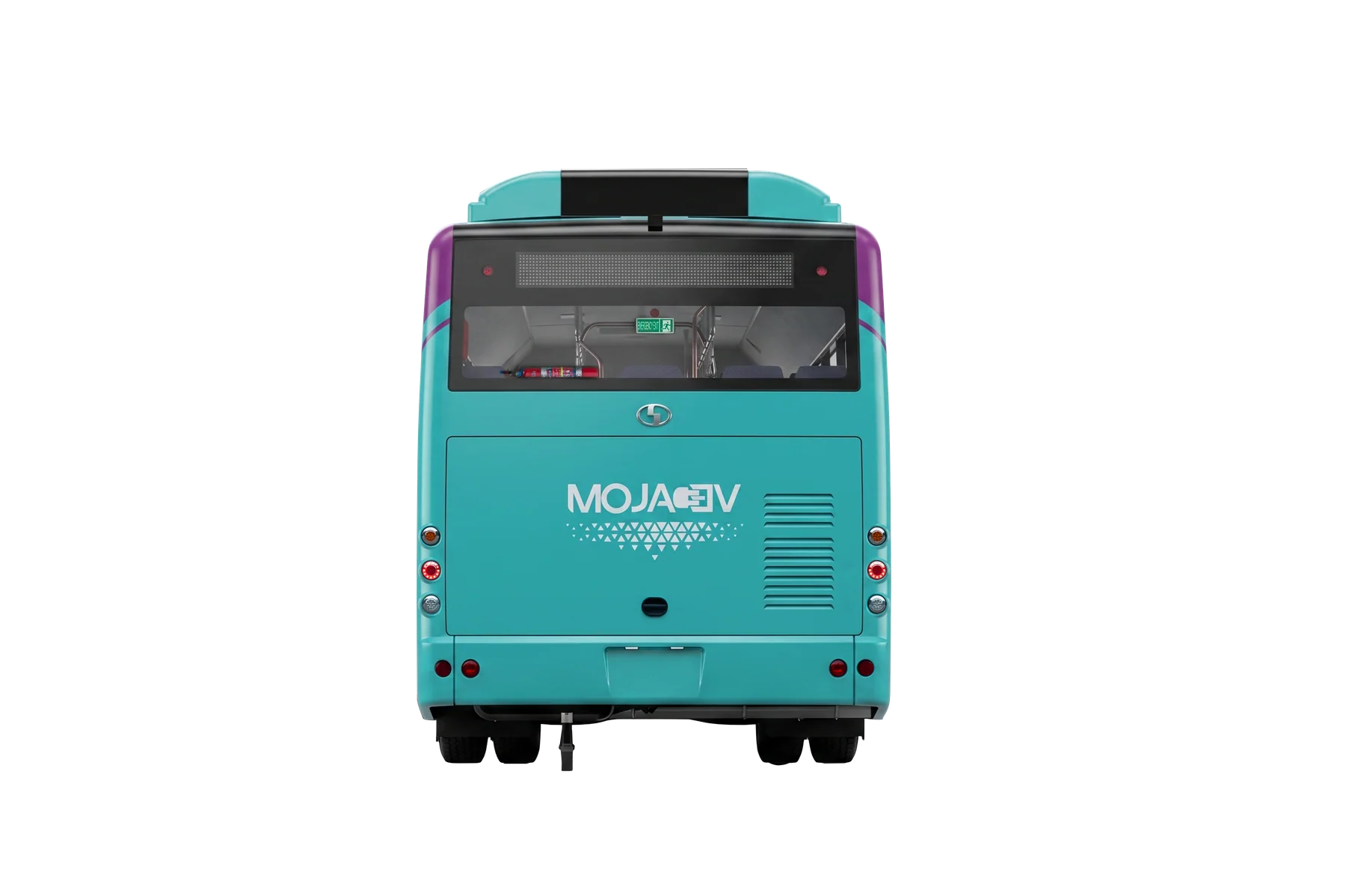

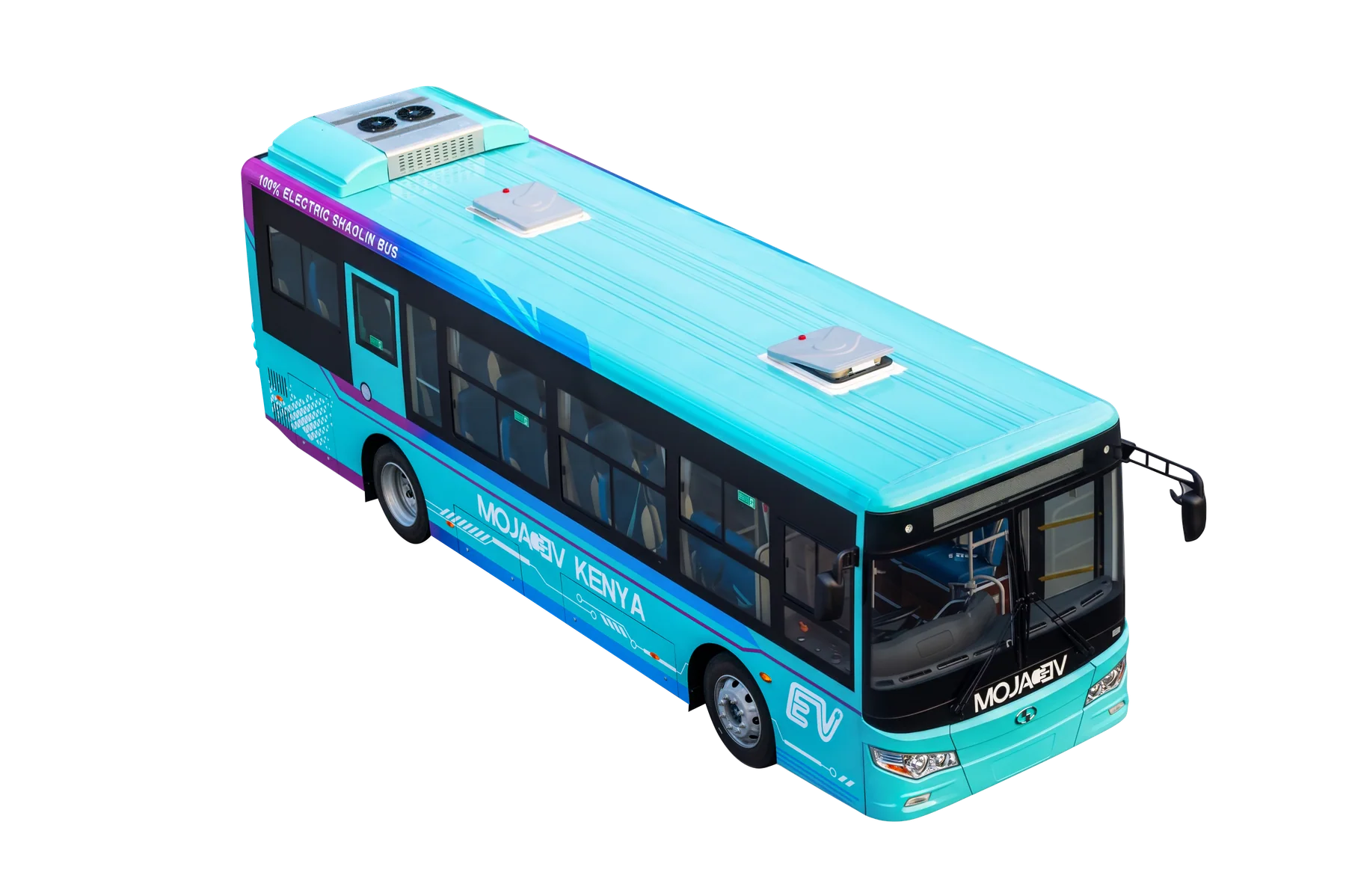

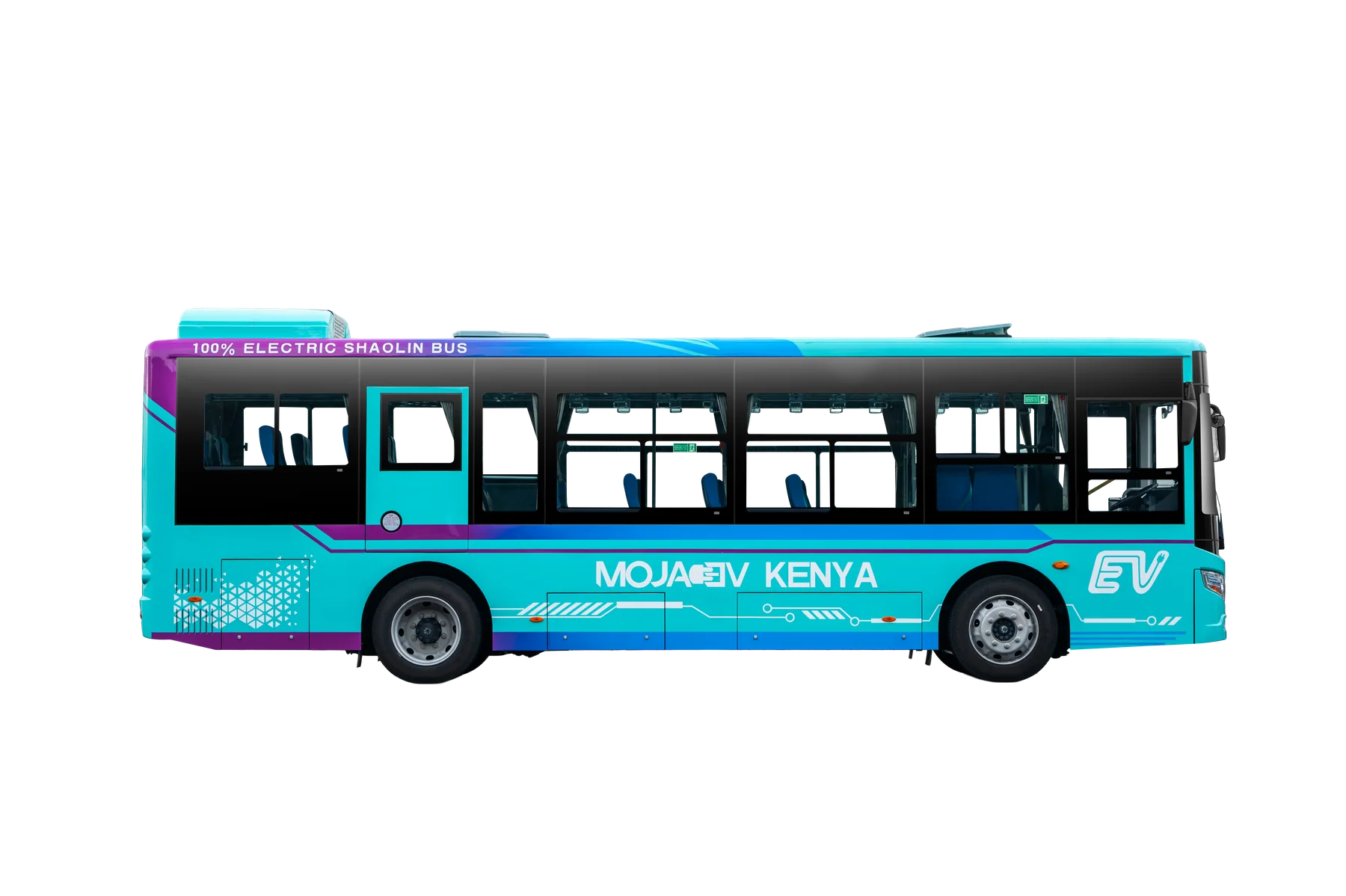

Studio views document the Kenya livery, right-hand-drive front layout, body sides, rear and roof equipment.
Engineering & manufacturing
Designed, validated and built as one vehicle.
Shaolin combines vehicle styling and integration, electronic-control development, vehicle and component validation, and five core workshops. Digital PLM, MES, ERP, QMS, WMS and DMS systems support an ISO 9001 quality process from design through delivery.
560,000 m²production footprint
20,000+equipment sets
10,000+delivery capability
490authorized IP rights
Integrated vehicle design
Styling, vehicle layout, engineering data and concurrent engineering are coordinated as one development workflow.
Vehicle & component validation
Durability, economy, braking, steering, thermal, vibration, electrical and three-electric-system tests support platform verification.
Five-workshop production
Stamping, component-making, welding, painting and final assembly provide a complete vehicle manufacturing chain.
Specifications
Reference configuration
Specifications and equipment vary by market and final order. Contact HESU for homologation and configuration confirmation.
50 reference parameters organized into 5 groups.
SourceSLG6940EVG1 product parameter configuration · Kenya
01Vehicle overview 17 parameters
- Sales region
- Kenya
- Driver position
- Right-hand drive
- Vehicle type
- Pure-electric passenger bus
- Energy type
- Pure electric
- Body structure
- Monocoque, two-step entrance
- Overall dimensions
- 9375 × 2530 × 3280 mm
- Wheelbase
- 4900 mm
- Curb weight
- 8800 kg
- Maximum gross weight
- 13500 kg
- Approach/departure angle
- 12° / 10°
- Maximum climbing gradient
- ≥20%
- Minimum ground clearance
- 196 mm
- First-step height
- 350 mm
- Rated passenger capacity
- 69 / 39 seats
- Maximum speed
- 79 km/h
- Constant-speed range
- 450 km at 40 km/h
- Drive type
- Rear-mounted rear-wheel drive
02Powertrain & chassis 14 parameters
- Drive motor type
- Electric drive axle / permanent-magnet synchronous motor / Jing-Jin Electric
- Rated/peak motor power
- 105/230 kW
- Rated/peak torque
- 335/650 N·m
- Traction battery type
- Lithium iron phosphate
- Battery capacity
- 256.13 kWh
- Front/rear axle capacity
- 6500/8500 kg
- Final drive ratio
- 24.47
- Wheel material
- Steel wheel
- Tire size
- 255/70R22.5
- Front/rear suspension
- 2-airbag front / 4-airbag rear suspension
- Power steering
- Electro-hydraulic power steering
- Service brake
- Air brake
- Front/rear brake
- Disc / drum
- Parking brake
- Spring-energy air brake
03Safety systems 1 parameters
- ABS
- Configured
04Electrical equipment 9 parameters
- Cooling system
- Independent traction-battery cooling system
- Integrated controller
- Five-in-one controller
- Charging interface
- Chinese-standard charging port
- Instrument display
- LCD instrument panel
- Video monitoring
- 6 cameras + 7-inch display
- Driving recorder
- GPS + 500 GB storage
- Route displays
- Front, rear and side LED displays
- Defroster
- Natural-air defrosting
- GPS unit
- Configured
05Body & interior 9 parameters
- Passenger door
- Pneumatic inward-swinging passenger door
- Emergency door
- Right rear emergency door
- Windscreen
- Three-piece windscreen
- Side windows
- Built-in sliding windows (F-green glass)
- Rear-view mirrors
- Left-long/right-short mirrors
- Driver seat
- Mechanical suspension seat
- Passenger seats
- Adjustable leather seats with aisle armrests
- Safety roof hatch
- 2 safety roof hatches
- Floor
- PVC floor with wood-grain anti-slip wear-resistant covering
