Accessible low-floor layout
A wide entrance area and available wheelchair boarding equipment make frequent urban boarding easier.
All products
Low-floor pure-electric city bus
SLG6811EVG1
An 8.1-metre low-floor bus for urban feeder and community routes
13
Overview
An 8.1-metre low-floor bus for urban feeder and community routes
SLG6811EVG1 is an 8.1-metre low-floor pure-electric city bus designed for urban feeder and community transport. A wide low-floor passenger area, 72-person maximum capacity, air suspension and a 160.5 kWh battery support accessible, efficient daily service.
01
Overall dimensions
8145 × 2420 × 3360 mm
02
Wheelbase
5300 mm
03
Rated passenger capacity
72 / 14–24
04
Maximum gross weight
13300 kg
05
Maximum speed
69 km/h
06
Rated/peak motor power
110/210 kW
07
Battery capacity
160.5 kWh
08
Body structure
Monocoque, low floor
Highlights
Urban electric efficiency
The 110/210 kW electric drive axle, 160.5 kWh battery and energy-recovery system are configured for stop-and-go routes.
Stable, maintainable platform
Monocoque construction, front and rear air suspension, disc brakes and maintenance-free axles support everyday fleet operation.
Gallery
SLG6811EVG1
in detail.

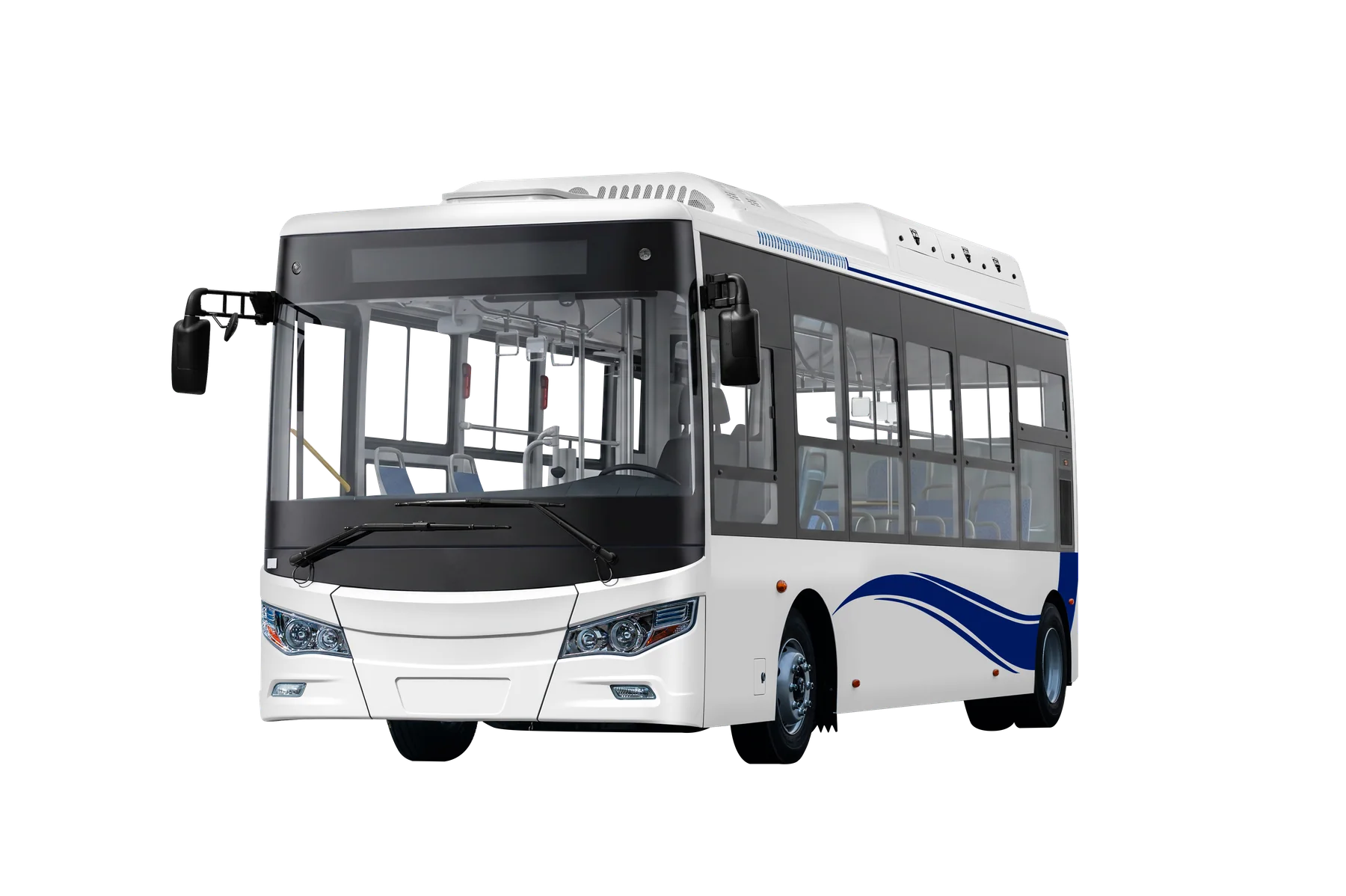

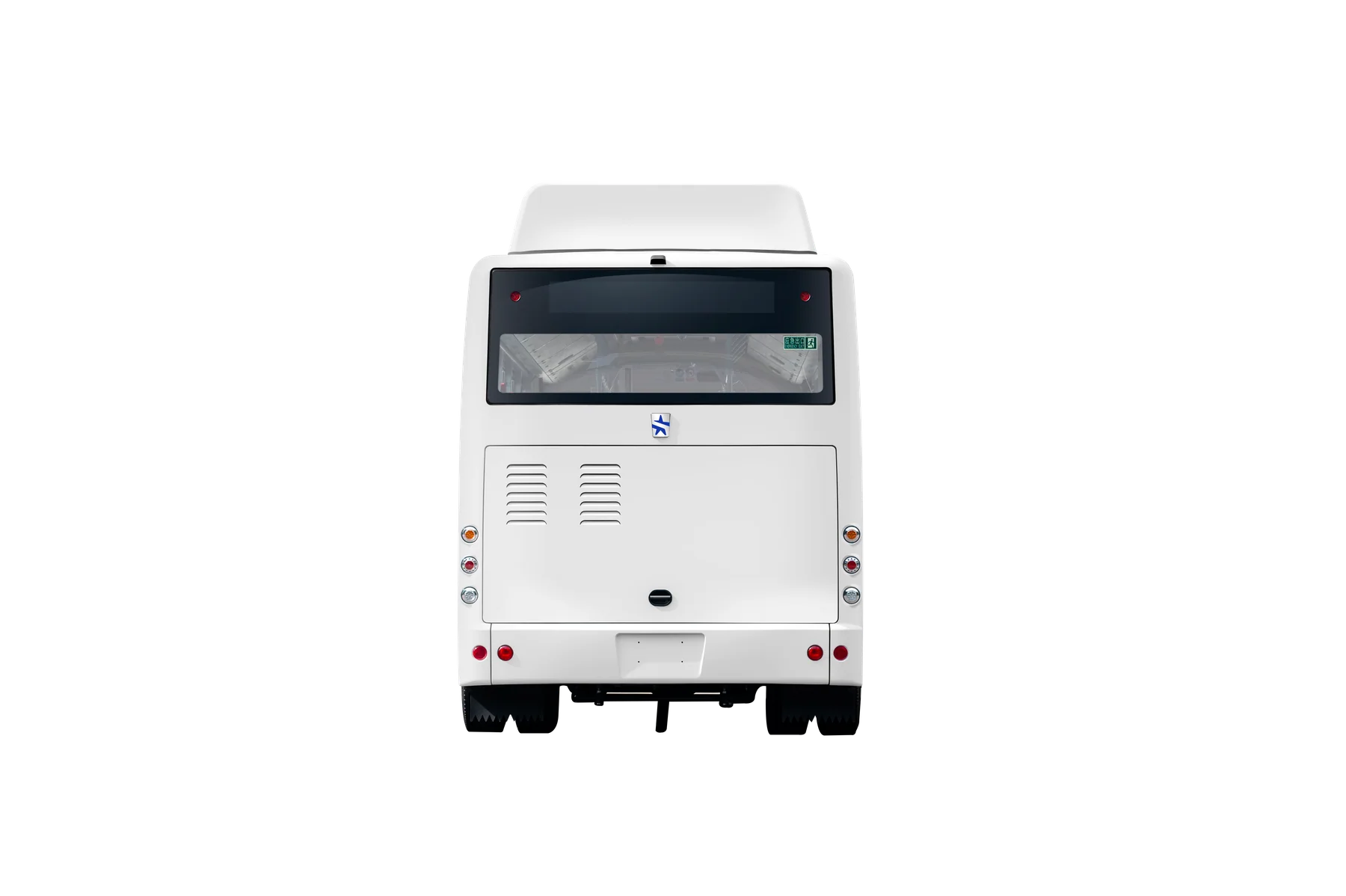

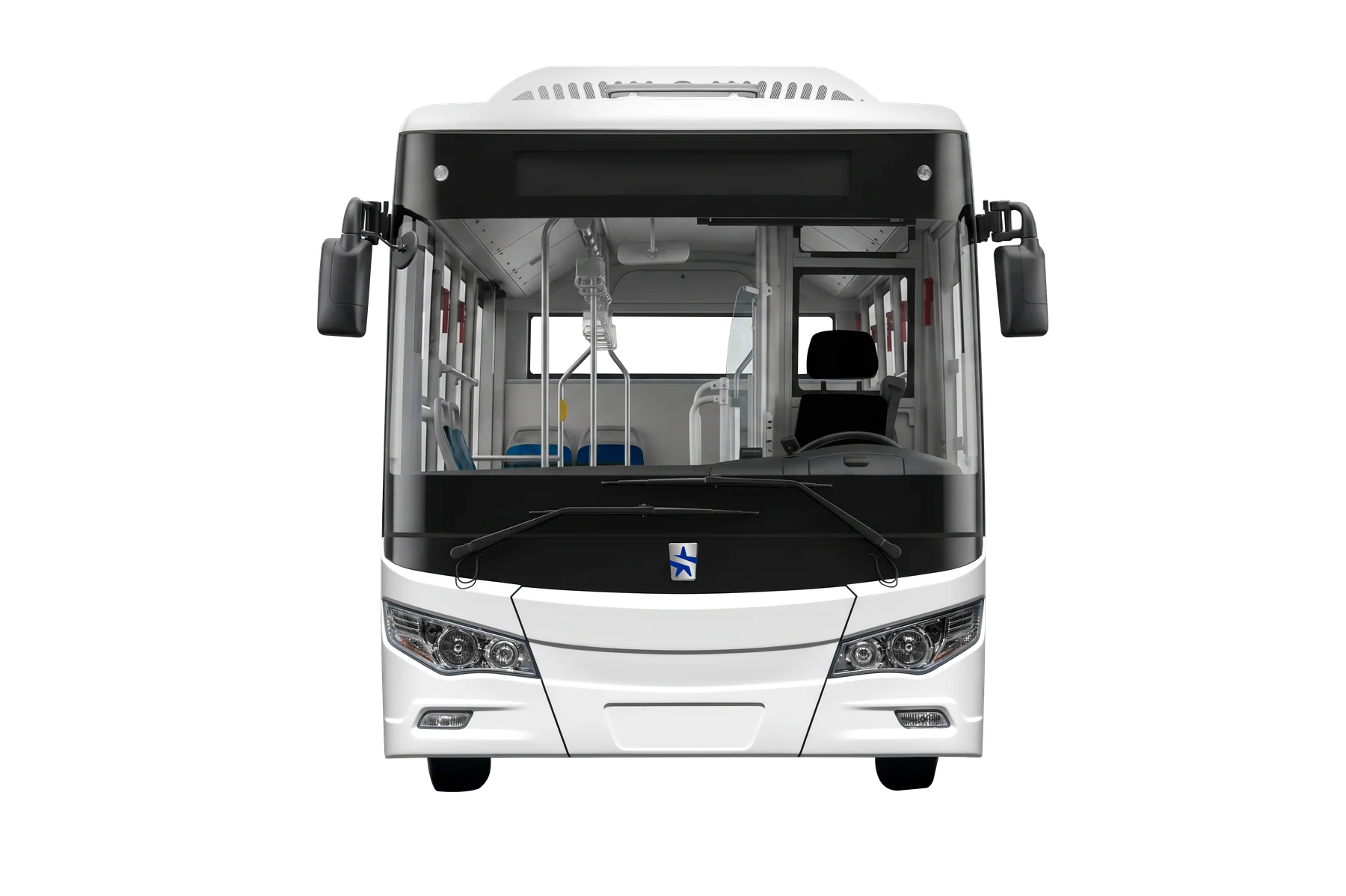

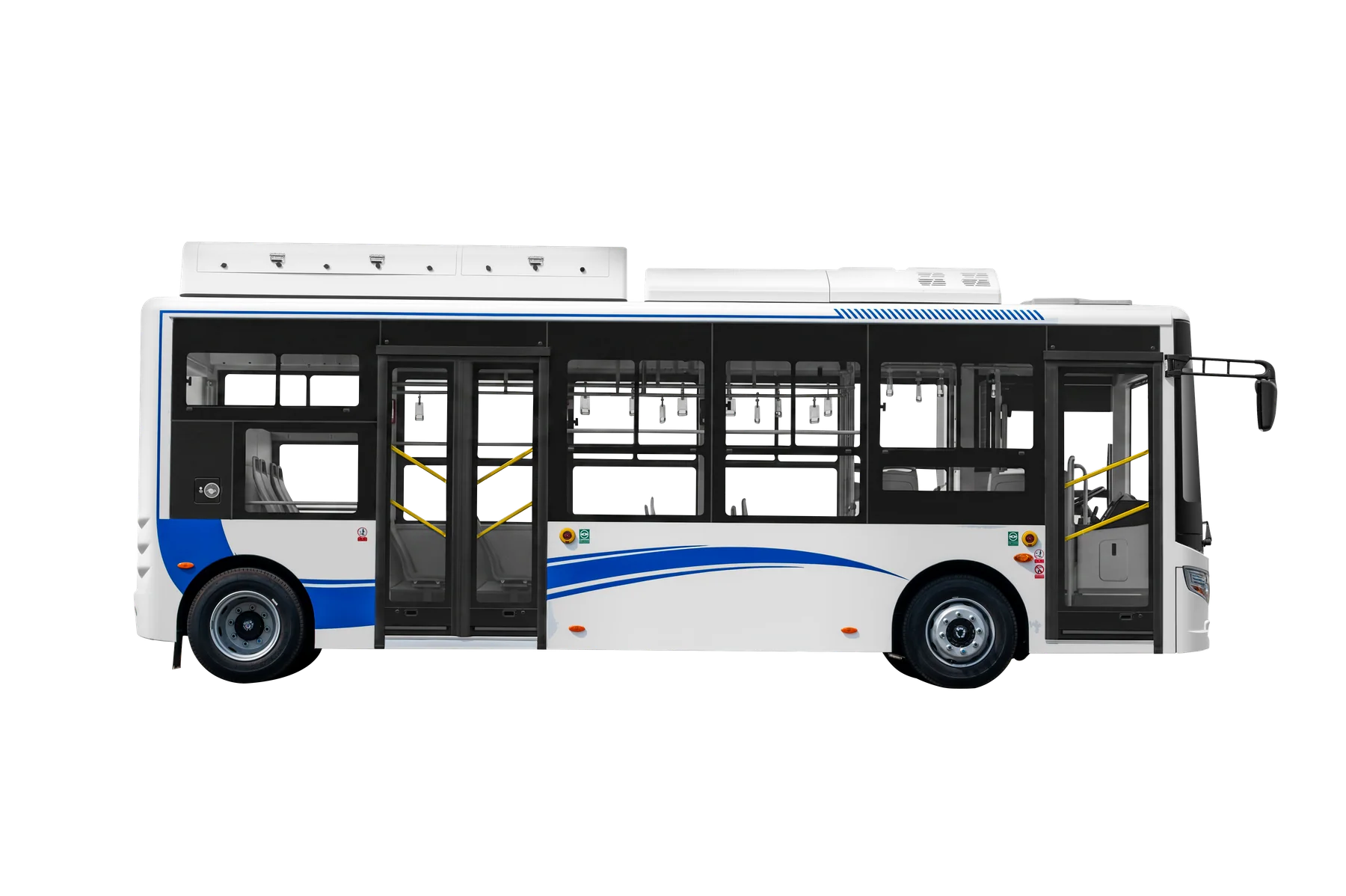

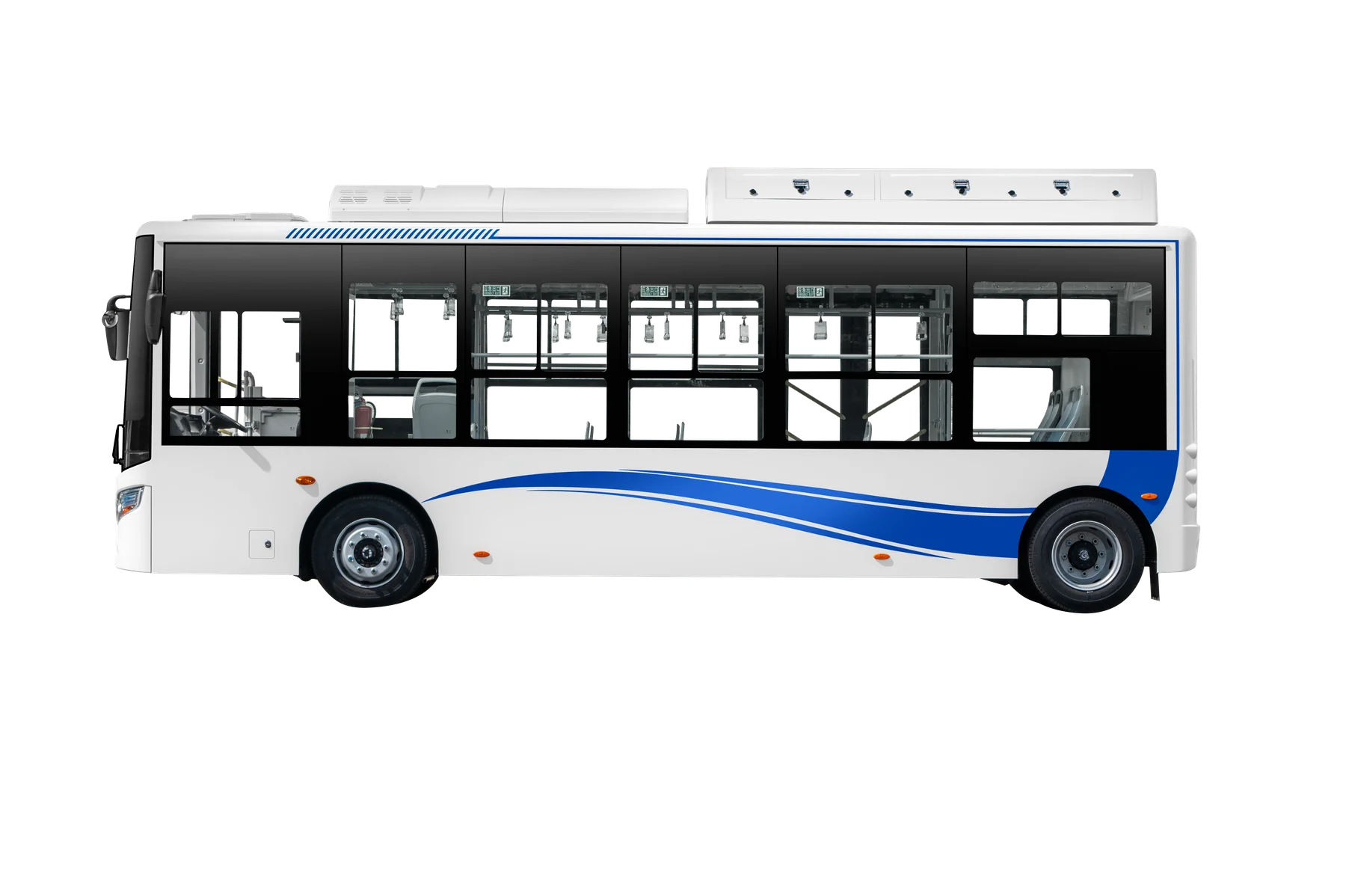

Multi-angle studio photography highlights the low-floor doorway, city-bus proportions and passenger glazing.
Engineering & manufacturing
Designed, validated and built as one vehicle.
Shaolin combines vehicle styling and integration, electronic-control development, vehicle and component validation, and five core workshops. Digital PLM, MES, ERP, QMS, WMS and DMS systems support an ISO 9001 quality process from design through delivery.
560,000 m²production footprint
20,000+equipment sets
10,000+delivery capability
490authorized IP rights
Integrated vehicle design
Styling, vehicle layout, engineering data and concurrent engineering are coordinated as one development workflow.
Vehicle & component validation
Durability, economy, braking, steering, thermal, vibration, electrical and three-electric-system tests support platform verification.
Five-workshop production
Stamping, component-making, welding, painting and final assembly provide a complete vehicle manufacturing chain.
Specifications
Reference configuration
Specifications and equipment vary by market and final order. Contact HESU for homologation and configuration confirmation.
40 reference parameters organized into 5 groups.
SourceSLG6811EVG1 product parameter configuration
01Vehicle overview 12 parameters
- Sales region
- China
- Driver position
- Left-hand drive
- Vehicle type
- Low-floor pure-electric city bus
- Energy type
- Pure electric
- Body structure
- Monocoque, low-floor entrance
- Overall dimensions
- 8145 × 2420 × 3360 mm
- Wheelbase
- 5300 mm
- Curb weight
- 7600 kg
- Maximum gross weight
- 13300 kg
- Rated passenger capacity
- 72 / 14–24
- Maximum speed
- 69 km/h
- Drive type
- Rear-mounted rear-wheel drive
02Powertrain & chassis 13 parameters
- Drive motor type
- Electric drive rear axle
- Rated/peak motor power
- 110/210 kW
- Peak torque
- 420 N·m
- Battery capacity
- 160.5 kWh
- Front/rear axle
- 5.5 t front / 8.5 t rear, maintenance-free
- Final drive ratio
- 27.752
- Wheel material
- Steel wheel
- Tire size
- 265/70R19.5
- Front/rear suspension
- Four-link air suspension, 2 airbags front and rear, dampers and anti-roll bars
- Power steering
- Electro-hydraulic power steering
- Service brake
- Air brake
- Front/rear brake
- Disc / disc
- Parking brake
- EPB + spring-energy air brake
03Safety systems 1 parameters
- ABS
- Configured
04Electrical equipment 6 parameters
- Air-conditioning system
- Integrated heating and cooling air conditioner
- Instrument display
- Full LCD instrument panel
- Vehicle communications
- Full-vehicle CAN communication
- Video monitoring
- 6-camera monitoring system
- Driving recorder
- Configured, 1 TB storage
- Defroster
- PTC electric defrosting + driver foot heating
05Body & interior 8 parameters
- Passenger door
- Front single / rear double aluminium inward-swinging doors
- Driver seat
- Air-suspension seat
- Passenger seats
- Injection-moulded seats
- Side windows
- Built-in sliding windows (F-green glass)
- Rear-view mirrors
- Manual left-short/right-long rod mirrors
- Safety roof hatch
- 1 electric ventilating roof hatch
- Floor
- PVC floor with wear-resistant covering
- Wheelchair accessibility system
- Optional manual boarding ramp, wheelchair restraint and ECAS kneeling
